Reverse Switches

Reverse Switches

The reverse switches listed on this page are wired directly between the controller and the motor and are designed for use with brushed motor controllers that do not have a built-in reverse function. For controllers with a built-in reverse function these switches could still be used however their stop or neutral positions will not function and the motor will run forward when the switch is in the forward and stop or neutral positions. For controllers with a built-in reverse function a smaller on/off switch could be used for the reverse switch such as the many of the switches listed on our Power Switches Page and Handlebar Switches Page.

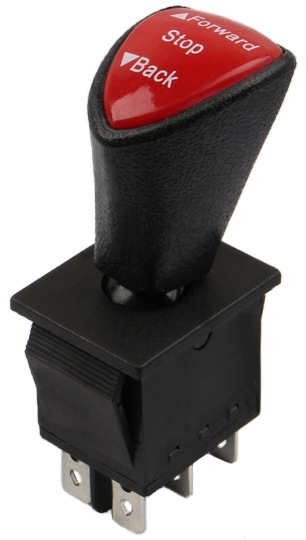

Forward and Reverse Switch

Light Duty Motor Reversing Switch
Light-duty motor reversing switch for children's electric ATVs, go karts and other small electric ride-on vehicles. Rated for direct use with motors up to 350 Watts. Can be used with larger motors if used in conjunction with a reverse contactor. The dimensions of this switch including the selector knob are 3-1/8" high x 1" wide x 1-1/4" deep. Three position shift lever has forward, stop, and back positions that stay in the position it is placed in until moved to another position. Two self-locking mounting tabs with tolerance compensation ribs secure it to the panel opening. 1/4" push-on wiring terminals. This is the OEM reverse switch found on many children's ride-on electric vehicle. Wiring directions and mounting information for this switch are available below.
Item # SWT-710
Wiring Diagram:
PDF
$9.95

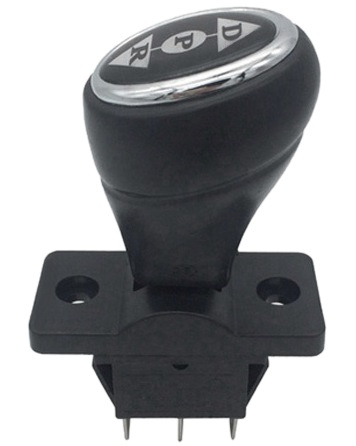

Light Duty Reverse Switch

Light Duty Motor Reversing Switch
Light-duty motor reversing switch for children's electric ATVs, go karts and other small electric ride-on vehicles. Rated for direct use with motors up to 350 Watts. Can be used with larger motors if used in conjunction with a reverse contactor. The dimensions of this switch including the selector knob are 3-1/8" high x 1" wide x 1-1/4" deep. Three position shift lever has drive (D), park (P), and reverse (R) positions that stay in the position it is placed in until moved to another position. Two self-locking mounting tabs with tolerance compensation ribs secure it to the panel opening plus a front bezel that is bolted to the panel to create an extra strong and secure attachment. 1/4" push-on wiring terminals. This is the OEM reverse switch found on many children's ride-on electric vehicle. Wiring directions and mounting information for this switch are available below.
Item # SWT-712
Wiring Diagram:
PDF
$9.95

Rotary Reverse Switch

Heavy Duty Motor Reversing Switch
Heavy-duty motor reversing switch for electric scooters, bikes, ATVs, go karts and other small electric vehicles. The dimensions of this switch including the selector knob are 3" high x 2-1/4" wide x 2-3/4" deep. Three position switch has reverse (left), neutral (center), and forward (right) positions. Selector knob is removable for panel mount installation. Selector knob shaft has a 6mm outside diameter. Mounting tabs have a 5mm space between teeth and work with a #10 or 5mm screw or bolt. Wire terminal mounting screws are 4mm and work with #8 ring terminals. This is the OEM reverse switch found on many four wheel electric quads and all terrain vehicles. Rated for DC motors 2200 Watts and under. Wiring directions and mounting information for this switch are available below.
Item # SWT-715
Wiring Diagram:
PDF
$14.95

Reverse Switch with Red Handle

Heavy Duty Motor Reversing Switch
Heavy-duty motor reversing switch for electric cars, golf carts, ATVs, quads, go-karts, rickshaws, small work trucks and other small to medium size electric vehicles. The dimensions of this switch including the handle are 5" high x 3" wide x 4" deep. Three position switch has reverse (left), neutral (center), and forward (right) positions. Selector handle is removable for panel mount installation. Wire terminal mounting screws are 5mm and work with #10 ring terminals. This is the same type of forward/reverse switch found on many electric golf carts, rickshaws, and work trucks. Rated for DC motors 5000 Watts and under. Wiring directions and mounting information for this switch are available below.
Item # SWT-720
Wiring Diagram:
PDF
$21.95

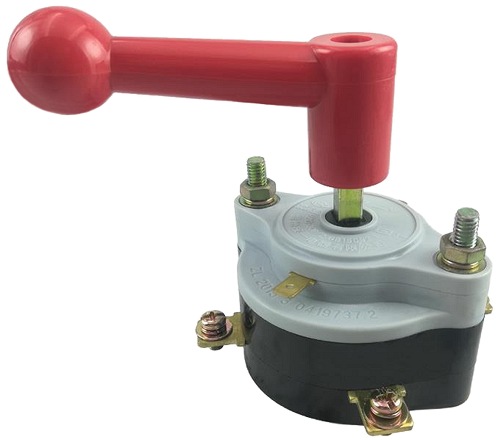

Heavy Duty Reverse Switch with Red Handle

Heavy Duty Motor Reversing Switch
Heavy-duty motor reversing switch for electric cars, golf carts, ATVs, quads, go-karts, rickshaws, small work trucks and other small to medium size electric vehicles. The dimensions of this switch including the handle are 4.75" high x 2.8" wide x 4" deep. Three position switch has reverse (left), neutral (center), and forward (right) positions. Selector handle is removable for panel mount installation. Wire terminal mounting screws are 5mm and work with #10 ring terminals. This is the same type of forward/reverse switch found on many electric golf carts, rickshaws, and work trucks. Rated for DC motors 5000 Watts and under. Wiring directions and mounting information for this switch are available below.
Item # SWT-722
Wiring Diagram:
PDF
$17.95

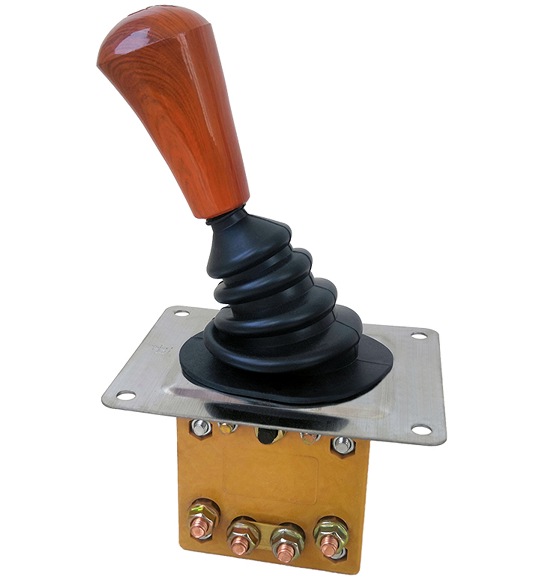

Electirc Car Reverse Switch

Heavy Duty Motor Reversing Switch with Automotive Style Shift Handle
Heavy-duty motor reversing switch for electric cars, golf carts, ATVs, quads, go-karts and other small to medium size electric vehicles. This is a full size automotive gear shift style vehicle direction switch which stands over 7-1/2" tall from top to bottom. Three position shift lever has reverse, neutral, and forward positions. Wire terminal mounting studs are 6mm. Rated Voltage 12-110V DC. Rated continuous current 85 Amps. Wiring directions for this switch are available below.
Item # SWT-728
Wiring Diagram:
PDF
$29.95

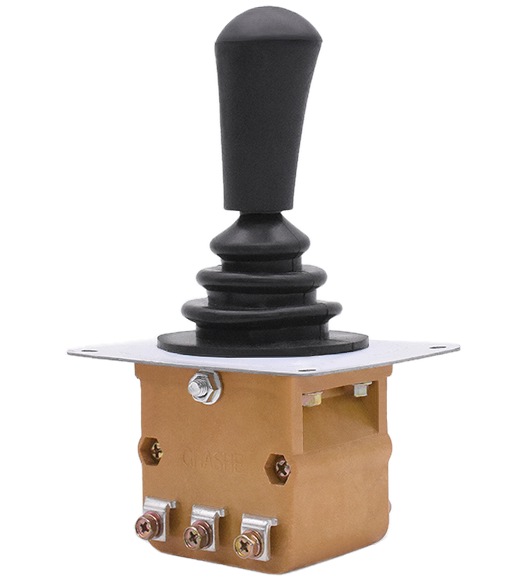

Electirc Car Reversing Handle Switch

Heavy Duty Motor Reversing Switch with Automotive Style Shift Handle
Heavy-duty motor reversing switch for electric cars, golf carts, ATVs, quads, go-karts and other small to medium size electric vehicles. This is a full size automotive gear shift style vehicle direction switch which stands over 7-1/2" tall from top to bottom. Three position shift lever has reverse, neutral, and forward positions. Wire terminal mounting studs are 6mm. Rated Voltage 12-110V DC. Rated continuous current 85 Amps. Wiring directions for this switch are available below.
Item # SWT-729
Wiring Diagram:
PDF
$29.95
Reverse Switch Mounting Hardware

Set of Two 5mm x 12mm Metric Machine Screws with Flat Washers, Lock Washers, and Nuts
(For SWT-715)
Set of two 5mm OD x 12mm long zinc plated steel pan head machine screws with flat washers, lock washers, and nuts. Recommended drill bit size is 13/64" or 5mm. For mounting reverse switch item # SWT-715 onto panels up to 1/8" thick.
Item # HDW-M5X12SET		 $0.65


Set of two 5mm x 25mm Metric Machine Screws with Flat Washers, Lock Washers, and Nuts
(For SWT-715)
Set of two 5mm OD x 25mm long zinc plated steel pan head machine screws with flat washers, lock washers, and nuts. Recommended drill bit size is 13/64" or 5mm. For mounting reverse switch item # SWT-715 onto panels up to 5/8" thick.
Item # HDW-M5X25SET		 $0.75


Set of Four 6mm x 12mm Metric Machine Screws with Flat Washers, Lock Washers, and Nuts
(For SWT-728)
Set of four 6mm OD x 12mm long zinc plated steel pan head machine screws with flat washers, lock washers, and nuts. Recommended drill bit size is 1/4" or 6mm. For mounting reverse switch item # SWT-728 onto panels up to 1/8" thick.
Item # HDW-M6X12SET		 $1.49


Set of four 6mm x 25mm Metric Machine Screws with Flat Washers, Lock Washers, and Nuts
(For SWT-728)
Set of four 6mm OD x 25mm long zinc plated steel pan head machine screws with flat washers, lock washers, and nuts. Recommended drill bit size is 1/4" or 6mm. For mounting reverse switch item # SWT-728 onto panels up to 5/8" thick.
Item # HDW-M6X25SET		 $1.59
Reverse Switch Wiring Terminals

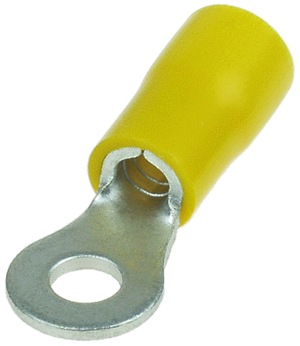

Yellow Insulated #8 Ring Terminal Connector for 10-12 Gauge Wire
(For SWT-715)
Crimp-on insulated ring terminal connector for 10-12 gauge wire. Ring has 4.3mm ID and accepts #8 or 4mm stud, machine screw, or bolt.
Item # CNX-15		 $.10

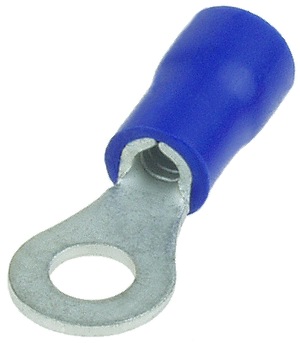

Blue Insulated #8 Ring Terminal Connector for 14-16 Gauge Wire
(For SWT-715)
Crimp-on insulated hook terminal connector for 14-16 gauge wire. Ring has 4.3mm ID and accepts #8 or 4mm stud, machine screw, or bolt.
Item # CNX-25		 $.10

Yellow Insulated #10 Ring Terminal Connector for 10-12 Gauge Wire
(For SWT-720)
Crimp-on insulated ring terminal connector for 12-10 gauge wire. Ring has 5.3mm ID and accepts #10 or 5mm stud, machine screw, or bolt.
Item # CNX-16		 $.10

Blue Insulated #10 Ring Terminal Connector for 14-16 Gauge Wire
(For SWT-720)
Crimp-on insulated ring terminal connector for 16-14 gauge wire. Ring has 5.3mm ID and accepts 5mm or #10 stud, machine screw, or bolt.
Item # CNX-26		 $.10

Yellow Insulated 1/4" Ring Terminal Connector for 10-12 Gauge Wire
(For SWT-728)
Crimp-on insulated ring terminal connector for 12-10 gauge wire. Ring has 6.4mm ID and accepts 1/4" or 6mm stud, machine screw, or bolt.
Item # CNX-17		 $.10

Blue Insulated 1/4" Ring Terminal Connector for 14-16 Gauge Wire
(For SWT-728)
Crimp-on insulated ring terminal connector for 16-14 gauge wire. Ring has 6.4mm ID and accepts 1/4" or 6mm stud, machine screw, or bolt.
Item # CNX-27		 $.10
