Lighting > DC-DC Voltage Converters

DC-DC Voltage Converters

Browse for Voltage converters by vehicle make and model.


24-72 Volt DC to 12 Volt DC 10A DC-DC Voltage Converter
Electric scooter, moped, and e-bike DC to DC converter. Converts 24V, 36V, 48V, 60V, or 72V DC down to 12 Volts DC. Maximum output current 10 Amps. Runs 12 Volt DC lights, horns, and accessories off of higher DC Voltages. Dimensions of the case not including mounting tabs are 3-5/8" long x 2" wide x 1-1/4" high. Mounting tabs are 1/2" long and there are mounting tabs on two sides of the case. Mating connector item # CNX-52

Item # CVT-7212

Wiring Diagram:
PDF
$19.95

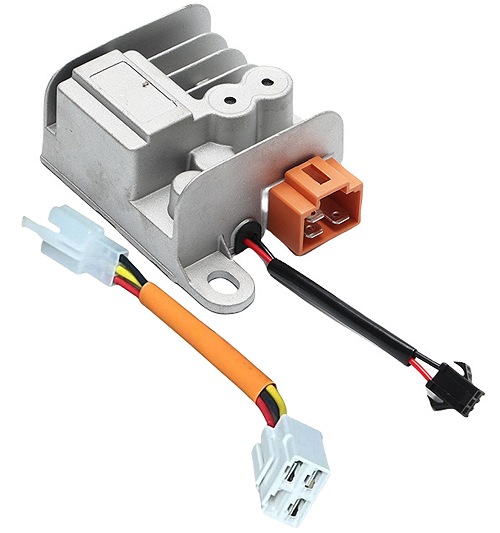

36-84 Volt DC to 12 Volt DC 10A DC-DC Voltage Converter
Electric scooter, moped, and e-bike DC to DC converter. Converts 36V, 48V, 60V, 72V, or 84V DC down to 12 Volts DC. Maximum output current 10 Amps. 5 Volt output for USB plugs (optional to use). Runs 12 Volt DC lights, horns, and accessories off of higher DC Voltages. Dimensions of case not including mounting tabs 3.40" (61mm) long x 2.32" (59mm) wide. Center to center distance between mounting holes 3.35" (85mm). Mating connector item # CNX-52

Item # CVT-12150

Wiring Diagram:
PDF
CVT-12150 has been discontinued and depending on the application can be replaced with either CVT-12151 or CVT-12152 listed below.
$22.95

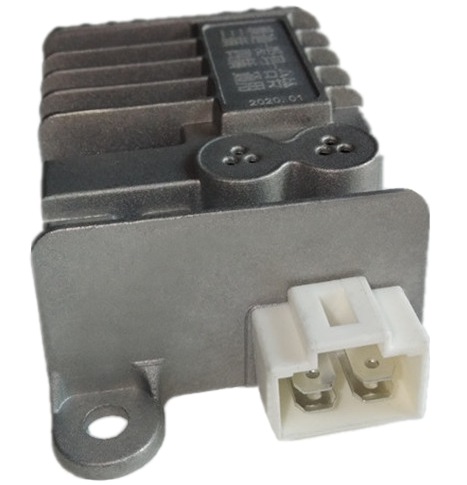

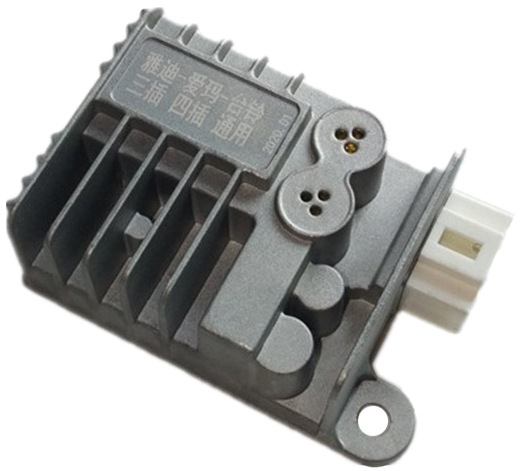

36-84 Volt DC to 12 Volt DC 10A DC-DC Voltage Converter
Electric scooter, moped, and e-bike DC to DC converter. Converts 36V, 48V, 60V, 72V, or 84V DC down to 12 Volts DC. Maximum output current 10 Amps. Runs 12 Volt DC lights, horns, and accessories off of higher DC Voltages. Dimensions of case not including mounting tabs 3.40" (61mm) long x 2.32" (59mm) wide. Center to center distance between mounting holes 3.35" (85mm). Mating connector item # CNX-160

Item # CVT-12151

Wiring Diagram:
PDF
$22.95

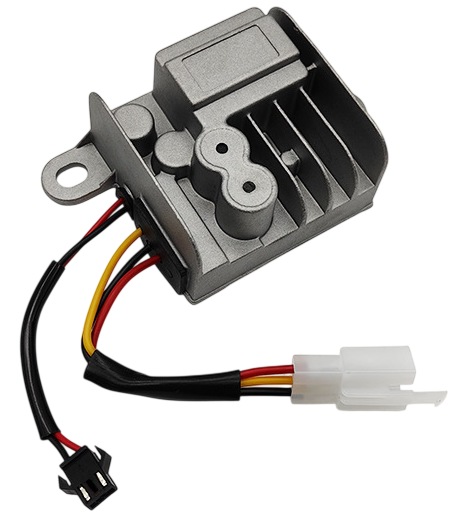

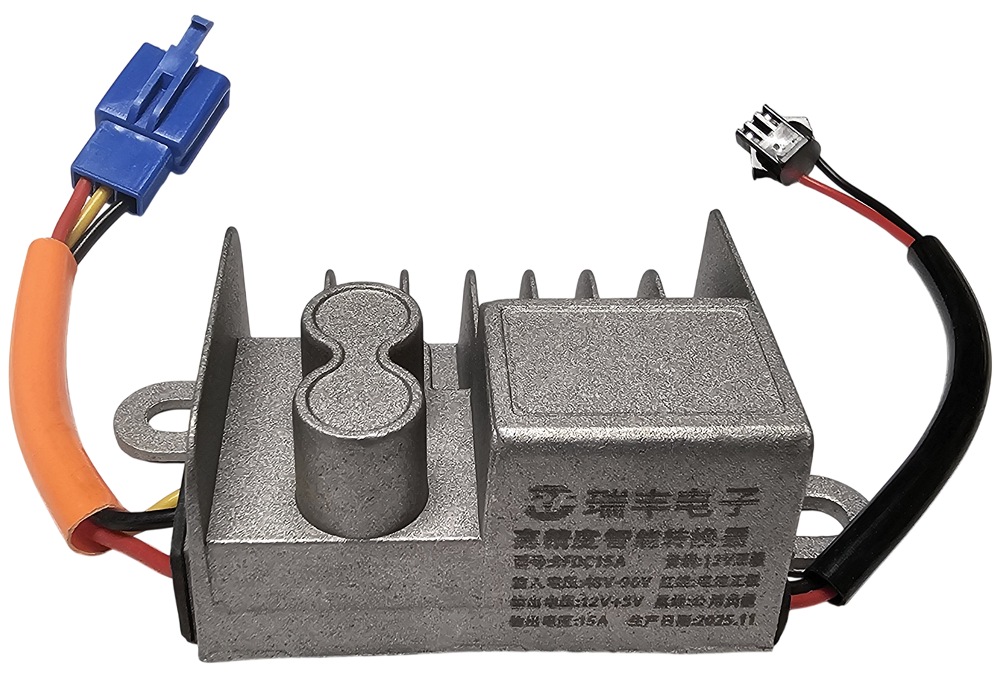

36-84 Volt DC to 12 Volt DC 10A-15A DC-DC Voltage Converter
Electric scooter, moped, and e-bike DC to DC converter. Converts 36V, 48V, 60V, 72V, or 84V DC down to 12 Volts DC. Maximum output current 15 Amps. Replaces both 10A and 15A converters. 5 Volt output for USB plugs (optional to use). Runs 12 Volt DC lights, horns, and accessories off of higher DC Voltages. Dimensions of case not including mounting tabs 3.40" (61mm) long x 2.32" (59mm) wide. Center to center distance between mounting holes 3.35" (85mm). Mating connector item # CNX-52

Item # CVT-12152

Wiring Diagram:
PDF
$22.95

Related Items: Light Bulbs | Headlights | Taillights | Turn Signals

Order Online or Phone Toll-Free
1-800-908-8082




"When you need Electric Scooter Parts, go to: ElectricScooterParts.com"



Store Polices | Electric Scooter Repair Help | Dealer Discounts | Feedback | About Us


We have Voltage Converters for electric scooters, mopeds, and bikes. Our Voltage Converters change 36, 48, 60, and 72 Volts into 12 Volts in order to run 12 Volt headlights, taillights, turn signals, horns, and accessories. Voltage Converters are also known as DC to DC Converters, DC-DC Converters and DC/DC Converters.
