Switches > Handlebar Switches

Handlebar Switches

Browse for handlebar switches by vehicle make and model.


Handlebar Mount On/Off Power Switch
Handlebar mounted maintained position On-Off 2-position rocker switch. Single Pole Single Throw (SPST). Commonly used with speed controllers for a power or reverse switch, however, can it be used for many other purposes such as lighting and accessories as well. Cable exits back of switch. 64" long cable with 2 wires and 2.8mm male terminals for white wire connectors. Fits standard 7/8" (22.2mm) electric scooter and bicycle handlebars.
Item # SWT-28

SWT-28 Wiring Directions

Red + Blue Open = Left "O" Off Position
Red + Blue Closed = Right "I" On Position
 I and O Switch Symbol Information
$9.95

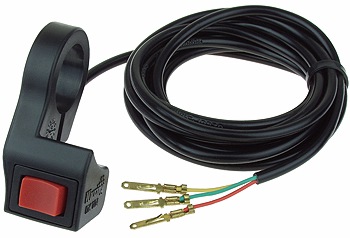

Handlebar Mount 3-Position Switch
Handlebar mounted maintained position Left-Center-Right 3-position rocker switch. Single Pole Double Throw (SPDT). Break Before Make (BBM) contacts. Most commonly used with speed controllers that have a low-medium-high speed function, however, can it be used for many other purposes as well. Cable exits back of switch. 78" long cable with 3 wires and 2.8mm male terminals for white wire connectors. Fits standard 7/8" (22.2mm) electric scooter and bicycle handlebars.
Item # SWT-27

SWT-27 Wiring Directions

Red + Green Closed = Left Position
Red + Yellow Closed = Right Position
All Wires Open = Center Position
Wiring Pinout
Wiring Pinout and Diagram for Turn Signal Switch PDF
$9.95


Handlebar Mount PAS TAG 2-Position Switch
Handlebar mounted maintained position PAS-TAG 2-position rocker switch for electric bicycles. Single Pole Single Throw (SPST). Cable exits back of switch. 82" long cable with 2 wires and 1.1mm male terminals with small black wire connector. Fits standard 7/8" (22.2mm) electric scooter and bicycle handlebars.
Item # SWT-10125

SWT-10125 Wiring Directions

Brown + Blue Open = Left "PAS" Position
Brown + Blue Closed = Right "TAG" Position
$11.95


Handlebar Mount On/Off Power Switch
Handlebar mounted on/off switch for electric scooters and bikes. Maintained push button switch for main power or headlights. Cable exits back of switch. 64" long cable with 2 wires and 2.8mm male terminals for white wire connectors. Fits standard 7/8" (22.2mm) electric scooter and bicycle handlebars.
Item # SWT-23

SWT-23 Wiring Directions

Blue + Red = Power or Headlights

$11.95


Handlebar Mount Horn Switch
Handlebar mounted horn switch for electric scooters and bikes. Normally open momentary push button switch for horn. Cable exits back of switch. 64" long cable with 2 wires and 2.8mm male terminals for white wire connectors. Fits standard 7/8" (22.2mm) electric scooter and bicycle handlebars.
Item # SWT-24

SWT-24 Wiring Directions

Blue + Red = Horn

$11.95


Handlebar Mount Horn Switch
Handlebar mounted horn switch for electric scooters and bikes. Normally open momentary push button switch for horn. Cable exits right side of switch. 64" long cable with 2 wires and 2.8mm male terminals for white wire connectors. Fits standard 7/8" (22.2mm) electric scooter and bicycle handlebars.
Item # SWT-25

SWT-25 Wiring Directions

Blue + Red = Horn

$12.95


Handlebar Mount Switch Cluster for Lights and Horn
Handlebar mounted switch cluster for electric scooters and bikes. Switches for headlights and taillights, and horn. Headlight switch is latching and horn switch is momentary. Cable exits bottom of switch so it can be mounted on either left side or right side of handlebars. 64" long cable with 4 wires and 2.8mm male terminals for white wire connectors. Fits standard 7/8" (22.2mm) electric scooter and bicycle handlebars.
Item # SWT-31

SWT-31 Wiring Directions

Red + Yellow = Headlights
Blue + Green = Horn
$12.95


Handlebar Mount Switch Cluster for Turn Signals, Lights and Horn
Handlebar mounted switch cluster for electric scooters and bikes. Switches for headlights and taillights, turn signals, and horn. Cable exits back of switch. 64" long cable with 7 wires and 2.8mm male terminals for white wire connectors. Fits standard 7/8" (22.2mm) electric scooter and bicycle handlebars.
Item # SWT-32

SWT-32 Wiring Directions

White + Gray = Headlights
Yellow + Brown = Horn
Red + Green = Right Turn Signal
Red + Blue = Left Turn Signal

SWT-32 Wiring Pinout and Diagram PDF

$14.95


Handlebar Mount Switch Cluster for Turn Signals, Lights and Horn
Handlebar mounted switch cluster for electric scooters and bikes. Switches for headlights and taillights, turn signals, and horn. Cable exits right side of switch. 64" long cable with 7 wires and 2.8mm male terminals for white wire connectors. Fits standard 7/8" (22.2mm) electric scooter and bicycle handlebars.
Item # SWT-34

SWT-34 Wiring Directions

White + Gray = Headlights
Yellow + Brown = Horn
Red + Green = Right Turn Signal
Red + Blue = Left Turn Signal

SWT-34 Wiring Pinout and Diagram PDF

$14.95


Black Aluminum Handlebar Mount On/Off Switch
Handlebar mounted water resistant on/off switch made from machined aluminum alloy. Maintained rocker switch commonly used for a power or lights switch. Can be mounted with the switch above or below the handlebar. Cable exits back of switch. 19" long heavy-duty 1/4" OD cable with two 18 gauge internal wires. Switch and cable rated for loads up to 60 Watts. Fits standard 7/8" (22.2mm) electric scooter and bicycle handlebars.
Item # SWT-36

SWT-36 Wiring Directions

Red + Blue Closed = Position I
Red + Blue Open = Position O
$16.95


Black Aluminum Handlebar Mount On/Off/On Switch
Handlebar mounted water resistant on/off/on switch made from machined aluminum alloy. Maintained rocker switch commonly used in conjunction with a reverse contactor for forward-park-reverse switching applications. Can be mounted with the switch above or below the handlebar. Cable exits back of switch. 19" long heavy-duty 1/4" OD cable with three 18 gauge internal wires. Switch and cable rated for loads up to 60 Watts. Fits standard 7/8" (22.2mm) electric scooter and bicycle handlebars.
Item # SWT-37

SWT-37 Wiring Directions

Blue + Brown Closed = Position I

Blue + Brown Open = Positions O and II
All Wires Open = Position O
Blue + Black Closed = Position II

Blue + Black Open = Position O and I

$16.95


Black Aluminum Handlebar Mount On/Off Switch
Handlebar mounted water resistant on/off switch made from machined aluminum alloy. Maintained rocker switch commonly used as a power switch or a lighting and accessory switch. Can be mounted with the switch above or below the handlebar. Cable exits back of switch. 78" long heavy-duty 1/4" OD cable with two 18 gauge internal wires. Switch and cable rated for loads up to 60 Watts. Fits standard 7/8" (22.2mm) electric scooter and bicycle handlebars.
Item # SWT-38

SWT-38 Wiring Directions

Blue + Brown Closed = Position I
Blue + Brown Open = Position O
$21.95




Handlebar Mount Switch Cluster with Indicator Lights for Turn Signals, Lights, and Horn
Handlebar mounted switch cluster for electric scooters and bikes. Maintained push button switch for headlights and turn signals. Cable exits back of switch. 78" long cable. Fits standard 7/8" (22.2mm) electric scooter and bicycle handlebars. Operates on 36 Volts through 48 Volts with 56 Volts maximum. 1 Amp maximum current. IPX4 water resistant. The turn signal switches operate independently so the left turn signal can be on, the right turn signal can be on, or both turn signals can be on at the same time for hazard lights. We carry compatible wire connectors for this switch.
Item # SWT-56
$21.95


Handlebar Mount Switch with Eco Turbo and Single Dual Push Buttons
Commonly used on dual-drive front and rear wheel drive electric scooters with 10" and 11" wheels. 70-inch long wire cable. 4 wires with 1.1mm male terminals. We carry compatible wire connectors for this switch.
Item # SWT-10158
$19.95


Handlebar Mount Switch Cluster for Turn Signals, Lights and Horn with Grip
Switch cluster with handlebar grip for electric scooters and bikes. Switches for head and tail lights, horn and turn signals. 57" long cable with 7 wires and 2.8mm male terminals for white wire connectors. Fits standard 7/8" (22.2mm) electric scooter and bicycle handlebars.
Item # SWT-30

SWT-30 Wiring Directions

White + Yellow = Headlights
Blue + Brown = Horn
Black + Red = Right Turn Signal
Black + Green = Left Turn Signal

SWT-30 Wiring Pinout and Diagram PDF

$17.95


Matching Handlebar Grip for SWT-30
Standard handlebar grip for electric scooters and bikes. This is the most common grip used on Chinese-made electric scooters and bikes.
Item # GRP-10

more grips

$1.95


Full-Size Street Scooter Handlebar Mount Switch for High and Low Beams, Turn Signals, and Horn
Handlebar mounted switch cluster for full-size street electric scooters and e-bikes. Switches for headlight high and low beams, turn signals, and horn. Threaded hole on top of switch for mirrors with 8mm right hand threads. 9" long cable with 8 wires and 9 pin white connector. Fits 7/8" (22.2mm) handlebars. 9 pin wiring connector mates with item # CNX-55 available below.
Item # SWT-40L
$14.95


Full-Size Street Scooter Handlebar Mount Switch for Headlight, Taillight, and Start
Handlebar mounted switch cluster for full-size street electric scooters and e-bikes. Switches for headlight, taillight, and start. The start button is typically not used for electric scooters and e-bikes as they have a key switch or power switch to turn them on and off, however, it could be used as a horn switch. Threaded hole on top of switch for mirrors with 8mm right hand threads. 9" long cable with 7 wires and 9 pin white connector. Fits 7/8" (22.2mm) handlebars. 9 pin wiring connector mates with item # CNX-55 available below.
Item # SWT-40R
$14.95


Full-Size Street Scooter Handlebar Mount Left Brake lever with Switch for High and Low Beams, Turn Signals, and Horn
Handlebar mounted switch cluster and brake lever for full-size street electric scooters and e-bikes. Switches for headlight high and low beams, turn signals, and horn. Threaded hole on top of switch for mirrors with 8mm right hand threads. 9" long switch cable with 8 wires and 9 pin white connector. Fits 7/8" (22.2mm) handlebars. 9" long brake switch cable with 4mm male bullet terminals. 9 pin wiring connector mates with item # CNX-55 available below.
Item # SWT-41L
$16.95


Full-Size Street Scooter Handlebar Mount Right Brake lever with Switch for Headlight, Taillight, and Start
Handlebar mounted switch cluster and brake lever for full-size street electric scooters and e-bikes. Switches for headlight, taillight, and start. The start button is typically not used for electric scooters and e-bikes as they have a key switch or power switch to turn them on and off, however, it could be used as a horn switch. Threaded hole on top of switch for mirrors with 8mm right hand threads. 9" long switch cable with 7 wires and 9 pin white connector. Fits 7/8" (22.2mm) handlebars. 9" long brake switch cable with 4mm male bullet terminals. 9 pin wiring connector mates with item # CNX-55 available below.
Item # SWT-41R
$16.95


Full-Size Street Scooter Handlebar Mount Switch for High and Low Beams, Turn Signals, and Horn
Handlebar mounted switch cluster for full-size street electric scooters and e-bikes. Switches for headlight high and low beams, turn signals, and horn. Threaded hole on top of switch for mirrors with 8mm right hand threads. 18" long cable with 8 wires and 9 pin white connector. Fits 7/8" (22.2mm) handlebars. 9 pin wiring connector mates with item # CNX-55 available below.
Item # SWT-42L
$14.95


Full-Size Street Scooter Handlebar Mount Switch for Headlight, Taillight, and Start
Handlebar mounted switch cluster for full-size street electric scooters and e-bikes. Switches for headlight, taillight, and start. The start button is typically not used for electric scooters and e-bikes as they have a key switch or power switch to turn them on and off, however, it could be used as a horn switch. Threaded hole on top of switch for mirrors with 8mm right hand threads. 18" long cable with 7 wires and 9 pin white connector. Fits 7/8" (22.2mm) handlebars. 9 pin wiring connector mates with item # CNX-55 available below.
Item # SWT-42R
$14.95


9 Pin Wiring Connector for SWT-40 Series
9 Pin throttle/speed controller connector set. 2.8mm wide pin terminals. Includes matching 18 piece pin and socket terminal set.
Item # CNX-55

More Wiring Connectors

$1.79


Headlights, Turn Signal, and Horn Switch for EV Warrior® Electric Bicycle
Handlebar switch cluster with headlight, turn signal, and horn switches for the EV Warrior® electric bicycle. Includes mounting plate and screws. Fits 7/8" (22.2mm) handlebars.
Wiring Pinout
Item # EVW-SWITCH
$19.95
