Relays > Reverse Contactors

Reverse Contactors


24 Volt Motor Reversing Contactors


24 Volt 150 Amp Motor Reversing Contactor
24 Volt DC 150 Amp continuous duty motor reversing contactor. Has no-load rated make or break contacts so it needs to be used with a speed controller and the vehicle should be stopped before switching between forward, park, and reverse directions. Applies electronic braking to the motor when the switch is in the park position which helps prevent damage to the controller in the event of accidentally switching directions when the vehicle is in motion and provides a parking brake when the switch is in the park position. 1/4" wide push-on spade terminals for the coils and 6mm (1/4"") posts for the contacts. Dimensions including mounting tabs and terminals are 3-1/8" wide x 2-1/4" deep x 3-1/4" high.
Item # RLY-RC24150
Wiring Diagram:
PDF
$59.95


24 Volt 250 Amp Motor Reversing Contactor
24 Volt DC 250 Amp continuous duty motor reversing contactor. Has no-load rated make or break contacts so it needs to be used with a speed controller and the vehicle should be stopped before switching between forward, park, and reverse directions. Applies electronic braking to the motor when the switch is in the park position which helps prevent damage to the controller in the event of accidentally switching directions when the vehicle is in motion and provides a parking brake when the switch is in the park position. 1/4" wide push-on spade terminals for the coils and 8mm (5/16") posts and bolt for the contacts.
Item # RLY-RC24250
Wiring Diagram:
PDF
$79.95

36 Volt Motor Reversing Contactors


36 Volt 150 Amp Motor Reversing Contactor
36 Volt DC 150 Amp continuous duty motor reversing contactor. Has no-load rated make or break contacts so it needs to be used with a speed controller and the vehicle should be stopped before switching between forward, park, and reverse directions. Applies electronic braking to the motor when the switch is in the park position which helps prevent damage to the controller in the event of accidentally switching directions when the vehicle is in motion and provides a parking brake when the switch is in the park position. 1/4" wide push-on spade terminals for the coils and 6mm (1/4"") posts for the contacts. Dimensions including mounting tabs and terminals are 3-1/8" wide x 2-1/4" deep x 3-1/4" high.
Item # RLY-RC36150
Wiring Diagram:
PDF
$59.95

48 Volt Motor Reversing Contactors


48 Volt 150 Amp Motor Reversing Contactor
48 Volt DC 150 Amp continuous duty motor reversing contactor. Has no-load rated make or break contacts so it needs to be used with a speed controller and the vehicle should be stopped before switching between forward, park, and reverse directions. Applies electronic braking to the motor when the switch is in the park position which helps prevent damage to the controller in the event of accidentally switching directions when the vehicle is in motion and provides a parking brake when the switch is in the park position. 1/4" wide push-on spade terminals for the coils and 6mm (1/4"") posts for the contacts. Dimensions including mounting tabs and terminals are 3-1/8" wide x 2-1/4" deep x 3-1/4" high.
Item # RLY-RC48150
Wiring Diagram:
PDF
$59.95


48 Volt 250 Amp Motor Reversing Contactor
48 Volt DC 250 Amp continuous duty motor reversing contactor. Has no-load rated make or break contacts so it needs to be used with a speed controller and the vehicle should be stopped before switching between forward, park, and reverse directions. Applies electronic braking to the motor when the switch is in the park position which helps prevent damage to the controller in the event of accidentally switching directions when the vehicle is in motion and provides a parking brake when the switch is in the park position. 1/4" wide push-on spade terminals for the coils and 8mm (5/16") posts and bolt for the contacts.
Item # RLY-RC48250
Wiring Diagram:
PDF
$79.95

Motor Reversing Contactor Switches

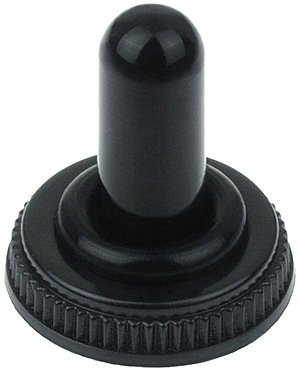

Toggle Switch Rubber Cover with Built-In Mounting Nut
Rubber toggle switch cover with built-in mounting nut. EPDM rubber cover overmolded to a nylon nut cover with nickel-plated brass nut on the inside. Moisture, dirt, and dust resistant. Compatible with item # SWT-97 sold below.
Item # SWT-91
$0.50

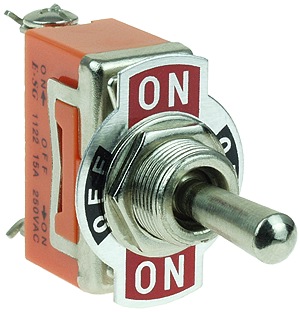

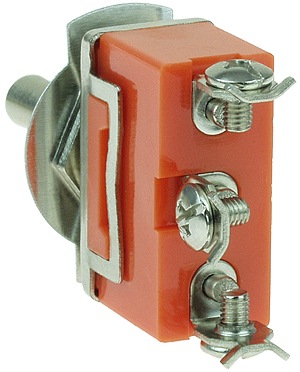

On-Off-On Panel Mount Toggle Switch
Toggle type on-off-on SPDT 3-terminal power switch for electric scooters, bikes, go-karts, beach carts/wagons. 15 Amp rating. Maintained switch stays in the position it is switched to. Mounts in a 12mm or 1/2" diameter hole. Ring terminal or solder connection terminals on back side of switch. Compatible with #4 ring terminals. Includes installation hardware.
Item # SWT-97
$2.95

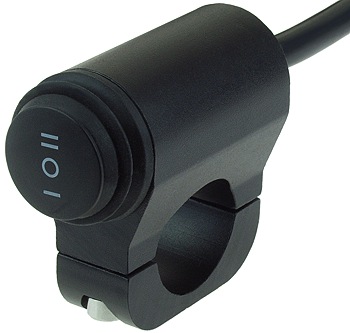

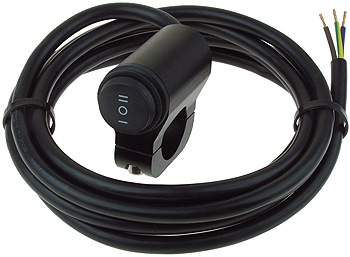

On-Off-On Handlebar Mount Rocker Switch
Handlebar mounted water resistant on/off/on switch made from anodized machined aluminum billet. Maintained rocker switch commonly used in conjunction with a reverse contactor for forward-park-reverse switching applications. Can be mounted with the switch above or below the handlebar. 78" long heavy-duty 1/4" OD cable with three 18 gauge wires. Fits standard 7/8" (22mm) electric scooter and bicycle handlebars.
Item # SWT-39

SWT-39 Wiring Directions

Blue + Yellow/Green Closed = Position I
All Wires Open = Position O
Brown + Yellow/Green Closed = Position II
$21.95
