Switches > Key Switches

Key Switches

Browse for key switches by vehicle make and model.

Metal Body
Key Switches
Plastic Body
Key Switches
Key Switches with
Handlebar Lock Pins

Metal Body Key Switches

2 Wire 1 Position Key Switch
Electric scooter and bike key switch with 2 wires and 2 keys. One position off-on key switch. Key removable in off position only. Universal size key switch fits virtually all electric scooters, bikes, and go karts with metal key switches.
Wire Length: 9 Inches
Wire Terminals: 2.8mm Male
Mounting Hole Dimensions: Click To View
Item # SWT-222

All 2 wire key switches are interchangeable with each other regardless of their wire colors.

Wire Color Off Position Position 1
Yellow Off On
Red Off On
$11.95

3 Wire 1 Position Key Switch
Electric scooter and bike key switch with 3 wires and 2 keys. One position off-on key switch. Key removable in off position only. Universal size key switch fits virtually all electric scooters, bikes, and go karts with metal key switches.
Wire Length: 9 Inches
Wire Terminals: 2.8mm Male
Mounting Hole Dimensions: Click To View
Item # SWT-22
5
The two red wires are bridged together onto one switch post essentially making this a 2 wire key switch with an extra red wire. All 2 wire key switches are interchangeable with each other regardless of their wire colors.

Wire Color Off Position Position 1
Brown Off On
Red Off On
Red Off On
$11.95

3 Wire 2 Position Key Switch
Electric scooter and bike key switch with 3 wires and 2 keys. Two position off-on-on key switch. Key removable in off position only. Universal size key switch fits virtually all electric scooters, bikes, and go karts with metal key switches.
Wire Length: 9 Inches
Wire Terminals: 2.8mm Male
Mounting Hole Dimensions: Click To View
Item # SWT-332
Wire

Color

Off

Position

Position

1

Position

2

Orange Off On On
Yellow Off On On
White Off Off On
$12.95

4 Wire 1 Position Key Switch
Electric scooter and bike key switch with 4 wires and 2 keys. One position off-on key switch. Key removable in off position only. Universal size key switch fits virtually all electric scooters, bikes, and go karts with metal key switches.
Wire Length: 9 Inches
Wire Terminals: 2.8mm Male
Mounting Hole Dimensions: Click To View
Item # SWT-423

Wire Color Off Position Position 1
Red Off On
Red-White Off On
Black On Off
Black-White On Off
$12.95

4 Wire 1 Position Key Switch
Electric scooter and bike key switch with 4 wires and 2 keys. One position off-on key switch. Key removable in off position only. Universal size key switch fits virtually all electric scooters, bikes, and go karts with metal key switches.
Wire Length: 9 Inches
Wire Terminals: 2.8mm Male
Mounting Hole Dimensions: Click To View
Item # SWT-424

Wire Color Off Position Position 1
Orange Off On
Green Off On
Black Off On
Yellow Off On
$12.95

5 Wire 2 Position Key Switch
Electric scooter and bike key switch with 5 wires and 2 keys. Two position off-on-on key switch. Key removable in off position only. Universal size key switch fits virtually all electric scooters, bikes, and go karts with metal key switches.
Wire Length: 9 Inches
Wire Terminals: 2.8mm Male
Mounting Hole Dimensions: Click To View
Item # SWT-236

Wire
Color
Off
Position
Position
1
Position
2
Orange Off On On
Yellow Off On On
Green On Off Off
White Off Off On
Black On Off Off
$12.95



Mounting Plate For Metal Key Switch and Battery Indicator
White plastic mounting plate for metal key switch and battery indicator gauge. Works with both 1 position and 2 position key switches. Has OFF-ON-HEADLIGHT ON markings for 2 position key switch.
Key Switch Hole Dimensions: Click To View
Item # SWT-200
$4.95

Plastic Body Key Switches

2 Wire 1 Position Key Switch with Black Plastic Body
Electric scooter and bike key switch with 2 wires and 2 keys. One position off-on key switch. Key removable in off position only. This key switch has plastic spring tabs that lock the switch into position after it is pushed into the mounting hole. Universal size key switch fits virtually all electric scooters, bikes, and go karts with plastic key switches.
Wire Length: 9 Inches
Wire Terminals: 2.8mm Male
Mounting Hole Dimensions: Click To View
Item # SWT-230
All 2 wire key switches are interchangeable with each other regardless of their wire colors.

Wire Color Off Position Position 1
Red Off On
Black Off On
$11.95

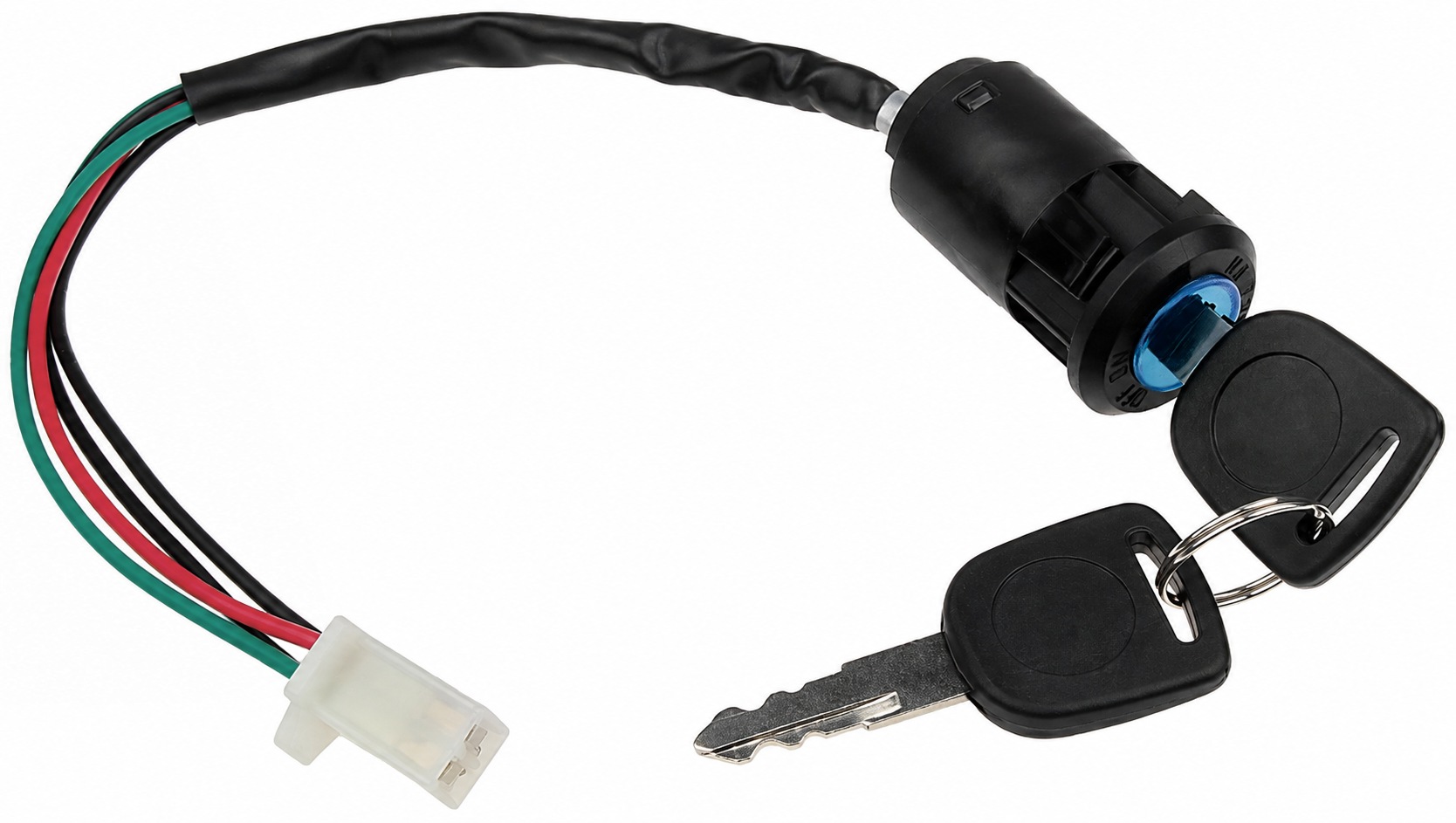

4 Wire 1 Position Key Switch with Black Plastic Body
Electric scooter and bike key switch with 4 wires and 2 keys. One position off-on key switch. Key removable in off position only. Universal size key switch fits virtually all electric scooters, bikes, and go karts with plastic key switches.
Wire Length: 9 Inches
Wire Terminals: 2.8mm Female
Mounting Hole Dimensions: Click To View
Item # SWT-42
1

Wire Color Off Position Position 1
Red Off On
Green Off On
Black Off On
Black Off On
$12.95

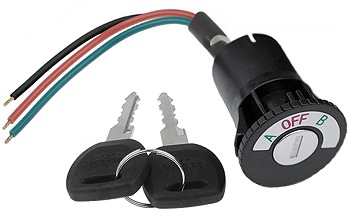

3 Wire 2 Position Key Switch
Electric scooter and bike key switch with 3 wires and 2 keys. Two position off-on-on key switch. Key removable in off position only. Position 1 is for scooter on with lights off, and position 2 is for scooter on with lights on. This key switch has tabs that lock the switch into position after it is pushed into the mounting hole. Universal size key switch fits virtually all electric scooters, bikes, and go karts with plastic key switches.
Wire Length: 6 Inches
Wire Terminals: None (Stripped Wire Ends)
Mounting Hole Dimensions: Click To View
Item # SWT-336

Wire

Color

Off

Position

Position

1

Position

2

White/Yellow/Black Off On On
Red Off On On
Green Off Off On
$12.95

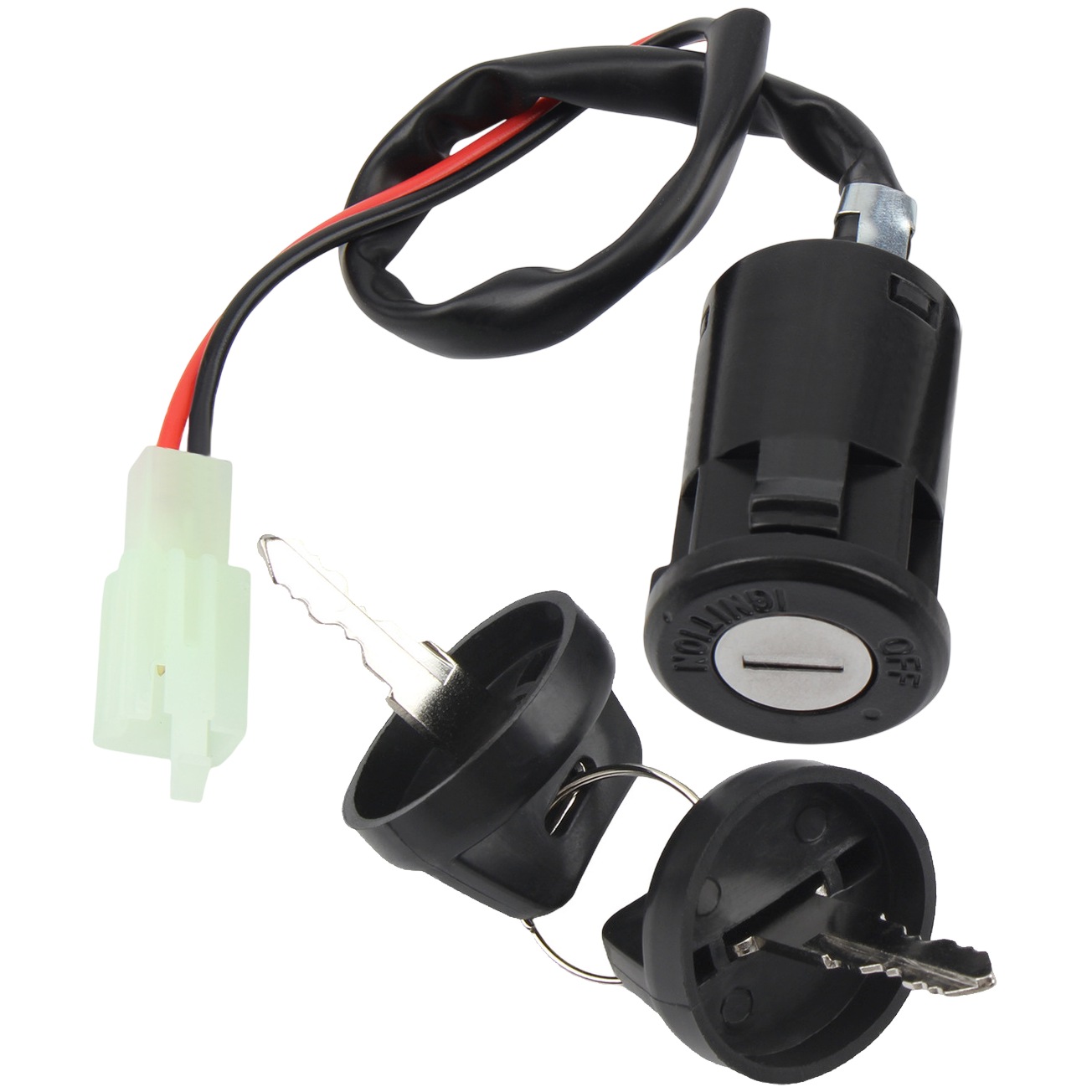

4 Wire 1 Position Key Switch
Electric ATV, Quad, scooter, and bike key switch with 4 wires and 2 keys. One position off-on key switch. Key removable in off position only. Universal size key switch fits virtually all electric scooters, bikes, and go karts with plastic key switches.
Wire Length: 12 Inches
Wire Terminals: 2.8mm Female
Mounting Hole Dimensions: Click To View
Item # SWT-425

Wire Color Off Position Position 1
Red Off On
Green Off On
Black/White Off On
Black Off On
$12.95

Key Switches with Handlebar Lock Pins

2 Wire 3 Position Key Switch with Handlebar Lock Pin
Electric scooter, and bike key switch with 2 wires and 2 keys. Three position locked-off-on key switch. Key removable in locked and off position. 18mm center to center distance between mounting holes. 10mm round lock pin. Lock pin protrudes 12mm in unlocked position and 18mm in locked position.
Wire Length: 5 Inches
Wire Terminals: 6.3mm Female
Mounting Hole Dimensions: Click To View
Item # SWT-237

Wire Color Locked Position Off Position On Position
Red Off Off On
Black Off Off On
$19.95

2 Wire 3 Position Key Switch with Handlebar Lock Pin
Electric scooter and bike key switch with 2 wires and 2 keys. Three position locked-off-on key switch. Key removable in locked and off position. 18mm center to center distance between mounting holes. 10mm round lock pin. Lock pin protrudes 12mm in unlocked position and 18mm in locked position. Front black plastic bezel is removable for installation.
Wire Length: 8 Inches
Wire Terminals: 6.3mm Male
Mounting Hole Dimensions: Click To View
Item # SWT-238

Wire Color Locked Position Off Position On Position
Red Off Off On
Black Off Off On
$24.95

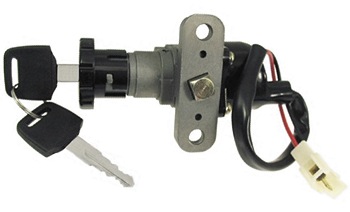

2 Wire 3 Position Key Switch with Handlebar Lock Pin
Key switch with two keys for full size street legal electric scooters, bikes, and mopeds. Three position locked/off-on key switch. Key removable in locked and off position. 50mm center to center distance between mounting holes. Front black plastic bezel is removable for installation.
Wire Length: 6 Inches
Wire Terminals: 6.3mm Male
Mounting Hole Dimensions: Click To View
Item # SWT-239

Wire Color Locked Position Off Position On Position
Red Off Off On
Black Off Off On
$29.95

5 Wire 3 Position Key Switch with Handlebar Lock Pin
Key switch with two keys for full size street legal electric scooters, bikes, and mopeds. Three position locked/off-on key switch. Key removable in locked and off position. 50mm center to center distance between mounting holes. Front black plastic bezel is removable for installation.
Wire Length: 3 Inches
Wire Terminals: 2.8mm Female
Mounting Hole Dimensions: Click To View
Item # SWT-240

Wire Color Locked Position Off Position On Position
Red Off Off On
Red/White Off Off On
Black On On Off
Green On On Off
White Off Off Off
$29.95

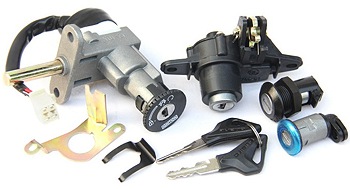

4 Wire 3 Position Key Switch with Handlebar Lock Pin and Two Trunk/Panel Locks
Key switch plus two trunk/panel locks with two keys for full size street legal electric scooters, bikes, and mopeds. Three position locked/off-on key switch. Key removable in locked and off position. 28mm center to center distance between mounting holes. Front black plastic bezel is removable for installation. 10mm round lock pin. Lock pin protrudes 2mm in unlocked position and 9mm in locked position.
Wire Length: 9 Inches
Wire Terminals: 6.3mm Male
Mounting Hole Dimensions: Click To View
Item # SWT-241

Wire Color Locked Position Off Position On Position
Red Off Off On
Black Off Off On
Green Off Off On
Black/White Off Off On
$29.95

Related Parts: White Wire Connectors
