Accessories / Lighting > Headlights

Headlights

Browse for headlights by vehicle make and model

Handlebar Mount
Headlight Dashboards
Self Powered
Handlebar Mount Headlights
Externally Powered
Handlebar Mount Headlights



Fender Mount
Headlights
Handlebar Mount
End Lights
Handlebar Mount
Flashlight Holders

Handlebar Mount Headlight Dashboards

Electric Scooter Headlight with Key Switch and Horn




48 Volt Electric Scooter or Bicycle Handlebar Mount Headlight Dashboard with Key Switch, Horn, and Battery Power Indicator
48 Volt handlebar mount headlight dashboard with 3-position Off-On-On+Headlight key switch, horn, and battery power level indicator. Key is removable in the off position only. Power indicator is calibrated for 48 Volts lead-acid battery packs. Has +48V output wire for a tail and side lights. Built-in 48 Volt DC horn draws its power from the dashboards input wires and requires an external horn switch to operate. There is a generous amount of open space inside of this dashboard reserved for stuffing the wire connections into for a clean and professional looking installation. Dual mounting clamps fit standard 7/8" (22mm) electric scooter, moped, and e-bike handlebars.

Item # LIT-310

Wiring Diagram:
PDF
$19.95

Self Powered Handlebar Mount Headlights


53 LED Electric Scooter or Bicycle Headlight
Bright 53 LED headlight for electric scooters and bikes. Top mounted push button switch activates three different power modes: low, medium and high. High power mode turns on all 53 LED's at once. This headlight lights up the road very well at night compared to most other LED headlights. Requires 3 AA batteries. (batteries not included)
Item # LIT-53LED
$11.95

LED Headlight


LED Scooter and Bicycle Headlight Set


LED Headlight Test

2500 Lumen LED Ultra-Bright Rechargeable Electric Scooter or Bicycle Headlight
Super bright 2500 lumen rechargeable LED headlight set for electric scooters and bikes. Anodized aluminum headlight body with glass lens and plastic mounting base. Lighted push button switch on back of light activates four different power modes: low, normal, high and flashing. Normal power mode is very bright and suitable for almost all riding conditions. High power mode is extremely bright and suitable for higher speed riding and off-road trails. In flashing mode this light blinks on and off very fast. Includes optional adjustable headband, 2500 lumen LED headlight, handlebar and headband mounting bands, 100-240V AC universal battery charger and a 4400mA 8.4 Volt rechargeable lithium-ion battery in a black nylon carry case with Velcro mounting straps. The battery lasts around 4 hours on low mode, 2-1/2 hours on normal mode and 1-1/2 hours on high mode and takes 1-5 hours to fully recharge depending on how long the light was on for. This super bright LED headlight is approximately twenty times brighter than the 53 LED headlight sold below. Weight: 16 ounces

Item # LIT-140

$34.95

Mounting Band Set for LED Electric Scooter and Bike Headlight

Rubber Mounting Ring Set for LIT-140, LIT-145, LIT-146, LIT-147, and LIT-149 Headlights
Replacement rubber mounting rings for LIT-140, LIT-145, LIT-146, LIT-147, and LIT-149 headlights. Set includes one large and one small mounting ring to fit all size handlebars. These rubber mounting rings feature built-in pull tabs for easy installation and removal.
Item # LIT-RINGS
$1.00


Battery Charger with US Plug for LIT-140, LIT-145, LIT-146, LIT-147 Headlights
Replacement battery charger with US plug for LIT-140, LIT-145, LIT-146, LIT-147 headlights sold above. 100-240V AC 50/60Hz input. 8.4V 1A (1000mA) output.
Item # CHR-8.4V1A-US
$4.95

Battery Charger with European Plug for LED Electric Scooter and Bike Headlight

Battery Charger with European Plug for LIT-140, LIT-145, LIT-146, LIT-147 Headlights
Replacement battery charger with European plug for LIT-140, LIT-145, LIT-146, LIT-147 headlights sold above. 100-240V AC 50/60Hz input. 8.4V 1A (1000mA) output.
Item # CHR-8.4V1A-EU
$4.95

Externally Powered Handlebar Mount Headlights

XML LED Headlight Kit

800 Lumen Super Bright LED 8-30 Volt Electric Scooter or Bicycle Headlight Kit
800 lumen super bright single LED handlebar mount headlight. Operating Voltage is 8-30 Volts. Light output remains the same regardless of the input Voltage. 45" long power cord. Includes power port with 10" long wires and set of two rubber mounting rings. Lighted push button power switch on back of light to select options of full power, half power, and flashing light.
Item # LIT-149
$19.95

Electric Scooter or Bike LED Headlight

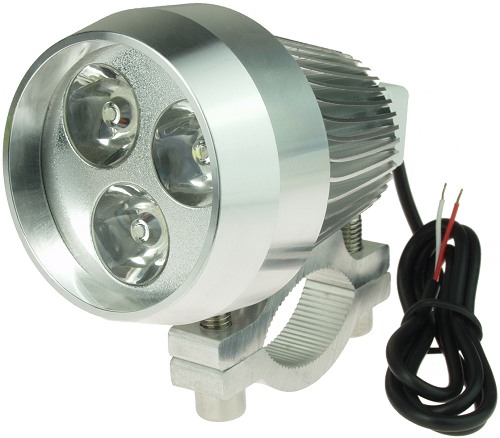

1200 Lumen 3 LED 20-80 Volt Electric Scooter or Bicycle Headlight
Super bright 1200 lumen 3 LED handlebar mount headlight. Operates between 20-80 Volts DC. Consumes 15 Watts of power. This light has a has built-in power regulator so the brightness does not increase or decrease depending upon how much Voltage is applied to the headlight. 12" long power cable. Headlight body and handlebar mounting clamp are made from machined aluminum.

Item # LIT-150

$24.95

Fender Mount Headlights


2-1/2" 12V, 24V, or 36V 10W Halogen Electric Scooter Chrome Headlight
Your choice of 12 Volt, 24 Volt, or 36 Volt 10 Watt halogen headlight bulb. Headlight measures 2-1/2" wide x 2-3/4" long with 2" clear glass lens. 4" long power leads. Chrome plated steel body with electroplated steel mounting bracket and hardware.

Item # LIT-2512 (12 Volt)

Item # LIT-2524 (24 Volt)

Item # LIT-2536 (36 Volt)

12 Volt $19.95

24 Volt $19.95


36 Volt $19.95



12V, 24V, or 36V 10W Halogen Headlight Replacement Bulb
Your choice of 12 Volt, 24 Volt, or 36 Volt 10 Watt replacement halogen headlight bulb with clear glass lens cover. 2" outside diameter. Fits the 2-1/2" halogen headlights sold above.
Item # LIT-H1210 (12 Volt)

Item # LIT-H2410 (24 Volt)

Item # LIT-H3610 (36 Volt)

12 Volt $5.95

24 Volt  $5.95

36 Volt $5.95



4" Long Chrome Teardrop Headlight
Vintage style teardrop bicycle headlight. Works on bicycles and scooters with top side handlebar stem bolts. Chrome plated steel construction. Dimensions: 4" long x  3-1/2" wide with 3" diameter clear plastic lens. This headlight has a two bulb design with an easy to use high-low beam selector switch and on/off rocker switch. Includes electroplated steel fasteners, bracket, and mounting arm. Requires 2 "AA" cell batteries. (batteries not included)
Item # LIT-535



$19.95


Handlebar End Lights





Handlebar End Safety Lights
Set of two black anodized CNC machined billet aluminum handlebar end lights. 240° wide viewing angle. Each light has two super bright red LED lights inside of it with a translucent silicone lens. Press the lens once for flashing red light, twice for continuous red light, and a third time to turn the light off. Both lights can be turned on at the same time as safety lights or they can be individually turned on and off as needed for turn signals. Fits virtually all electric scooter and bike handlebars. Minimum handlebar ID that they will fit is 16mm and maximum is 23mm. The aluminum bezel unthreads from the aluminum base for easy battery replacement. Each handlebar end light uses two AG10 battery (batteries are included)
Item # LIT-101
$5.95

Flashlight Holders


Handlebar Mount D-Cell Flashlight Holder
Turns any standard d-cell flashlight into a scooter or bicycle headlight. Heavy-duty chrome plated all-steel construction. Fits standard 7/8" (22mm) scooter and bike handlebars and mounts to any round bar between 13-23mm. Easy to install two piece design so the handlebar grips and brake levers do not need to be removed for installation. This flashlight holder has a flat bottom so it can also be mounted to any flat surface. Made in USA by Wald®.
Item # LIT-630
$4.49

Related Items: Light Bulbs | Switches | Taillights | Turn Signals
