Throttles > Standard Throttles

Standard Throttles

Browse for throttles by vehicle make and model.

Compatible with nearly all Chinese-made electric scooters, bicycles, mopeds, dirt bikes, pocket bikes, go-karts, ATV's, quads, and mini choppers. Universal fit design works with all electric vehicle Voltages. Standard throttles are sometimes referred to in owners manuals as a hall effect throttle, accelerator, twist bar, speed bar, turn throttle, throttle cable, speed control, controller, or derailleur.


Select Throttle Type
Full Twist Half Twist Thumb Foot Cable Pull

Clicking on the links above will scroll down the page to the selected throttle type.


Full Length Twist Throttles

Practically all electric scooters and bikes have 7/8" (22mm) handlebars. Only a very few number of large street legal electric scooters have 1" (25.4mm) handlebars.



Full Length Twist Throttle
Standard full length throttle. 3-7/8" grip length. Fits 7/8" (22mm) handlebars. Wire colors: black, red, and green. Replaces throttles with black, red, and white wires. 62" long throttle cable with male terminals for white wire connectors. The most common connector for this throttle is CNX-52.
Item # THR-35
Wiring Directions

$19.95



Full Length Twist Throttle with Matching Grip
Standard full length throttle with matching left hand grip. 3-7/8" grip length. Fits 7/8" (22mm) handlebars. Wire colors: black, red, and green. Replaces throttles with black, red, and white wires. 62" long throttle cable with male terminals for white wire connectors. The most common connector for this throttle is CNX-52.
Item # THR-35WG
Wiring Directions
$21.95


Premium Full Length Twist Throttle with Matching Grip
Standard full length throttle with matching left hand grip. 4-1/8" grip length. Fits 7/8" (22mm) handlebars. Wire colors: black, red, and green. Replaces throttles with black, red, and white wires. 62" long throttle cable with male terminals for white wire connectors. The most common connector for this throttle is CNX-52.
Item # THR-45
Wiring Directions
$22.95


Full Length Twist Throttle with Matching Grip (Right Hand Version)
Standard full length right hand throttle with matching left hand grip. 4-1/2" grip length. Fits 7/8" (22mm) handlebars. Wire colors: black, red, and white. 62" long throttle cable with male terminals for white wire connectors. The most common connector for this throttle is CNX-52.
Item # THR-25-R
Wiring Directions
$24.95

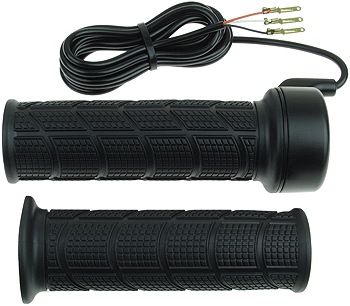

Full Length Twist Throttle with Matching Grip (Left Hand Version)
Standard full length left hand throttle with matching right hand grip. This is a true left hand throttle that goes from zero throttle to full throttle by twisting it in the clockwise direction. 4-1/2" grip length. Fits 7/8" (22mm) handlebars. Wire colors: black, red, and white. 62" long throttle cable with male terminals for white wire connectors. The most common connector for this throttle is CNX-52.
Item # THR-25-L
Wiring Directions
$24.95


Full Length Twist Throttle Left Hand and Right Hand Set
Standard full length left hand and right hand throttle set. The left hand throttle that goes from zero throttle to full throttle by twisting it in the clockwise direction and the right hand throttle goes from zero throttle to full throttle by twisting it in the counterclockwise direction. 4-1/2" grip lengths. Fits 7/8" (22mm) handlebars. Wire colors: black, red, and white. 62" long throttle cable with male terminals for white wire connectors. The most common connector for this throttle is CNX-52.
Item # THR-25-SET
Wiring Directions
$44.95


Premium Full Length Twist Throttle with Chrome End Caps and Matching Grip
Standard premium full length twist throttle with matching left hand grip. 4-1/8" grip length. Fits 7/8" (22mm) handlebars. Grips have chrome-plated plastic end caps. Wire colors: black, red, and green. Replaces throttles with black, red, and white wires. 62" long throttle cable with male terminals for white wire connectors. The most common connector for this throttle is CNX-52.
Item # THR-104
Wiring Directions
$22.95


Full Length Electric Dirt Bike Twist Throttle with Matching Grip
Standard full length twist throttle with matching left hand grip. Fits 7/8" (22mm) handlebars. Wire colors: black, red, and green. Replaces throttles with black, red, and white wires. The most common connector for this throttle is CNX-63.
Item # THR-118
Wiring Directions
$29.95


Left Side Handlebar Grip
Left hand grip with inside flange. 3-7/8" grip length. Fits 7/8" (22mm) handlebars.
Item # GRP-10
$1.95






Full Length Twist Throttle with Gold, Red, or Blue Anodized Aluminum End Caps and Matching Left Hand Grip
Standard full length twist throttle with anodized machined billet aluminum grip ends. Fits 7/8" (22mm) handlebars. Throttle wire colors are black, red, and green. 62" long throttle cable with male terminals for white wire connectors. The most common connector used with this throttle is CNX-52.
Item # THR-120 (Gold)
Item # THR-122 (Red)
Wiring Directions

Gold
$23.95

Red

$23.95



Full Length Twist Throttle with Gold Anodized Aluminum End Caps and Matching Left Hand Grip
Standard full length twist throttle with anodized machined billet aluminum grip ends. Fits 7/8" (22mm) handlebars. Three position switch for speed level control (low-medium-high) of brushless controllers, or can be used for turn signals or headlight switch, etc. Throttle wire colors are black, red, and green with white connector. Speed level/turn signal wire colors are black, red, and green with red connector. Dual 62" long cables with two 3-terminal wire connectors. Both wire connectors mate with connector CNX-52.
Item # THR-126
Wiring Directions
$24.95


Full Length Twist Throttle with Matching Grip for 1" Handlebars
Standard full length throttle with matching grip for large street legal Chinese-made electric scooters. Fits 1" (24.5mm) handlebars. Wire colors: black, red, and white. 18" long throttle cable with female terminals and white connector. Wire connector mates with connector CNX-52.
Item # THR-154
Wiring Directions

$24.95


Half Length Twist Throttles


Half Length Twist Throttle
Standard half length throttle. Fits 7/8" (22mm) handlebars. Wire colors: black, red, and white. 62" long throttle cable with male terminals for white wire connectors. The most common connector used with this throttle is CNX-52.
Item # THR-93
Wiring Directions
$19.95


Half Length Twist Throttle with Key Switch
Standard half length throttle with key switch. A set of two keys are included. Fits 7/8" (22mm) handlebars. Wire colors: black, red, white, yellow, and green. 62" long throttle cable with male terminals for white wire connectors.
Item # THR-93KS
Wiring Directions
$22.95


Half Length Twist Throttle
Standard half length throttle. Fits 7/8" (22mm) handlebars. Wire colors: black, red, and white. 62" long throttle cable with 3 pin black throttle to speed controller connector. The most common connector used in conjunction with this throttle is CNX-63.
Item # THR-94
Wiring Directions
$21.95


Half Length Twist Throttle with Latching Push-Button Switch
Standard half length throttle with latching push-button switch. Fits 7/8" (22mm) handlebars. 62" long throttle cable. Wire colors: black, red, white, yellow, and green.
Item # THR-95
Wiring Directions
$22.95


Handlebar Grips for Half Length Twist Throttles
Set of two handlebar grips for use with the half length twist throttles sold above. The long grip is 4-1/4" and the short grip is 2-1/2".
Item # GRP-54
$4.95

Thumb Throttles



Thumb Throttle
Standard thumb throttle. Designed to be installed on the right hand side of handlebars. Fits 7/8" (22mm) handlebars. Wire colors: black, red, and white. 62" long throttle cable with 2.8mm male terminals for white wire connectors. The most common connector for this throttle is CNX-52.
Item # THR-38
Wiring Directions
$19.95



Thumb Throttle
Standard thumb throttle. Designed to be installed on the right hand side of handlebars. Fits 7/8" (22mm) handlebars. Wire colors: black, red, and white. 62" long throttle cable with female terminals for black wire connectors. The most common connector for this throttle is CNX-63.
Item # THR-40
Wiring Directions
$19.95


Thumb Throttle
Standard thumb throttle. Designed to be installed on the right or left hand side of handlebars. Fits 7/8" (22mm) handlebars. Wire colors: black, red, and blue. 62" long throttle cable with 2.8mm male terminals for white wire connectors. The most common connector for this throttle is CNX-52.
Item # THR-43
Wiring Directions
$19.95


Thumb Throttle (Right Hand Version)
Standard thumb throttle. Designed to be installed on the right hand side of handlebars. Fits 7/8" (22mm) handlebars. Wire colors: black, red, and white. 62" long throttle cable with 2.8mm male terminals for white wire connectors. The most common connector for this throttle is CNX-52.
Item # THR-41-R
Wiring Directions
$19.95


Thumb Throttle (Left Hand Version)
Standard thumb throttle. Designed to be installed on the left hand side of handlebars. Fits 7/8" (22mm) handlebars. Wire colors: black, red, and white. 62" long throttle cable with 2.8mm male terminals for white wire connectors. The most common connector for this throttle is CNX-52.
Item # THR-41-L
Wiring Directions
$19.95


Right Hand Throttle Handlebar Thumb Control
Most commonly used as a throttle control for some newer electric scooter models. Fits 7/8" (22mm) handlebars. Wire colors: black, red, and green. 71" long throttle cable with female terminals and black wire connector. The matching connector for this throttle is CNX-63.
Item # THR-1202
Wiring Directions
$24.95


Left Hand Brake Handlebar Thumb Control
Most commonly used as an electronic brake control for some newer electric scooter models. Can also be used as a throttle. Fits 7/8" (22mm) handlebars. Wire colors: black, red, and green. 71" long throttle cable with female terminals and black wire connector. The matching connector for this throttle is CNX-63.
Item # BRK-1201
Wiring Directions
$24.95


Thumb Throttle Handlebar Grip
Handlebar grip without inside flange. For use on the left and right sides of handlebars with thumb throttles. 4-3/8" grip length. Fits 7/8" (22mm) handlebars.
Item # GRP-18T
$1.95


Thumb Throttle Handlebar Grip
Handlebar grip without inside flange. For use on the left and right sides of handlebars with thumb throttles. 3-3/4" grip length. Fits 7/8" (22mm) handlebars.
Item # GRP-12T
$1.95


Left Side Handlebar Grip
Left hand grip with inside flange. Matching opposite side hand grip for GRP-12T thumb throttle handlebar grip sold above. 4-1/4" grip length. Fits 7/8" (22mm) handlebars.
Item # GRP-10T
$1.95

Foot Throttles


Premium Foot Pedal Throttle
Premium heavy-duty floor mount foot pedal throttle. This foot throttle has a large pedal and a smooth pedal response. 7" long x 2-3/16" wide throttle pedal. Mounting plate on bottom of throttle measures 3-3/8" X 2-3/16". Mounts onto any flat surface with three 5/16" ID mounting holes. IP64 rated dust proof and water splash proof construction. 59" long throttle cable. Wire colors: red, yellow, and green. White wire connector with 2.8mm male terminals mates with item # CNX-52.
Item # THR-89

Wiring Directions (For Red, Yellow, & Green Wire Versions)
Wiring Directions (For Red, Black, & Yellow Wire Versions)
Wiring Directions (For Red, Black, & Green Wire Versions)

$34.95


Premium Foot Pedal Throttle
Premium heavy-duty floor mount foot pedal throttle. This foot throttle has a large pedal a very smooth pedal response with improved low speed control due to its premium hall sensor. 6-5/16" long x 2-3/16" wide throttle pedal. 4" x 2" mounting plate mounts onto any flat surface with three mounting holes. IP64 rated dust proof and water splash proof construction. 45" long throttle cable. Wire colors: red, black, and white. White wire connector with 2.8mm male terminals mates with item # CNX-52.
Item # THR-160
Wiring Directions
$36.95


Firewall Mount Heavy Duty Steel Foot Throttle
Heavy-duty all-steel firewall mount foot pedal throttle. Front mount foot throttle bolts to the firewall. Long life industrial grade foot throttle with improved low speed control due to its premium hall sensor. Foot pedal arm shaft is supported by sealed ball bearings. The foot pedal can be adjusted to any position by loosening the shaft nut. 6-3/8" long foot pedal arm. 2-1/2" x 1-9/16" mounting plate mounts onto any flat surface with four mounting holes. 45" long throttle cable. Wire colors: black, red, and white. White wire connector with 2.8mm male terminals mates with item # CNX-52.
Item # THR-180
Wiring Directions
$44.95



Plastic Foot Throttle
Heavy-duty plastic foot pedal throttle. Wire colors: black, red, and white. 49" long throttle cable with 3 pin white throttle to speed controller connector. Overall dimensions are 3-5/8" tall x 3-1/8" long x 2" wide. Four 1/4" ID mounting holes. Base measures 3-1/8" long x 1-3/4" wide. Base and footplate are made from 1/4" thick plastic. White wire connector with 2.8mm male terminals mates with item # CNX-52.
Item # THR-90
Wiring Directions
$23.95



Steel Foot Throttle
Heavy-duty all-steel foot pedal throttle. Wire colors: black, red and white. 49" long throttle cable with 3 pin white throttle to speed controller connector. Overall dimensions are 5-1/2" long x 1-1/2" wide. Four 1/4" ID mounting holes. Fits into 4" long x 7/8" wide rectangular mounting hole. Heavy-duty design - made from 1/16" thick plate steel. White wire connector with 2.8mm male terminals mates with item # CNX-52.
Item # THR-91
Wiring Directions
$29.95



Small Plastic Foot Throttle
Small plastic foot pedal throttle. In order to make a foot throttle this small they had to make part of it protrude under the floor when the throttle is pressed down so a small square hole needs to be in the floor underneath the throttle. Wire colors: black, red, and green. 59" long throttle cable with 3 pin white throttle to speed controller connector. Overall dimensions are 2.28" tall x 3.54" long x 2.17" wide. Three mounting holes on the bottom for mounting to the floor with screws. White wire connector with 2.8mm male terminals mates with item # CNX-52.
Item # THR-170
Wiring Directions
$19.95

Cable Pull Throttles


Cable Pull Throttle
Heavy-duty linear cable pull throttle. Great for converting scooters, motorcycles, dirt bikes, mini bikes, and go karts from gas to electric power. Made from tough glass fiber reinforced nylon. Body dimensions are 5-1/8" long x 1-1/4: wide x 3/4" high. Body has four 0.16" ID (4.1mm) mounting holes that #8 machine screws fit through. Pull cable is 6" long and has a 0.06" (1.5mm) diameter. Cable pull distance is 1". Variable speed throttle is at zero when cable is released and at full when cable is pulled out 1". Cable has stopper that prevents it from being pulled out of the body. 35" long electrical cable. Wire colors: red, black, and white. White wire connector mates with item # CNX-52.
Item # THR-99

Wiring Directions

$24.95


Rotary Cable Pull Throttle
Heavy-duty rotary cable pull throttle. Designed to work with standard gas scooter and motorcycle throttles. Great for converting scooters, motorcycles, dirt bikes, mini bikes, and go karts from gas to electric. Made from tough glass fiber reinforced nylon. Body has four mounting holes. Works with throttle (and brake) cables that have a barrel end. Variable speed throttle is at zero when cable is released and at full when cable is pulled all the way. 9" long electrical cable. Wire colors: red, black, and green. White wire connector mates with item # CNX-52.
Item # THR-159

Wiring Directions

$24.95


Cable Clamp with 0.122 Inch (3.1mm) ID
Cable clamp for cable pull throttle sold above. Connects two throttle cables together. 0.122" (3.1mm) ID x 0.315" (8mm) OD. Made from nickel plated steel. Includes socket set screw. Socket set screw requires 1.5mm Allen (hex) wrench to tighten and loosen.
Item # CCL-122
$0.85


Cable Clamp with 0.161 Inch (4.1mm) ID
Cable clamp for cable pull throttle sold above. Connects two throttle cables together. 0.161" (4.1mm) ID x 0.35" (9mm) OD. Made from nickel plated steel. Includes socket set screw. Socket set screw requires 1.5mm Allen (hex) wrench to tighten and loosen.
Item # CCL-161
$0.95


1.5mm Allen (Hex) Wrench
1.5mm Allen wrench. This type of wrench is also called a hex key. Made from hardened steel. The overall dimensions of this wrench are 1-7/8" long x 3/4' wide x 1.5mm thick.
Item # WRN-A1.5MM
$0.25

Throttles Extension Cables


3 Pin Throttle Extension Cable
Throttle extension cable with 3 terminal white connectors. Extends the cable length of throttles sold above that mate with connector item # CNX-52. Available in 1 foot, 2 foot, 3 foot, 4 foot, and 5 foot lengths. Longer cable lengths are available on request.
Item # CNX-283
1 Foot Long

$7.50


2 Foot Long

$8.00


3 Foot Long

$8.50


4 Foot Long

$9.00


5 Foot Long

$9.50


Throttle Wire Connectors


3 Pin White Throttle to Speed Controller Connector
3 pin white throttle to speed controller wire connector set with 6 matching terminals.
Item # CNX-52
$1.49


3 Pin Black Throttle to Speed Controller Connector
3 pin black throttle to speed controller wire connector set with 6 matching terminals.
Item # CNX-63

$1.29

View All Wire Connectors
