All battery chargers on this page have standard 115 Volt wall plugs.
Browse 24 Volt Battery Chargers by Amp Rating
Browse All 24 Volt Battery Chargers
|

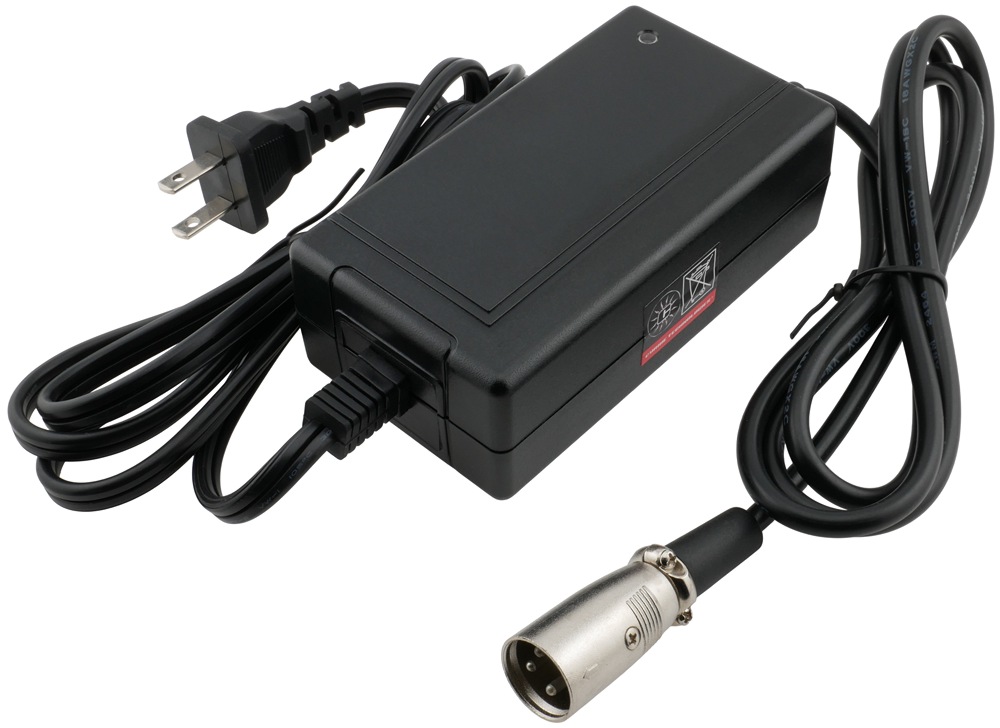

24 Volt 1.5 Amp Electric Scooter Battery Charger
Currie® 24 Volt 1.5 Amp (24V 1.5A) electric scooter/bike battery charger. Standard 115
Volt AC power input. Two-color LED indicator lamp glows red when charging and
green when charging is complete. This is an automatic battery charger which
turns itself off when the charging cycle is complete to prevent overcharging.
Made by Currie®. Works with electric scooters and bikes that have two 12 Volt
batteries or one 24 Volt battery pack.
|
|

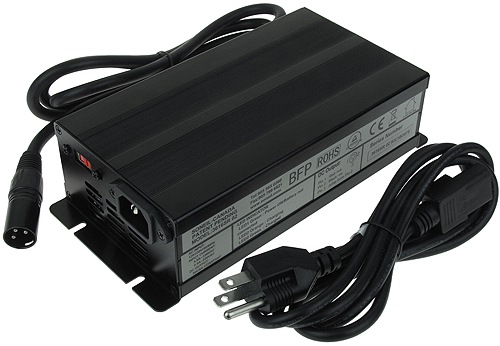

24 Volt 8 Amp
Electric Scooter Battery Charger
Universal Power Group® 24 Volt 8 Amp
(24V 8A) electric
scooter/bike battery charger. Standard 115 Volt AC power input. Three LED
indicator lamps indicate when charger is on, charging, when charging is
complete, and when there is a faulty battery. Recommended for batteries
22AH-80AH. Low voltage/current, short circuit, and reverse polarity protection.
Weight: 14.6lbs.
The four stage charging cycle uses a circuit which monitors and
controls both the output voltage and current of the charger through four
separate charge states:
I. Pre-Qualification stage: Yellow LED
flashes during this stage. Pre-Qualification test applies three tests to the
battery. Further charging is prohibited if the charger discovers a fault.
II. Constant current charge state: Yellow LED illuminated continuously
indicates that the charger is charging the battery at the full rated output of
8.0 amperes.
III. Constant Voltage charge state: Yellow LED remains
illuminated continuously until the battery reaches a fully charged condition.
IV. Float charge state: Green Float LED on. Charger will maintain battery
until the AC Power is disconnected. AC power may remain connected indefinitely.
Includes 12 Month manufacturer's warranty.
|
|
Electric Scooter
Battery Charger Power Cable
Replacement electric scooter battery
charger power cable for battery chargers that use a
3-port house/iec (computer style) power input cable. This power cable goes
between the power outlet on the wall and the battery charger.
|
Replacement Power Cable |
|
$3.95
Item # CNX-614 |
|
Battery Charger
Connectors
-
Port and Pin Numbers:
The port and pin numbers are usually embossed or imprinted on the plug-in end of
the connector.
-
2-Port Inline and
3-Port Inline - 2-port inline and 3-port inline connectors
are the most common type of battery charger connectors used on
electric scooters. They are used on Chinese-made electric
scooters and bikes including the following models: Razor,
Rad-2-Go, Boreem, E-Scooter, Scoot-N-Go, Sunl,
Terminator, X-Treme, Viper ....plus many more.
-
3-Pin XLR -
3-pin XLR connectors are commonly used on 12, 24 and 36 Volt
electric scooters. They are used on the following scooter
models: Currie, Schwinn, GT, Mongoose, Lashout, Xcaliber, Bladez, E-Boarder, Tomb Raider...plus many more.
-
Coaxial -
Coaxial connectors are commonly used on smaller child-sized 12
and 24 Volt electric scooters.
-
2-Prong -
2-prong connectors are commonly used on 12 Volt electric
scooters. They are used on the following electric scooter models
plus many others: Zappy (Zap) Classic, Sunpex E-Boarder.
-
3-Port House
- 3-port house connectors are commonly used on 24 and 36 Volt
electric scooters. They are used on the following electric
scooter model plus many others: Electra® Voy™ electric
bicycles and electric scooters.
Battery Charger Owners Guide
-
Always plug battery
charger into scooter or bike before plugging into wall outlet.
When charging is complete unplug charger from wall outlet before
unplugging from scooter or bike.
-
To get the most life
out of your scooter's batteries recharge them immediately after
every ride, even very small rides. Leaving a scooter battery in
a partially discharged state for any amount of time lowers the
useful life of the battery.
-
When a scooter is in
storage recharge the batteries at least every 3 months.
-
Our
battery chargers are designed for SLA
(Sealed Lead-Acid)
batteries. Any brand of SLA battery charger may be used on any
electric scooter or bike that uses SLA batteries as long as the
Voltage, Amperage, Connector, and the connectors Pin Polarities
are the same as the vehicles original battery charger.
-
The
Amperage of the battery charger may be decreased for longer
battery life, or increased for a quicker recharge time. (see
charging rate chart below)
-
Automatic SLA
battery chargers are designed so that they can and will not
charge defective SLA batteries. This is a safety feature. If a
defective SLA battery is attempted to be charged it could
overheat and melt or damage the equipment that it is located in.
-
Good SLA batteries
bounce back above their rated Voltage level within a few minutes
after being discharged. If a SLA battery's Voltage does not
bounce back above its rated Voltage level within a few minutes
after being discharged then it is usually considered defective
or worn out.
-
Sometimes scooter riders and rental stores want to use their
electric scooters for more than one battery cycle per day so
they use battery chargers with a higher Amp rating than the
electric scooters original battery charger. These quick rate
battery chargers are typically rated in the 3 Amp through 6 Amp
power output range and recharge most electric scooter battery
packs in 2-3 hours, however they will slightly lower the
longevity of the battery pack when compared to using a slow rate
battery charger.
-
To preserve the life
of the batteries use
a slow rate battery charger whenever possible. If a scooter is
driven for more than one battery cycle per day then using a
smaller battery charger overnight, and a larger battery charger
during the day is the best solution.
-
Do
not use automotive or motorcycle battery chargers to charge SLA
batteries. These type of battery chargers are designed for
charging wet cell lead-acid batteries and if used on SLA
batteries may cause permanent damage to the battery and
equipment due to overcharging and overheating.
|
Recommended Charging Rates for Electric
Scooter/Bike Battery Packs
|
|
12
Volt
5-8 Ah
Pack
|
12 Volt
9-12 Ah Pack
|
12
Volt
17-20 Ah
Pack
|
24 Volt
5-8 Ah
Pack
|
24 Volt
9-12 Ah
Pack
|
24 Volt
17-20 Ah
Pack
|
|
slow rate:
12V 1A
quick rate:
12V 2A
|
slow rate:
12V 1.5A
quick rate:
12V 3A
|
slow rate:
12V 3A
quick rate:
12V 6A
|
slow rate:
24V 1A
quick rate:
24V 2A
|
slow rate:
24V 1.5A
quick rate:
24V 3A
|
slow rate:
24V 3A
quick rate:
24V 6A
|
|
36
Volt
5-8 Ah
Pack
|
36 Volt
9-12 Ah
Pack
|
36
Volt
17-20 Ah
Pack
|
48 Volt
5-8 Ah
Pack
|
48 Volt
9-12 Ah
Pack
|
48 Volt
17-20 Ah
Pack
|
|
slow rate:
36V 1A
quick rate:
36V 2A
|
slow rate:
36V 1.5A
quick rate:
36V 3A
|
slow rate:
36V 3A
quick rate:
36V 6A
|
slow rate:
48V 1A
quick rate:
48V 2A
|
slow rate:
48V 1.5A
quick rate:
48V 3A
|
slow rate:
48V 3A
quick rate:
48V 6A
|
|
