Schwinn Scooter Parts > Schwinn S-500 Electric Scooter Parts

Schwinn® S-500 Electric Scooter Parts

Schwinn S-500 Electric Scooter


Battery Set for Schwinn® S-500 Electric Scooter
Set of two batteries for the Schwinn® S-500 electric scooter. Includes 12 month battery replacement warranty.

Warranty Details
Item # 06S5-BATTERIES

 $71.90

BAT-2410PK

CTE-B2410

CNX-BA0574

CNX-BA075

CHR-24V1.6AXLR

CHR-C24V1.5AXLR

CHR-24V3AXLR

CHR-C24V4AXLR

12-1/2x3.0 V-Tread Tire for Schwinn® S-500 Electric Scooter
1/2"x 3.0" V-Style tread pattern street tread tire for the Schwinn® S-500 electric scooter.
Item # TIR-1253		 $16.95


12-1/2x3.0 Knobby Tread Tire for Schwinn® S-500 Electric Scooter
12-1/2"x 3.0" knobby tread all-terrain tire for the Schwinn® S-500 CD electric scooter.
Item # TIR-1255		 $16.95

" Electric ScooterParts.com"

12-1/2x3.0 Tube With Bent Valve Stem for Schwinn® S-500 Electric Scooter
Inner tube with bent valve stem for use with 12-1/2 x 3.0" tires sold above.
Item # TUB-12.5X3.0		 $9.95


Main Wiring Harness for Schwinn® S-500 Electric Scooter
Main wiring harness with fuse for the Schwinn® S-500 electric scooter. Compatible with charger ports that have two wires. If your scooter has a charger port with three wires then purchase the CNX-XLR14 charger port sold below to use with this wiring harness.
Installation Directions
Item # CNX-BA05604

 $39.95


Charger Port for Schwinn® S-500 Electric Scooter
Battery charger port with two wires and two terminal connector for the Schwinn® S-500 electric scooter.
Item # CNX-XLR14

 $7.95


Charger Port for Schwinn® S-500 Electric Scooter
Battery charger port with three wires and three terminal connector for the Schwinn® S-500 electric scooter.
Item # CNX-XLR16		 $7.95


Charger Port Rivets for Schwinn® S-500 Electric Scooter
Set of two charger port rivets with black enamel finish for the Schwinn® S-500 electric scooter. These are blind (pop) rivets which work with all standard blind rivet setting tools.
Item # RVT-XLR2 		$0.95

Fuse for Schwinn® S-500 Electric Scooter
Fuse for the Schwinn® S-500 electric scooter. Fuse rating: 40 Amp
Item # FUS-ATO40		 $.95


Power Switch for Schwinn® S-500 Electric Scooter
On/Off power switch for the Schwinn® S-500 electric scooter.
Item # SWT-156		 $5.95


Power Switch for Schwinn® S-500 Electric Scooter
On/Off power switch for the Schwinn® S-500 electric scooter.
Item # SWT-160		 $5.95


Handlebar Grip Set for Schwinn® S-500 Electric Scooter
Handlebar grip set for the Schwinn® S-500 electric scooter.
Item # GRP-55SET		 $4.95


5 Wire Throttle for Schwinn® S-500 Electric Scooter
5 wire throttle for Schwinn® S-500 electric scooter. Three LED battery level status indicator lights. 5 terminal connector.
Item # THR-500		 $34.95


Speed Controller for Schwinn® S-500 Electric Scooter (for 5 wire throttle)
Speed controller for the Schwinn® S-500 electric scooters with 5 wire throttle connector.
Item # SPD-SD500		 $56.95




6 Wire Throttle for Schwinn® S-500 Electric Scooter
6 wire throttle for Schwinn® S-500 electric scooter. Three LED battery level status indicator lights. 6 terminal connector.
Item # THR-600
Replaces 6 wire and 7 wire throttles with 6 terminal connector. Some throttles have a round connector near the throttle and the cable needs to be followed to the controller to see if it has a 5 terminal or 6 terminal connector.
 $44.95


Replacement 6 Wire Throttle for Schwinn® S-500 Electric Scooter (No Indicator Lights)
Replacement 6 wire thumb throttle for Schwinn® S-500 electric scooters. This alternative replacement throttle has no LED indicator lights. Since there are no indicator light this throttle only has 3 wires however it has a 6 wire connector to replace the original 6 wire twist throttle.
Item # THR-600-3		 $34.95


Speed Controller for Schwinn® S-500 Electric Scooter (for 6 wire throttle)
Speed controller for the Schwinn® S-500 electric scooters with 6 wire throttle connector.
Item # SPD-SD500-6		 $59.95


Motor with 11 Tooth Sprocket for Schwinn® S-500 Electric Scooter
Motor with 11 tooth sprocket for the Schwinn® S-500 electric scooter.
Item # MOT-SD156
Compare the shape or count the number of the teeth of the original motor's sprocket to determine if it has an 11 or 15 tooth sprocket.
 $99.95


Motor with 15 Tooth Freewheel Sprocket for Schwinn® S-500 Electric Scooter
Motor with 15 tooth freewheel sprocket for the Schwinn® S-500 electric scooter.

Item # MOT-SD156FW

Compare the shape or count the number of the teeth of the original motor's sprocket to determine if it has an 11 or 15 tooth sprocket.
 $99.95


Motor Sprocket for Schwinn® S-500 Electric Scooter
Motor sprocket with roll pin for the Schwinn® S-500 Electric Scooter.
Item # SPR-2511P
Replaces 11 tooth sprockets only. Does not fit on motors with 15 tooth freewheel sprockets.
 $11.95

Motor Sprocket for Schwinn® S-500 Electric Scooter
Motor sprocket for the Schwinn® S-500 electric scooter.
Item # SPR-2515F
Replaces 15 tooth freewheel sprockets only. Does not fit on motors with non-freewheel sprockets.
 $34.95

Motor Sprocket Roll Pin for Schwinn® S-500 Electric Scooter
Motor sprocket roll pin for the Schwinn® S-500 electric scooter. Attaches sprocket onto motor shaft.
Item # HDW-3MMRP

 $0.95


Continuous Loop Chain for Schwinn® S-500 Electric Scooter
Heavy-Duty continuous loop chain for the Schwinn® S-500 electric scooter.
Item # CHN-HD25100C		 $18.00


Chain with Master Link for Schwinn® S-500 Electric Scooter
Heavy-Duty chain with master link for the Schwinn® S-500 electric scooter.
Item # CHN-HD25100		 $18.00

SPR-2589F

SPR-2590

Brake Lever for Schwinn® S-500 Electric Scooter
Original style brake lever for the Schwinn® S-500 electric scooter.
Item # LEV-32		 $14.95

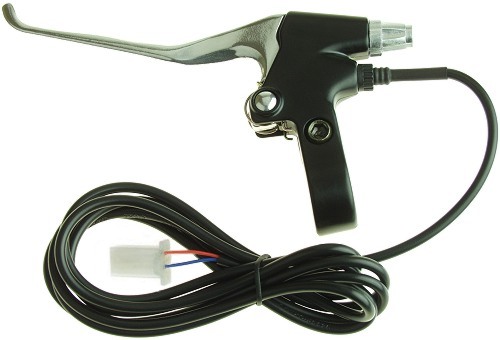

Brake Lever for IZIP® 650 and E-650 Electric Scooter
Brake lever for the IZIP® 650 and E-650 electric scooter.
Item # CTE-24414		 $17.95


Rear Brake Cable for Schwinn® S-500 Electric Scooter
Rear brake cable for the Schwinn® S-500 electric scooter.
Item # CBL-067		 $6.95


Brake for Schwinn® S-500 Electric Scooter
Chrome rear brake assembly for the Schwinn® S-500 electric scooter.
Item # BRK-90C		 $13.95


Brake for Schwinn® S-500 Electric Scooter
Black rear band brake assembly for the Schwinn® S-500 electric scooter.
Item # BRK-90B		 $13.95


Band Brake Mounting Hardware for Schwinn® S-500 Electric Scooter
Rear band brake mounting hardware for Schwinn® S-500 electric scooter.
Item # HDW-188		 $3.95


Brake Cable Pinch Bolt for Schwinn® S-500 Electric Scooter
Brake cable pinch bolt for Schwinn® S-500 electric scooter.
Item # BRK-226		 $.95

CURRIE-AXLEHARDWARE

Wheel Bearing for Schwinn® S-500 Electric Scooter
Wheel bearing for Schwinn® S-500 front and rear wheels.
Size: 12mm ID, 28mm OD, 8mm wide.
Item # BRG-6000Z		 $2.95


Headset Cup and Bearing Set for Schwinn® S-500 Electric Scooter
Front fork headset bearing set with black enamel finish for the Schwinn® S-500 electric scooter.
Item # BRG-134C		 $11.95


Headset Bearing for Schwinn® S-500 Electric Scooter
Front fork headset bearing for the Schwinn® S-500 electric scooter.
Item # BRG-134		 $2.95

SPT-300

CURRIE-SEATPOSTS

CURRIE-SEATS

Folding Handlebars for Schwinn® S-500 Electric Scooter
Folding handlebars with mounting hardware for the Schwinn® S-500 electric scooter.
Item # CTE-HANDLEBARS		 $24.95


Handlebar Tightening Bolt And Wedge for Schwinn® S-500 Electric Scooter
Handlebar tightening bolt and wedge for the Schwinn® S-500 electric scooter.
Item # HDW-350		 $10.95


Handlebar Quick-Release Mechanism for Schwinn® S-500 Electric Scooter
Folding handlebar quick-release mechanism for the Schwinn® S-500 electric scooter.
Item # CTE-QRM		 $6.95


Motor Guard for Schwinn® S-500 Electric Scooter
Motor guard protector for Schwinn® S-500 electric scooter.
Item # CTE-MOTORGUARD		 $14.95


Motor Plate for Schwinn® S-500 Electric Scooter
Motor plate for Schwinn® S-500 electric scooter.
Item # CTE-MOTORPLATE		 $32.95


Front Wheel for Schwinn® S-500 Electric Scooter
Front wheel with bearings and axle for the Schwinn® S-500 electric scooter.
Item # WHL-WH12F003A		 $29.95


Rear Wheel for Schwinn® S-500 Electric Scooter
Rear wheel with bearings and axle for the Schwinn® S-500 electric scooter.
Item # WHL-1048		 $49.95


Rear Wheel Assembly for Schwinn® S-500 Electric Scooter
Rear wheel with tire, tube, sprocket, brake, bearings, and axle for the Schwinn® S-500 electric scooter.
Item # WHL-WH9161		 $59.95


Safety Warning Bell for Schwinn® S-500 Electric Scooter
Safety warning bell. Pleasant sounding and attention grabbing chime bell sound lets others know that you are on the road in a friendly yet effective way.
Item # BEL-300

$2.95


Safety Warning Bell With Compass for Schwinn® S-500 Electric Scooter
Pleasant sounding yet attention grabbing chime bell sound. Built-in real magnetic compass. Easy to install one-piece design.
Item # BEL-360

$3.95

LIT-140

53 LED Headlight for Schwinn® S-500 Electric Scooter
Bright 53 LED headlight. Top mounted push button switch activates three different power modes: low, medium and high. High power mode turns on all 53 LED's at once. This headlight lights up the road very well at night compared to most other LED headlights. Requires 3 AA cell batteries. (batteries not included)
Item # LIT-53LED		 $11.95


5 LED Taillight for Schwinn® S-500 Electric Scooter
High output 5 LED taillight for the Schwinn® S-500 electric scooter. Push button switch on back side of taillight activates steady light or blinking light mode. Easy to install design. Mounts onto seat post. Has a belt clip so it can also be worn. Requires 2 AAA cell batteries. (batteries not included)
Item # LIT-600		 $4.95


Front Reflector for Schwinn® S-500 Electric Scooter
White safety reflector for front handlebars of the Schwinn® S-500 electric scooter.
Item # REF-150		 $4.95


Rear Reflector for Schwinn® S-500 Electric Scooter
Red safety reflector for back of the Schwinn® S-500 electric scooter.
Item # REF-160		 $3.95


Rear Reflector for Schwinn® S-500 Electric Scooter
Rear red safety reflector for the Schwinn® S-500 electric scooters. Mounts onto seat post.
Item # REF-155		 $4.95

BEL-300

BEL-360

VXT-160

VXT-714

GSL-4OZ

TIR-SL8


"When you need Electric Scooter Parts, go to: ElectricScooterParts.com"



Store Polices | Electric Scooter Repair Help | Dealer Discounts | Feedback | About Us


Electric Scooter Parts stocks a wide selection of scooter parts for the Schwinn S-500 electric scooter. The Schwinn S500 is a 24 Volt electric scooter with large 12-1/2" wheels, folding handlebars, a stand-on deck, and a removable seat. We stock parts for the Schwinn S500 electric scooter such as batteries, battery packs, battery chargers, speed controllers, throttles, fuses, switches, tires and tubes, chain, brakes, seats, and hardware. The Schwinn S-500 electric scooter is made by Currie Technologies (Currie Tech) and it is designed and engineered in the USA. The Schwinn S-500 is a high quality scooter and is worth repairing if the parts are available. We have a wide variety of electric scooter accessories for the Schwinn S500 electric scooter located in our accessories section. If you need help diagnosing a problem with your Schwinn S-500 electric scooter we recommend visiting our troubleshooting page.
