Circuit Breakers

Browse for circuit breakers by vehicle make and model.
Toggle Switch
Circuit Breakers
Mini Push Button
Circuit Breakers
Push Button
Circuit Breakers
Automatic Reset
Circuit Breakers

Toggle Switch Circuit Breakers

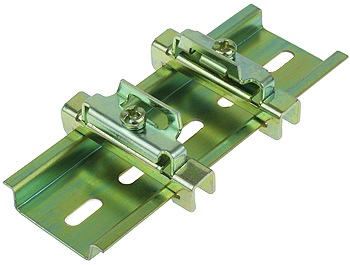

Toggle Switch Circuit Breaker Mounting Rail


Toggle Switch Circuit Breaker Mounting Rail with Two Adjustable Stoppers
On most electric scooters the toggle switch circuit breaker is located in the under-seat compartment and only held into place with the electrical wires that are attached to it so a mounting rail is not used, however, for custom applications where securely mounting one or more toggle switch circuit breakers is necessary then this mounting rail with two adjustable stoppers is available. Made from yellow zinc plated steel. The rail is 3-7/8" long and holds between one and four 11/16" wide circuit breakers. The rail can be cut shorter if needed. The circuit breaker pushes and locks onto the rail and has a button that can be pressed to release it from the rail. The two metal stoppers are pressed against the sides of the circuit breaker(s) and then their screws are tightened to secure them and the circuit breaker(s) from sliding off of the rail.
Item # CBK-RAIL
$2.95

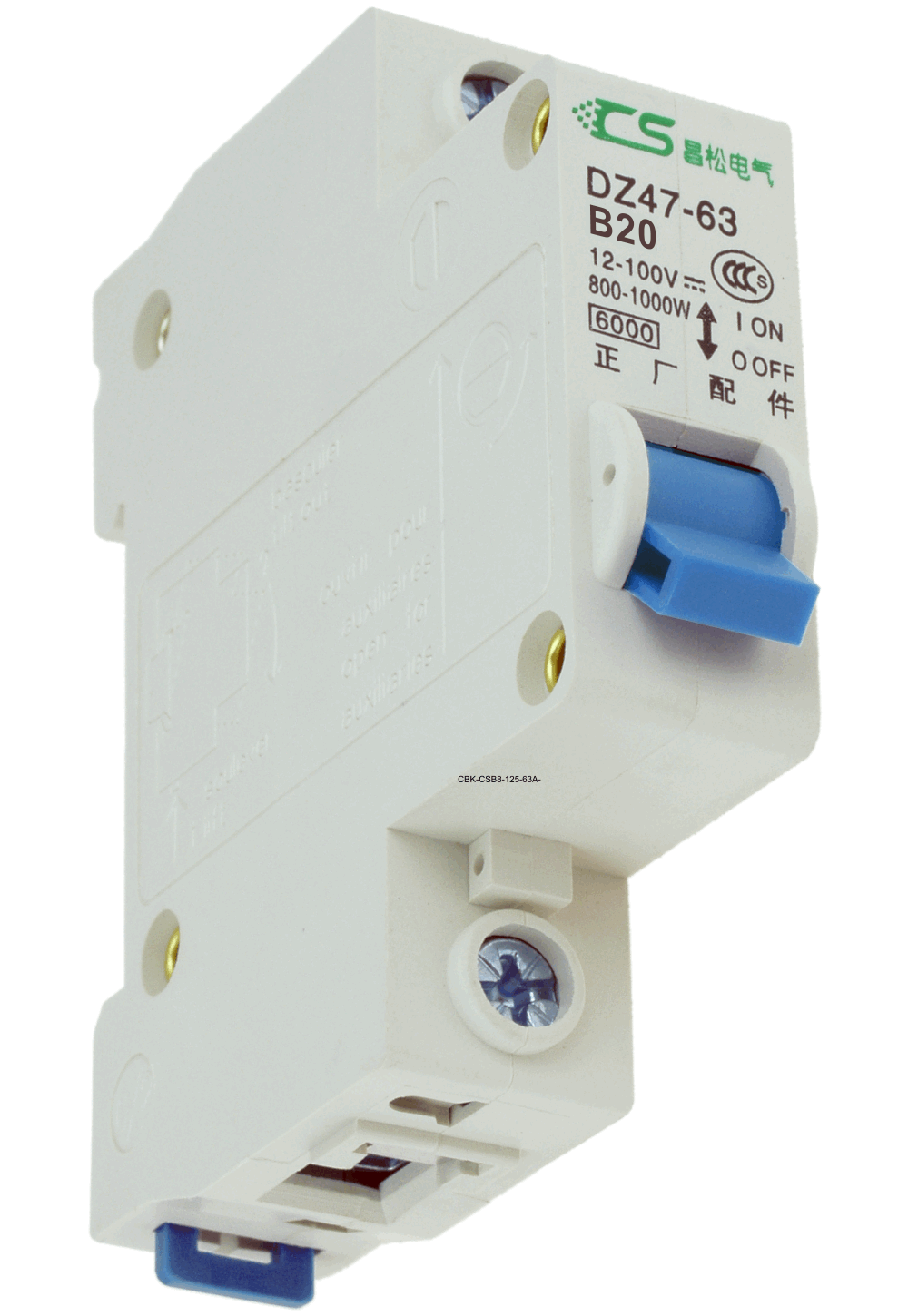

DZ47-63 1 Pole Toggle Switch Circuit Breakers



20 Amp Electric Scooter/Moped Circuit Breaker
20A 12-100 Volt DC toggle switch circuit breaker. Commonly used on larger street legal electric scooters, bikes, and mopeds. Cable clamp terminals on top and bottom sides of circuit breaker tighten with a Phillips screwdriver and accept stranded wire up to 5/16" OD (6 AWG/Gauge). DZ47-63 B20 circuit breaker. Replaces and upgrades DZ47-63 C20 circuit breakers.
Item # CBK-C20
$11.95


25 Amp Electric Scooter/Moped Circuit Breaker
25A 12-100 Volt DC toggle switch circuit breaker. Commonly used on larger street legal electric scooters, bikes, and mopeds. Cable clamp terminals on top and bottom sides of circuit breaker tighten with a Phillips screwdriver and accept stranded wire up to 5/16" OD (6 AWG/Gauge). DZ47-63 B25 circuit breaker. Replaces and upgrades DZ47-63 C25 circuit breakers.
Item # CBK-C25
$11.95


32 Amp Electric Scooter/Moped Circuit Breaker
32A 12-100 Volt DC toggle switch circuit breaker. Commonly used on larger street legal electric scooters, bikes, and mopeds. Cable clamp terminals on top and bottom sides of circuit breaker tighten with a Phillips screwdriver and accept stranded wire up to 5/16" OD (6 AWG/Gauge). DZ47-63 B32 circuit breaker. Replaces and upgrades DZ47-63 C32 circuit breakers.
Item # CBK-C32
$11.95

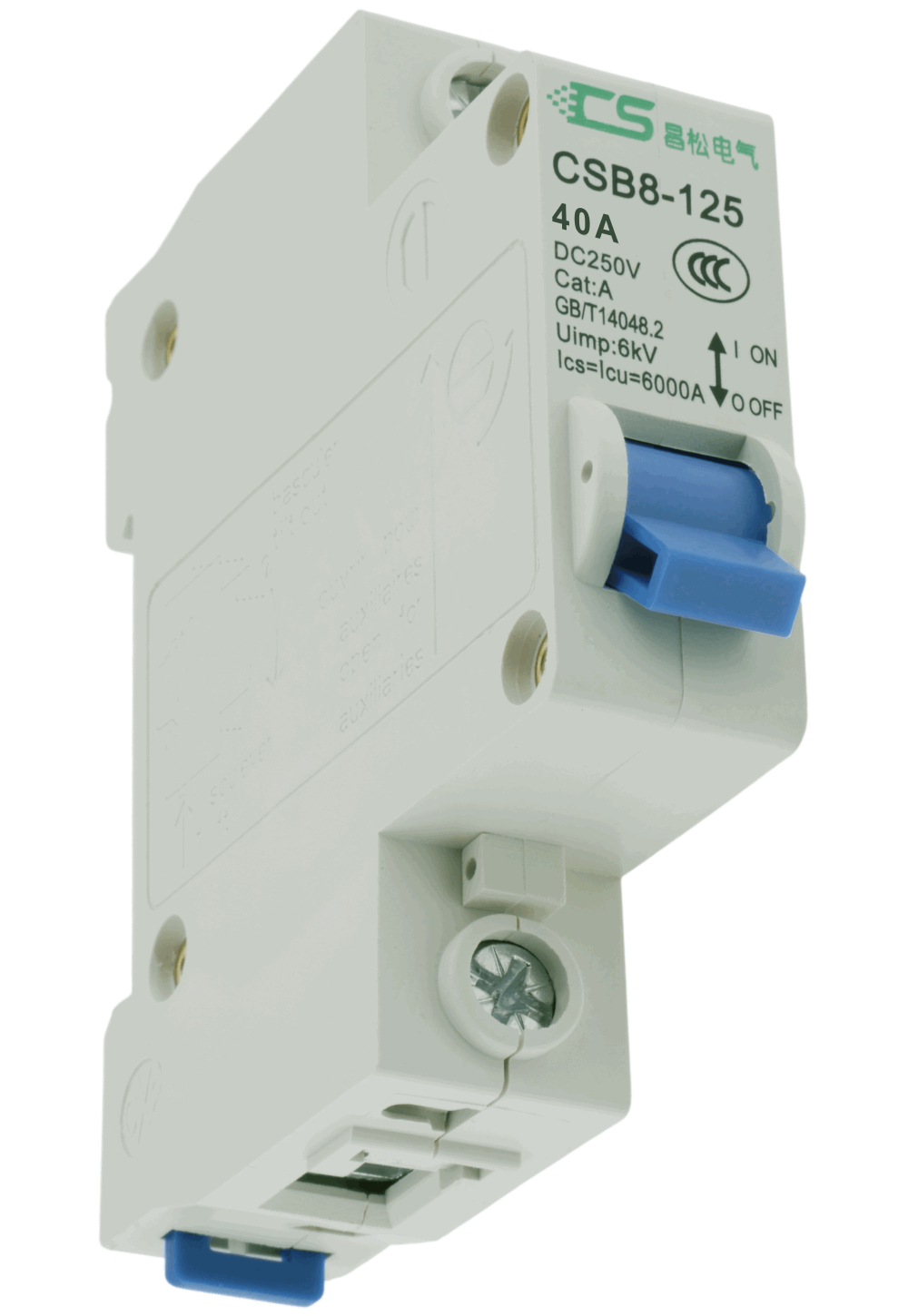

40 Amp Electric Scooter/Moped Circuit Breaker
40A 12-100 Volt DC toggle switch circuit breaker. Commonly used on larger street legal electric scooters, bikes, and mopeds. Cable clamp terminals on top and bottom sides of circuit breaker tighten with a Phillips screwdriver and accept stranded wire up to 5/16" OD (6 AWG/Gauge). DZ47-63 B40 circuit breaker. Replaces and upgrades DZ47-63 C40 circuit breakers.
Item # CBK-C40
$11.95


50 Amp Electric Scooter/Moped Circuit Breaker
50A 12-100 Volt DC toggle switch circuit breaker. Commonly used on larger street legal electric scooters, bikes, and mopeds. Cable clamp terminals on top and bottom sides of circuit breaker tighten with a Phillips screwdriver and accept stranded wire up to 5/16" OD (6 AWG/Gauge). DZ47-63 B50 circuit breaker. Replaces and upgrades DZ47-63 C50 circuit breakers.
Item # CBK-C50
$11.95


63 Amp Electric Scooter/Moped Circuit Breaker
63A 12-100 Volt DC toggle switch circuit breaker. Commonly used on larger street legal electric scooters, bikes, and mopeds. Cable clamp terminals on top and bottom sides of circuit breaker tighten with a Phillips screwdriver and accept stranded wire up to 5/16" OD (6 AWG/Gauge). DZ47-63 B63 circuit breaker. Replaces and upgrades DZ47-63 C63 circuit breakers.
Item # CBK-C63
$11.95

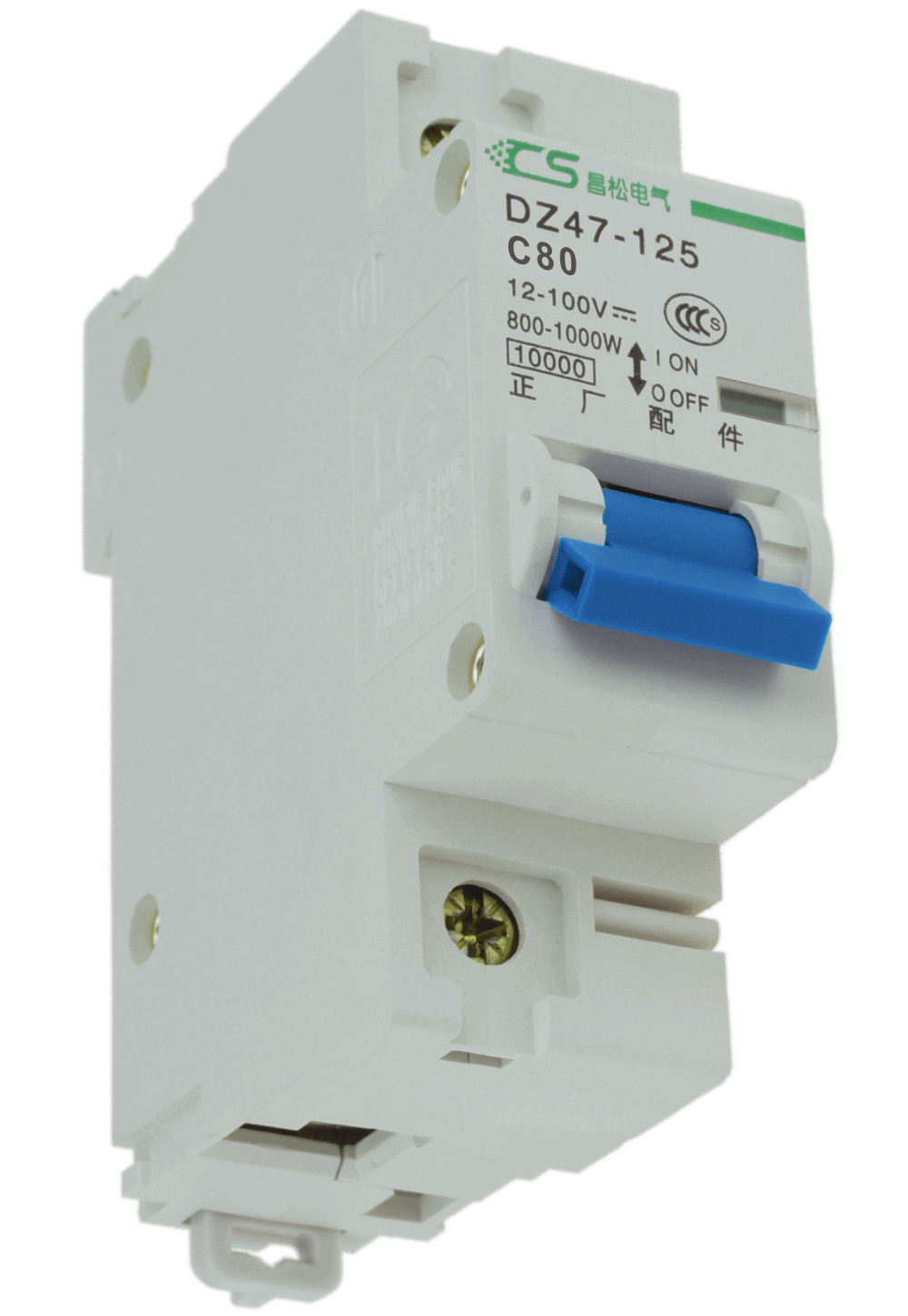

DZ47-125 1 Pole Toggle Switch Circuit Breakers



80 Amp Electric Scooter/Moped Circuit Breaker
80A 12-100 Volt DC toggle switch circuit breaker. Commonly used on larger street legal electric scooters, bikes, and mopeds. Cable clamp terminals on top and bottom sides of circuit breaker tighten with a Phillips screwdriver and accept stranded wire up to 3/8" OD (2 AWG/Gauge). DZ47-125 C80 circuit breaker.
Item # CBK-C80
$17.95

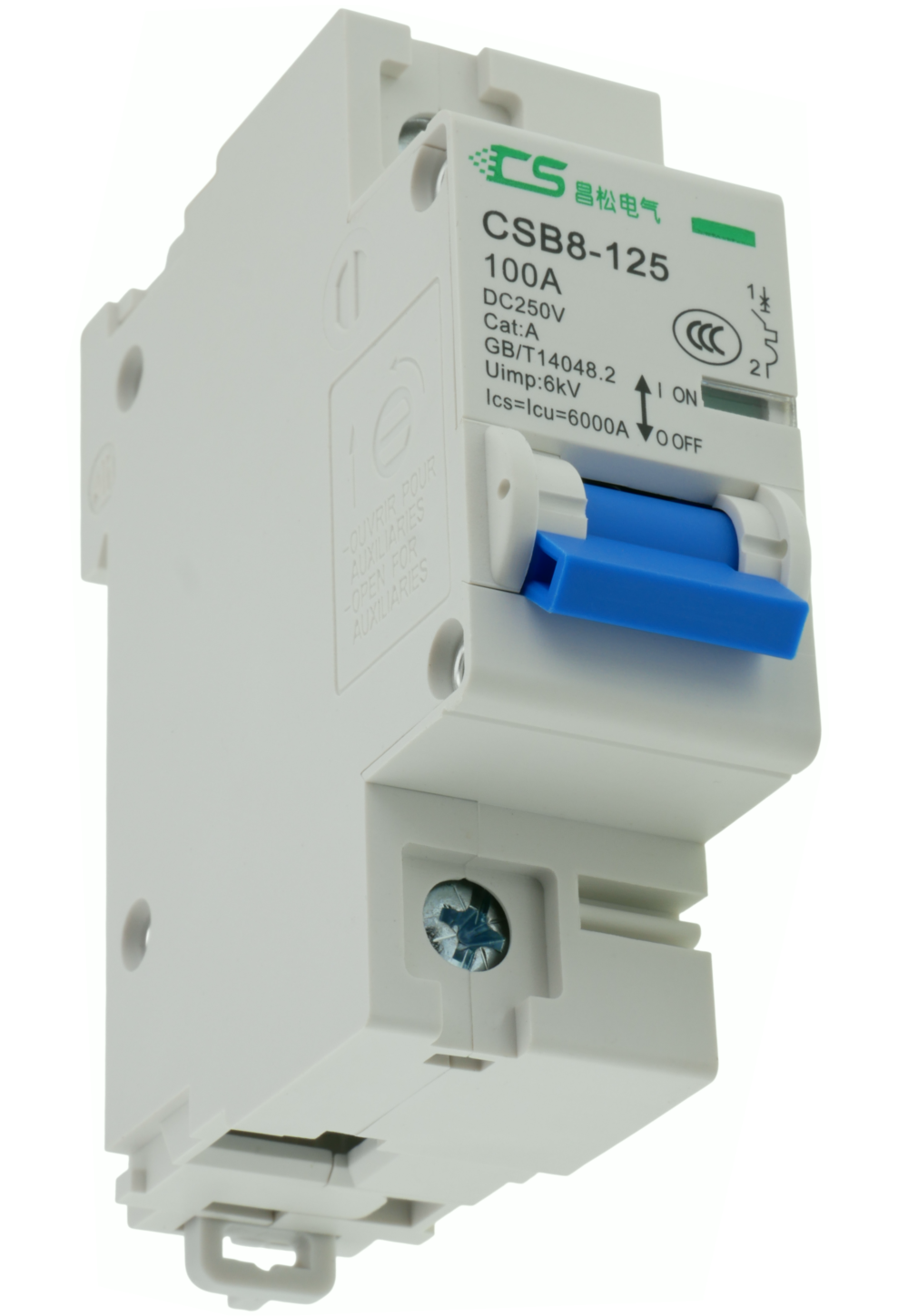

100 Amp Electric Scooter/Moped Circuit Breaker
100A 12-100 Volt DC toggle switch circuit breaker. Commonly used on larger street legal electric scooters, bikes, and mopeds. Cable clamp terminals on top and bottom sides of circuit breaker tighten with a Phillips screwdriver and accept stranded wire up to 3/8" OD (2 AWG/Gauge). DZ47-125 C100 circuit breaker.
Item # CBK-C100
$17.95

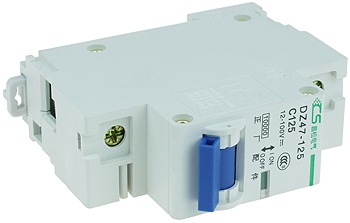

125 Amp Electric Scooter/Moped Circuit Breaker
125A 12-100 Volt DC toggle switch circuit breaker. Commonly used on larger street legal electric scooters, bikes, and mopeds. Cable clamp terminals on top and bottom sides of circuit breaker tighten with a Phillips screwdriver and accept stranded wire up to 3/8" OD (2 AWG/Gauge). DZ47-125 C125 circuit breaker.
Item # CBK-C125
$17.95

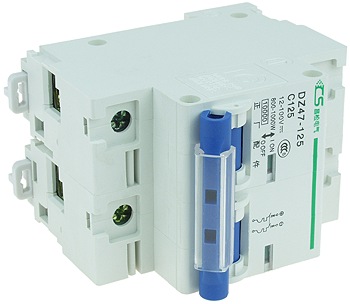

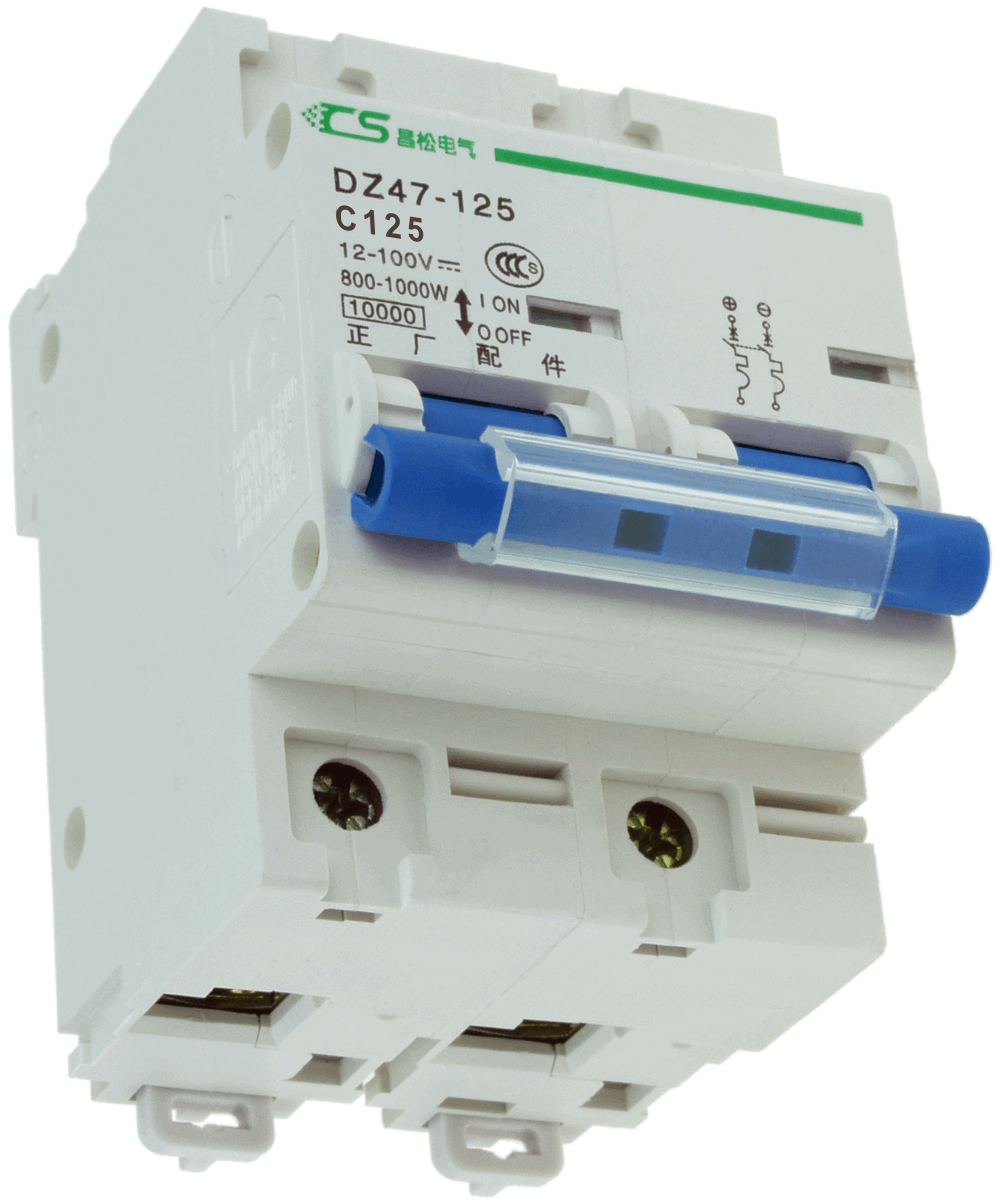

DZ47-125 2 Pole Toggle Switch Circuit Breakers



125 Amp 2 Pole Electric Scooter/Moped Circuit Breaker
125A 12-100 Volt DC 2 pole toggle switch circuit breaker. The levers of both poles are connected together so if one pole trips the other pole will turn off along with it. Commonly used on larger street legal electric scooters, bikes, and mopeds. Cable clamp terminals on top and bottom sides of circuit breaker tighten with a Phillips screwdriver and accept stranded wire up to 3/8" OD (2 AWG/Gauge). DZ47-125 C125 2P circuit breaker.
Item # CBK-C125-2P
$24.95

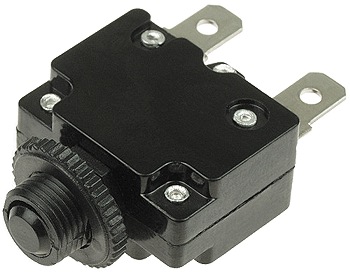

Mini Push Button Circuit Breakers

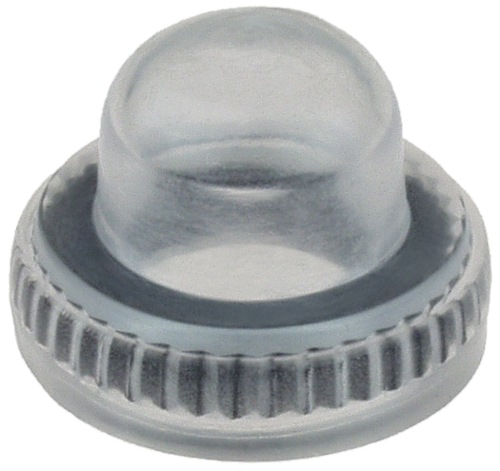

Mini Push Button Circuit Breaker Cover
Protective mini push button circuit breaker cover with round top for circuit breakers sold below. Keeps dust, water, and moisture out to prevent failure and prolong the life of the circuit breaker.
Item # CBK-COVER1
$0.50


5 Amp Electric Scooter/Bike Circuit Breaker
5A circuit breaker/reset button with plastic body. Compatible with 12V-72V DC electric scooters and bicycles. Button pops out when tripped. Two 1/4" tab terminals on back of circuit breaker. Fits 7/16" diameter opening. Includes mounting hardware.
Item # CBK-5P
$4.95


7 Amp Electric Scooter/Bike Circuit Breaker
7A circuit breaker/reset button with plastic body. Compatible with 12V-72V DC electric scooters and bicycles. Button pops out when tripped. Two 1/4" tab terminals on back of circuit breaker. Fits 7/16" diameter opening. Includes mounting hardware.
Item # CBK-7P
$5.95


10 Amp Electric Scooter/Bike Circuit Breaker
10A circuit breaker/reset button with plastic body. Compatible with 12V-72V DC electric scooters and bicycles. Button pops out when tripped. Two 1/4" tab terminals on back of circuit breaker. Fits 7/16" diameter opening. Includes mounting hardware.
Item # CBK-10P
$5.95


15 Amp Electric Scooter/Bike Circuit Breaker
15A circuit breaker/reset button with plastic body. Compatible with 12V-72V DC electric scooters and bicycles. Button pops out when tripped. Two 1/4" tab terminals on back of circuit breaker. Fits 7/16" diameter opening. Includes mounting hardware.
Item # CBK-15P
$5.95


20 Amp Electric Scooter/Bike Circuit Breaker
20A circuit breaker/reset button with plastic body. Compatible with 12V-72V DC electric scooters and bicycles. Button pops out when tripped. Two 1/4" tab terminals on back of circuit breaker. Fits 7/16" diameter opening. Includes mounting hardware.
Item # CBK-20P
$5.95


25 Amp Electric Scooter/Bike Circuit Breaker
25A circuit breaker/reset button with plastic body. Compatible with 12V-72V DC electric scooters and bicycles. Button pops out when tripped. Two 1/4" tab terminals on back of circuit breaker. Fits 7/16" diameter opening. Includes mounting hardware.
Item # CBK-25P
$5.95


Push Button Circuit Breakers with Tab Terminals



Flat Top Push Button Circuit Breaker Cover
Protective push button circuit breaker cover with flat top for circuit breakers sold below. Keeps dust, water, and moisture out to prevent failure and prolong the life of the circuit breaker.
Item # CBK-COVER2
$0.95


Round Top Push Button Circuit Breaker Cover
Protective push button circuit breaker cover with round top for circuit breakers sold below. Keeps dust, water, and moisture out to prevent failure and prolong the life of the circuit breaker.
Item # CBK-COVER3
$0.95


10 Amp Electric Scooter/Bike Circuit Breaker
10A circuit breaker/reset button. Compatible with 12V-72V DC electric scooters and bicycles. Button pops out when tripped. Push to reset. Two 1/4" tab terminals on back side of circuit breaker. Fits 7/16" diameter opening. Includes mounting hardware.
Item # CBK-10
$7.95


15 Amp Electric Scooter/Bike Circuit Breaker
15A circuit breaker/reset button. Compatible with 12V-72V DC electric scooters and bicycles. Button pops out when tripped. Push to reset. Two 1/4" tab terminals on back side of circuit breaker. Fits 7/16" diameter opening. Includes mounting hardware.
Item # CBK-15
$7.95


20 Amp Electric Scooter/Bike Circuit Breaker
20A circuit breaker/reset button. Compatible with 12V-72V DC electric scooters and bicycles. Button pops out when tripped. Push to reset. Two 1/4" tab terminals on back side of circuit breaker. Fits 7/16" diameter opening. Includes mounting hardware.
Item # CBK-20
$8.95


25 Amp Electric Scooter/Bike Circuit Breaker
25A circuit breaker/reset button. Compatible with 12V-72V DC electric scooters and bicycles. Button pops out when tripped. Push to reset. Two 1/4" tab terminals on back side of circuit breaker. Fits 7/16" diameter opening. Includes mounting hardware.
Item # CBK-25
$8.95


30 Amp Electric Scooter/Bike Circuit Breaker
30A circuit breaker/reset button. Compatible with 12V-72V DC electric scooters and bicycles. Button pops out when tripped. Push to reset. Two 1/4" tab terminals on back side of circuit breaker. Fits 7/16" diameter opening. Includes mounting hardware.
Item # CBK-30
$8.95


35 Amp Electric Scooter/Bike Circuit Breaker
35A circuit breaker/reset button. Compatible with 12V-72V DC electric scooters and bicycles. Button pops out when tripped. Push to reset. Two 1/4" tab terminals on back side of circuit breaker. Fits 7/16" diameter opening. Includes mounting hardware.
Item # CBK-35
$9.95


40 Amp Electric Scooter/Bike Circuit Breaker
40A circuit breaker/reset button. Compatible with 12V-72V DC electric scooters and bicycles. Button pops out when tripped. Push to reset. Two 1/4" tab terminals on back side of circuit breaker. Fits 7/16" diameter opening. Includes mounting hardware.
Item # CBK-40
$9.95


45 Amp Electric Scooter/Bike Circuit Breaker
45A circuit breaker/reset button. Compatible with 12V-72V DC electric scooters and bicycles. Button pops out when tripped. Push to reset. Two 1/4" tab terminals on back side of circuit breaker. Fits 7/16" diameter opening. Includes mounting hardware.
Item # CBK-45
$9.95


50 Amp Electric Scooter/Bike Circuit Breaker
50A circuit breaker/reset button. Compatible with 12V-72V DC electric scooters and bicycles. Button pops out when tripped. Push to reset. Two 1/4" tab terminals on back side of circuit breaker. Fits 7/16" diameter opening. Includes mounting hardware.
Item # CBK-50
$9.95

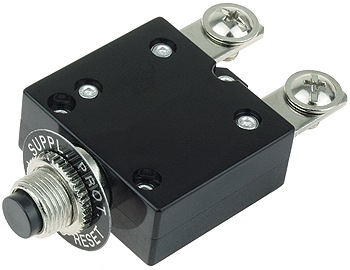

Push Button Circuit Breakers with Screw Terminals



Push Button Circuit Breaker Cover
Protective push button circuit breaker cover for circuit breakers sold below. Keeps dust and water out to  prevent failure and prolong the life of the circuit breaker.
Item # CBK-COVER2
$0.95


Round Top Push Button Circuit Breaker Cover
Protective push button circuit breaker cover with round top for circuit breakers sold below. Keeps dust, water, and moisture out to prevent failure and prolong the life of the circuit breaker.
Item # CBK-COVER3
$0.95


40 Amp Electric Scooter/Bike Circuit Breaker
40A circuit breaker/reset button. Compatible with 12V-72V DC electric scooters and bicycles. Button pops out when tripped. Push to reset. Two screw terminal connectors on back side of circuit breaker for #10 ring terminals. Fits 7/16" diameter opening. Includes mounting hardware.
Item # CBK-40ST
$11.95


50 Amp Electric Scooter/Bike Circuit Breaker
50A circuit breaker/reset button. Compatible with 12V-72V DC electric scooters and bicycles. Button pops out when tripped. Push to reset. Two screw terminal connectors on back side of circuit breaker for #10 ring terminals. Fits 7/16" diameter opening. Includes mounting hardware.
Item # CBK-50ST
$11.95


60 Amp Electric Scooter/Bike Circuit Breaker
60A circuit breaker/reset button. Compatible with 12V-72V DC electric scooters and bicycles. Button pops out when tripped. Push to reset. Two screw terminal connectors on back side of circuit breaker for #10 ring terminals. Fits 7/16" diameter opening. Includes mounting hardware.
Item # CBK-60ST
$11.95


70 Amp Electric Scooter/Bike Circuit Breaker
70A circuit breaker/reset button. Compatible with 12V-72V DC electric scooters and bicycles. Button pops out when tripped. Push to reset. Two screw terminal connectors on back side of circuit breaker for #10 ring terminals. Fits 7/16" diameter opening. Includes mounting hardware.
Item # CBK-70ST
$11.95

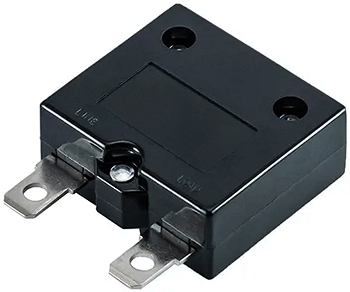

Automatic Reset Circuit Breakers



30 Amp Electric Scooter/Bike Automatic Reset Circuit Breaker
30A automatically resetting circuit breaker with plastic body. Compatible with 12V-72V DC electric scooters and bicycles. Auto resets itself in around one minute. Two 1/4" quick connect tab terminals.
Item # CBK-30AR
$9.95

Related Items: Crimp Connectors | Wire | Fuses | Fuse Holders
