Meters

Browse for meters by vehicle make and model.
Handlebar Meters Volt Meters Amp Meters Volt & Amp Meters Multi Meters

Handlebar Meters

Handlebar Meters for Lead Acid Battery Packs


24 Volt Battery Status, Power On, and Headlight On Indicator
Handlebar mount 24 Volt battery status, power on, and headlight on indicator. Battery status indicator is calibrated for lead acid battery packs. Top; yellow light for 25% and three green lights for 50%, 75%, and 100% battery status. Bottom; red light for low battery warning, green light for power on, and yellow light for headlight on. 68" power cord. Red wire +24V power on, black wire ground, and white wire +24V headlight on. Fits standard 22mm (7/8") bicycle and scooter handlebars.

Wiring Directions
Item # MET-W24V

$14.95


36 Volt Battery Status, Power On, and Headlight On Indicator
Handlebar mount 36 Volt battery status, power on, and headlight on indicator. Battery status indicator is calibrated for lead acid battery packs. Top; yellow light for 25% and three green lights for 50%, 75%, and 100% battery status. Bottom; red light for low battery warning, green light for power on, and yellow light for headlight on. 68" power cord. Red wire +36V power on, black wire ground, and white wire +36V headlight on. Fits standard 22mm (7/8") bicycle and scooter handlebars.

Wiring Directions
Item # MET-W36V

$14.95


48 Volt Battery Status, Power On, and Headlight On Indicator
Handlebar mount 48 Volt battery status, power on, and headlight on indicator. Battery status indicator is calibrated for lead acid battery packs. Top; yellow light for 25% and three green lights for 50%, 75%, and 100% battery status. Bottom; red light for low battery warning, green light for power on, and yellow light for headlight on. 68" power cord. Red wire +48V power on, black wire ground, and white wire +48V headlight on. Fits standard 22mm (7/8") bicycle and scooter handlebars.

Wiring Directions
Item # MET-W48V

$14.95

Handlebar Meters for Lithium Battery Packs


24 Volt Battery Status, Power On, and Headlight On Indicator
Handlebar mount 24 Volt battery status, power on, and headlight on indicator. Battery status indicator is calibrated for lithium-ion and LiFePO4 battery packs. Top; yellow light for 25% and three green lights for 50%, 75%, and 100% battery status. Bottom; red light for low battery warning, green light for power on, and yellow light for headlight on. 68" power cord. Red wire +24V power on, black wire ground, and white wire +24V headlight on. Fits standard 22mm (7/8") bicycle and scooter handlebars.

Wiring Directions
Item # MET-W24V-LI

$14.95


36 Volt Battery Status, Power On, and Headlight On Indicator
Handlebar mount 36 Volt battery status, power on, and headlight on indicator. Battery status indicator is calibrated for lithium-ion and LiFePO4 battery packs. Top; yellow light for 25% and three green lights for 50%, 75%, and 100% battery status. Bottom; red light for low battery warning, green light for power on, and yellow light for headlight on. 68" power cord. Red wire +36V power on, black wire ground, and white wire +36V headlight on. Fits standard 22mm (7/8") bicycle and scooter handlebars.

Wiring Directions
Item # MET-W36V-LI

$14.95


48 Volt Battery Status, Power On, and Headlight On Indicator
Handlebar mount 48 Volt battery status, power on, and headlight on indicator. Battery status indicator is calibrated for lithium-ion and LiFePO4 battery packs. Top; yellow light for 25% and three green lights for 50%, 75%, and 100% battery status. Bottom; red light for low battery warning, green light for power on, and yellow light for headlight on. 68" power cord. Red wire +48V power on, black wire ground, and white wire +48V headlight on. Fits standard 22mm (7/8") bicycle and scooter handlebars.

Wiring Directions
Item # MET-W48V-LI

$14.95

Volt Meters



12-60 Volt DC LED Digital Voltmeter with Battery Level Indicator
Waterproof, dustproof, and shockproof digital Voltmeter. 12-60 Volt DC Voltage range. Works with 12 Volt, 24 Volt, 36 Volt, 48 Volt, and 60 Volt lead-acid battery packs. Textured anti-glare display screen for easy daytime viewing. Reverse polarity protection. Refresh rate 300ms/s. Power consumption 5-15mA. 7" long power leads. Panel mount design. Cutout size 46mm wide x 27mm high. Dimensions: 48mm x 29mm x 22mm. No mounting hardware required. Has built-in plastic mounting tabs that work with panels up to 1/8" thick and can be removed for mounting into thicker panels.
Item # MET-60V-BLUE (Blue)
Item # MET-60V-RED (Red)

Display Parameters

Blue $11.95



Red $11.95

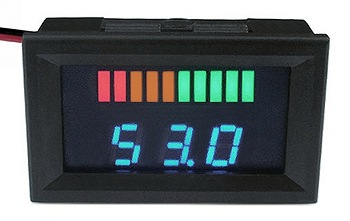

7-100 Volt DC LED Digital Voltmeter with Battery Level Indicator
Shockproof digital Voltmeter. 7-100 Volt DC Voltage range. Works with 12 Volt, 24 Volt, 36 Volt, 48 Volt, 60 Volt, 72 Volt, and 84 Volt battery packs. User programmable for lead-acid, lithium-ion, or nickel-metal hydride battery packs. Programming directions included. Textured anti-glare display screen for easy daytime viewing. Three 5/16" tall LED Voltage displays. Reverse polarity protection. Refresh rate 500ms/s. Power consumption 15-20mA. Includes removable 7" long power leads. Panel mount design. Cutout size 36mm wide x 20mm high. Dimensions: 40mm x 25mm x 23mm. No mounting hardware required. Has built-in plastic mounting tabs that work with panels up to 1/8" thick and can be removed for mounting into thicker panels.
Item # MET-100V-BLUE (Blue)
Item # MET-100V-RED (Red)
Programming Directions:
PDF
Blue $14.95



Red $14.95





15-120 Volt DC LED Digital Voltmeter
Waterproof, dustproof and shockproof digital Voltmeter. 15-120 Volt DC Voltage range. Works with 24 Volt, 36 Volt, 48 Volt, 60 Volt, 72 Volt, 84 Volt, and 96 Volt battery packs. Textured anti-glare display screen for easy daytime viewing. Three 9/16" tall LED displays. Reverse polarity protection. Refresh rate 500ms/s. Power consumption 15-20mA. Screw terminal connectors on back side of meter. Includes removable 7" long power leads. Panel mount design. Cutout size 36mm wide x 20mm high. Dimensions: 40mm x 25mm x 23mm. No mounting hardware required. Has built-in plastic mounting tabs that work with panels up to 1/8" thick and can be removed for mounting into thicker panels.
Item # MET-120V-BLUE (Blue)
Item # MET-120V-GREEN (Green)
Item # MET-120V-RED (Red)
Blue $14.95



Green $14.95



Red $14.95


Amp Meters


50 Amp DC Amp Meter
50 Amp DC rectangular face panel mount Ammeter. Panel mount design. Includes external shunt. Threaded brass post connectors on back side of meter. Dimensions: 2-13/16" wide x 2-7/16" high x 1-3/4" deep. Fits into 2" diameter round hole. Includes mounting hardware. This Amp meter works with any DC Voltage range.

Wiring Directions
Item # MET-50A

$19.95

Combination Volt and Amp Meters

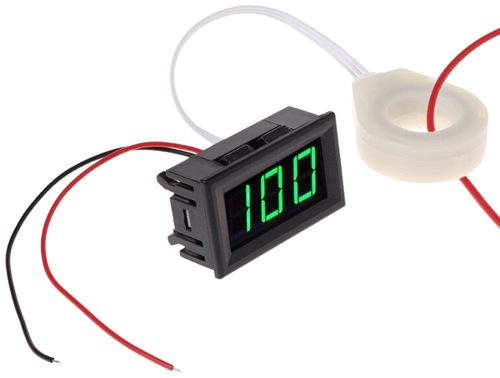

Dual Purpose Ammeter Plus Voltmeter, 100 Amp DC Digital Amp Meter with Isolation Transformer plus 5-120 Volt DC Voltmeter
Can be used as a dual purpose Ammeter plus Voltmeter with alternating display, or as a standalone Ammeter, or as a standalone Voltmeter. Isolation transformer accepts wires up to 3/4" OD and any size smaller. Operates on 5-120 Volts DC. Panel mount design. Optional 6 foot long extension cables are available so the isolation transformer can be used up to 6 feet away from where the meter is mounted.

Operating Directions
Item # MET-100A-ISO

$15.95


Amp Meter Isolation Transformer 6 Foot Extension Cable
6 foot long extension cable for item # MET-100A-ISO listed above.
Item # MET-CABLE6
$4.95

Multiple Function Meters


Round Speedometer with 24 Volt Battery Level Indicator plus Power, Headlight, and Turn Signal Indicators
Plastic body with chrome plated finish. Convex shaped polycarbonate lens. Chrome plated steel bezel. Speedometer range 0-60 km/h. LED indicator lights for power, headlight, and turn signal. Four stage battery pack status level LED indicator lights. 14" long power cable.
Dimensions: 3" diameter x 3-1/2" length

Wiring Directions
Item # ASP-124

$19.95


Round Speedometer with 36 Volt Battery Level Indicator plus Power, Headlight, and Turn Signal Indicators
Plastic body with chrome plated finish. Convex shaped polycarbonate lens. Chrome plated steel bezel. Speedometer range 0-60 km/h. LED indicator lights for power, headlight, and turn signal. Four stage battery pack status level LED indicator lights. 14" long power cable.
Dimensions: 3" diameter x 3-1/2" length

Wiring Directions
Item # ASP-136

$19.95


Round Speedometer with 48 Volt Battery Level Indicator plus Power, Headlight, and Turn Signal Indicators
Plastic body with chrome plated finish. Convex shaped polycarbonate lens. Chrome plated steel bezel. Speedometer range 0-60 km/h. LED indicator lights for power, headlight, and turn signal. Four stage battery pack status level LED indicator lights. 14" long power cable.
Dimensions: 3" diameter x 3-1/2" length

Wiring Directions
Item # ASP-148

$19.95
