LiFePO4, Li-ion and LiPo Battery Chargers
All battery chargers on this page have standard 120 Volt wall plugs.

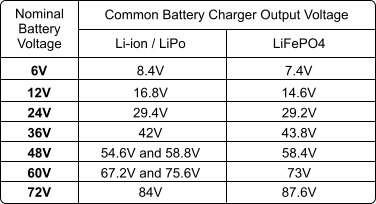

Lithium Battery Charger Chart
| Nominal Voltage |
Battery Type |
Number of Cells |
Battery Pack Voltage |
Charger Voltage |
| 6V |
3.7V Li-ion / LiPo |
2 |
7.4V |
8.4V |
| 3.2V LiFePO4 |
2 |
6.4V |
7.4V |
| 12V |
3.7V Li-ion / LiPo |
4 |
14.8V |
16.8V |
| 3.2V LiFePO4 |
4 |
12.8V |
14.6V |
| 24V |
3.7V Li-ion / LiPo |
6 |
22.2V |
25.2V |
| 3.7V Li-ion / LiPo |
7 |
25.9V |
29.4V |
| 3.2V LiFePO4 |
8 |
25.6V |
29.2V |
| 36V |
3.7V Li-ion / LiPo |
10 |
37.0V |
42.0V |
| 3.7V Li-ion / LiPo |
11 |
40.7V |
46.2V |
| 3.2V LiFePO4 |
11 |
35.2V |
40.15V |
| 3.2V LiFePO4 |
12 |
38.4V |
43.8V |
| 48V |
3.7V Li-ion / LiPo |
12 |
44.4V |
50.4V |
| 3.7V Li-ion / LiPo |
13 |
48.1V |
54.6V |
| 3.7V Li-ion / LiPo |
14 |
51.8V |
58.8V |
| 3.2V LiFePO4 |
15 |
48.0V |
54.8V |
| 3.2V LiFePO4 |
16 |
51.2V |
58.4V |
| 60V |
3.7V Li-ion / LiPo |
15 |
55.5V |
63.0V |
| 3.7V Li-ion / LiPo |
16 |
59.2V |
67.2V |
| 3.7V Li-ion / LiPo |
17 |
62.9V |
71.4V |
| 3.2V LiFePO4 |
20 |
64.0V |
73.0V |
| 72V |
3.7V Li-ion / LiPo |
20 |
74.0V |
84.0V |
| 3.2V LiFePO4 |
24 |
76.8V |
87.6V |
Output Plugs
 |
 |
 |
 |
 |
 |
|
Coaxial Plug |

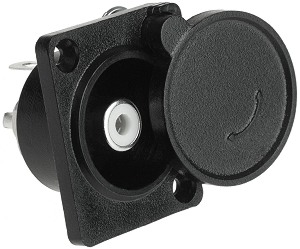

RCA Plug |
XLR Plug |
House Plug |
*3P Plug |
*3PS Plug |

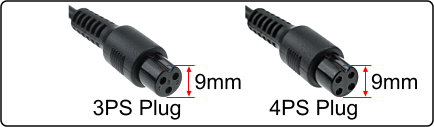

*3P Plug has a 1/2" OD end and 3PS Plug has a 3/8" OD end.
7.4V Output
|
7.4V 1A
|
Battery Charger for 6 Volt LiFePO4 Batteries, 7.4V 1A Output
Battery charger for 6 Volt LiFePO4 batteries. Wall type charger.Input Power: 100-240VAC
Output Voltage: 7.4V (7.4 Volts)Output Amperage: 1A (1 Amps / 1000mA)
Item # CHR-6V1AL74W-CX
|
With Coaxial Plug $14.95
|
8.4V Output
|
8.4V 1A
|
Battery Charger for 6 Volt Li-ion and LiPo Batteries, 8.4V 1A Output
Battery charger for 6 Volt Li-ion and LiPo batteries. Wall type charger.
Input Power: 100-240VAC
Output Voltage: 8.4V (8.4 Volts)
Output Amperage: 1A (1 Amps / 1000mA)
Item # CHR-6V1AL84W-CX |
With Coaxial Plug $14.95
|
14.6V Output
|
14.6V 1A
|
Battery Charger for 12 Volt LiFePO4 Batteries, 14.6V 1A Output
Battery charger for 12 Volt LiFePO4 batteries. Wall type charger. Multiple
output plug connector options.Input Power: 100-240VAC
Output Voltage: 14.6V (14.6 Volts)Output Amperage: 1A (1 Amps / 1000mA)
Item # CHR-12V1AL146W
 |
With Coaxial Plug $14.95
With RCA Plug $19.95
With XLR Plug $19.95
With House Plug $19.95
With 3P Plug $19.95
|
|
14.6V 2A
|

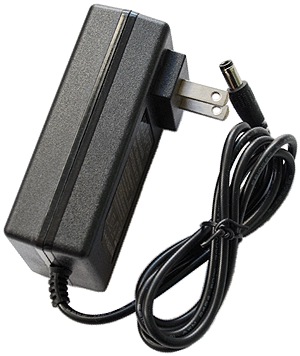

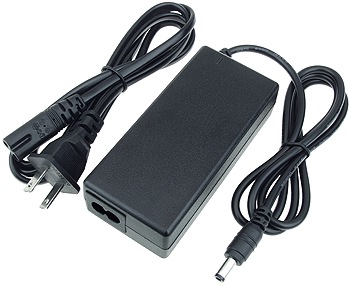

Battery Charger for 12 Volt LiFePO4 Batteries, 14.6V 2A Output
Battery charger for 12 Volt LiFePO4 batteries. Wall type charger. Multiple
output plug connector options.
Input Power: 100-240VAC
Output Voltage: 14.6V (14.6 Volts)
Output Amperage: 2A (2 Amps / 2000mA)
Item # CHR-12V2AL146W
|
With Coaxial Plug $19.95
With RCA Plug $24.95
With XLR Plug $24.95
With House Plug $24.95
With 3P Plug $24.95
|
|
14.6V 2A
|
Battery Charger for 12 Volt LiFePO4 Batteries, 14.6V 2A Output
Battery charger for 12 Volt LiFePO4 batteries. Floor type charger. Available with Coaxial plug, RCA
plug, XLR plug, or House plug output connector.Input Power: 100-240VAC
Output Voltage: 14.6V (14.6 Volts)Output Amperage: 2A (2 Amps)
Item # CHR-12V2AL146F
|
With Coaxial Plug $29.95
With RCA Plug $29.95
With XLR Plug $29.95
With House Plug $29.95
With 3P Plug $29.95
|
|
14.6V 3A
|
Battery Charger for 12 Volt LiFePO4 Batteries, 14.6V 3A Output
Battery charger for 12 Volt LiFePO4 batteries. Floor type charger. Available with Coaxial plug, RCA
plug, XLR plug, or House plug output connector.Input Power: 100-240VAC
Output Voltage: 14.6V (14.6 Volts)Output Amperage: 3A (3 Amps)
Item # CHR-12V3AL146
|
With Coaxial Plug $29.95
With RCA Plug $29.95
With XLR Plug $29.95
With House Plug $29.95
With 3P Plug $29.95
|

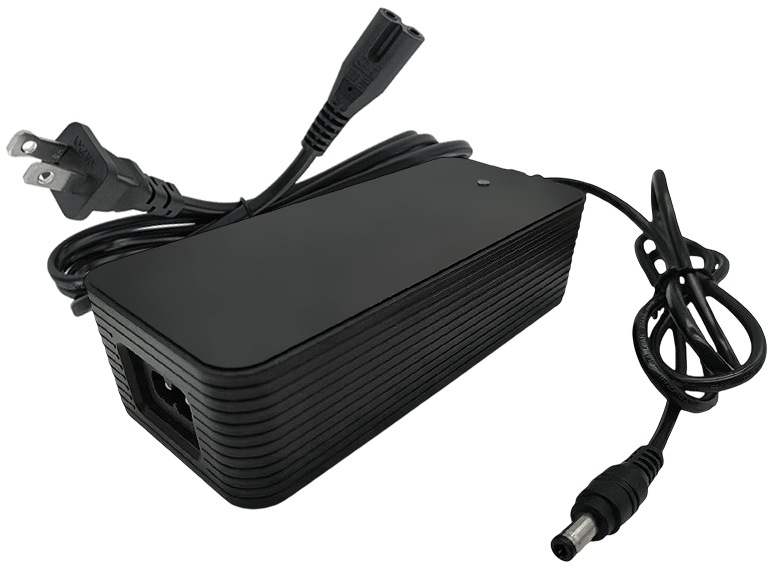

14.6V 5A
|

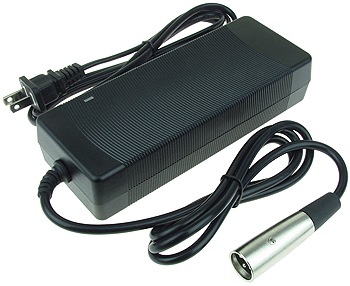

Battery Charger for 12 Volt LiFePO4 Batteries, 14.6V 5A Output
Battery charger for 12 Volt LiFePO4 batteries. Available with Coaxial plug, RCA
plug, XLR plug, House plug, or 3P plug output connector.Input Power:
100-240VAC
Output Voltage: 14.6V (14.6 Volts)Output Amperage: 5A (5 Amps)
Item # CHR-12V5AL146
|
With Coaxial Plug $34.95
With RCA Plug $34.95
With XLR Plug $34.95
With House Plug $34.95
With 3P Plug $34.95
|
16.8V Output
|
16.8V 1A
|
Battery Charger for 12 Volt LiFePO4 Batteries, 16.8V 1A Output
Battery charger for 12 Volt LiFePO4 batteries. Wall type charger. Multiple
output plug connector options.Input Power: 100-240VAC
Output Voltage: 16.8V (16.8 Volts)Output Amperage: 1A (1 Amps / 1000mA)
Item # CHR-12V1AL168W
|
With Coaxial Plug $14.95
With RCA Plug $19.95
With XLR Plug $19.95
With House Plug $19.95
With 3P Plug $19.95
|
|
16.8V 2A
|
Battery Charger for 12 Volt LiFePO4 Batteries, 16.8V 2A Output
Battery charger for 12 Volt LiFePO4 batteries. Wall type charger. Multiple
output plug connector options.
Input Power: 100-240VAC
Output Voltage: 16.8V (16.8 Volts)
Output Amperage: 2A (2 Amps / 2000mA)
Item # CHR-12V2AL168W
|
With Coaxial Plug $19.95
With RCA Plug $24.95
With XLR Plug $24.95
With House Plug $24.95
With 3P Plug $24.95
|
29.2V Output
|
29.2V 2A
|

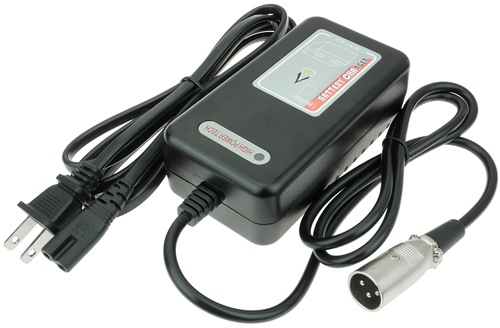

Battery Charger for 24 Volt LiFePO4 Batteries, 29.2V 2A Output
High Power brand model HP0060W(L2) battery charger with XLR plug for 24 Volt LiFePO4 batteries.
Input Power: 100-240VAC
Output Voltage: 29.2V (29.2 Volts)
Output Amperage: 2A (2 Amps)
Item # CHR-HP24V2AL292-XLR |
With XLR Plug $59.95
|
|
29.2V 2A
|
Battery Charger for 24 Volt LiFePO4 Batteries, 29.2V 2A Output
Battery charger for 24 Volt LiFePO4 batteries. Available with RCA plug, XLR
plug, or House plug output connector.
Input Power: 100-120VAC
Output Voltage: 29.2V (29.2 Volts)
Output Amperage: 2A (2 Amps)
Item # CHR-24V2AL292
|
With Coaxial Plug $59.95
With RCA Plug$59.95
With XLR Plug $59.95
With House Plug $59.95
With 3P Plug $59.95
|
|
29.2V 4A
|

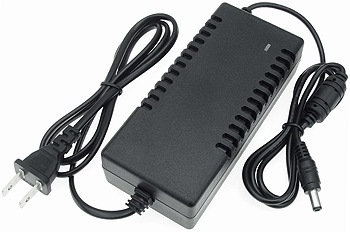

Battery Charger for 24 Volt LiFePO4 Batteries, 29.2V 4A Output
Battery charger for 24 Volt LiFePO4 batteries. Available with RCA plug, XLR
plug, or House plug output connector.
Input Power:
100-120VAC
Output Voltage: 29.2V (29.2 Volts)
Output
Amperage: 4A (4 Amps)
Item # CHR-24V4AL292
|
With Coaxial Plug $69.95
With RCA Plug$69.95
With XLR Plug $69.95
With House Plug $69.95
With 3P Plug $69.95
|
|
29.2V 5A
|
Battery Charger for 24 Volt LiFePO4 Batteries, 29.2V 5A Output
Battery charger for 24 Volt LiFePO4 batteries. Available with RCA
plug, XLR plug, or House plug output connector.Input Power:
100-120VAC
Output Voltage: 29.2V (29.2 Volts)
Output
Amperage: 5A (5 Amps)
Item # CHR-24V5AL292
|
With Coaxial Plug $99.95
With RCA Plug$99.95
With XLR Plug $99.95
With House Plug $99.95
With 3P Plug $99.95
|
|
29.2V 10A
|
Battery Charger for 24 Volt LiFePO4 Batteries, 29.2V 10A Output
Battery charger for 24 Volt LiFePO4 batteries. Available with Anderson PP45 output connector
plug.Input Power:
100-120VAC
Output Voltage: 29.2V (29.2 Volts)
Output
Amperage: 10A (10 Amps)
Item # CHR-24V10AL292
|
With PP45 Plug $119.95
|
29.4V Output
|
29.4V 1A
|
Battery Charger for 24 Volt Li-ion and LiPo Batteries, 29.4V 1A Output
Battery charger for 24 Volt Li-ion (Lithium ion) and LiPo (Lithium
Polymer) batteries. Available with several different
output connector plug options.
Input Power: 100-240VACOutput Voltage: 29.4V (29.4 Volts)
Output Amperage: 1A (1 Amps) Item # CHR-24V1AL294
|
With Coaxial Plug $19.95
With RCA Plug$24.95
With XLR Plug
$24.95
With House Plug
$24.95
With 3P Plug
$24.95
|
|

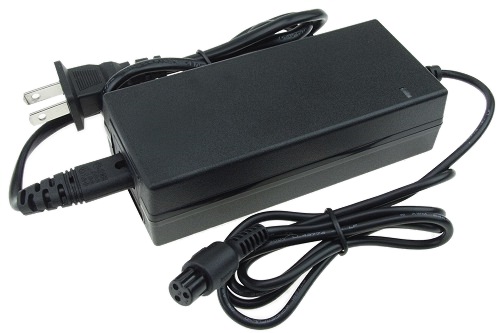

29.4V 2A
|

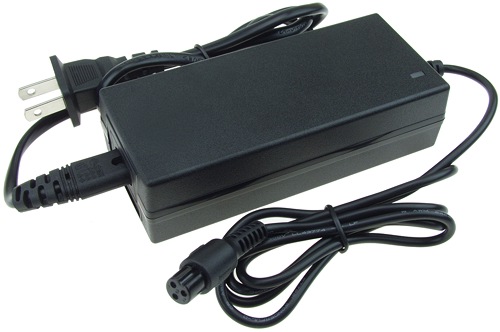

Battery Charger for 24 Volt Li-ion and LiPo Batteries, 29.4V 2A Output
Battery charger for 24 Volt Li-ion (Lithium ion) and LiPo (Lithium
Polymer) batteries with 3PS output connector plug. Compatible with Swagtron T5
and T580 plus many other makes and models.
Input Power: 100-240VACOutput Voltage: 29.4V (29.4 Volts)
Output Amperage: 2A (2 Amps) Item # CHR-24V2AL294-3PS
 |
With 3PS Plug
$49.95
|
|
29.4V 2A
|
Battery Charger for 24 Volt Li-ion and LiPo Batteries, 29.4V 2A Output
Battery charger for 24 Volt Li-ion (Lithium ion) and LiPo (Lithium
Polymer) batteries. Available with several different output connector plug options.
Input Power: 100-240VACOutput Voltage: 29.4V (29.4 Volts)
Output Amperage: 2A (2 Amps) Item # CHR-24V2AL294
|
With Coaxial Plug $49.95
With RCA Plug$49.95
With XLR Plug
$49.95
With House Plug
$49.95
With 3P Plug
$49.95
|
|
29.4V 4A
|
Battery Charger for 24 Volt Li-ion and LiPo Batteries, 29.4V 4A Output
Battery charger for 24 Volt Li-ion (Lithium ion) and LiPo (Lithium
Polymer) batteries. Available with several different output connector plug options.
Input Power: 100-240VACOutput Voltage: 29.4V (29.4 Volts)
Output Amperage: 4A (4 Amps) Item # CHR-24V4AL294
|
With Coaxial Plug $59.95
With RCA Plug$59.95
With XLR Plug
$59.95
With House Plug
$59.95
With 3P Plug
$59.95
|
42V Output
|
42V 1.5A
|

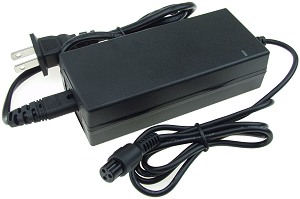

Battery Charger for 36 Volt Li-ion and LiPo Batteries, 42V 1.5A Output
42 Volt 1.5 Amp battery charger for 36 Volt Li-ion (Lithium Ion) and LiPo
(Lithium Polymer) batteries. Available with Coaxial and 3PS plug
output connectors.
Input Power: 100-240VAC
Output Voltage: 42V (42 Volts)
Output Amperage: 1.5A (1.5 Amps)
Item # CHR-36V1.5AL420
 |
With Coaxial Plug $29.95
With 3PS Plug
$29.95
|
|
42V 2A
|
Battery Charger for 36 Volt Li-ion and LiPo Batteries, 42V 2A Output
42 Volt 2 Amp battery charger for 36 Volt Li-ion (Lithium Ion) and LiPo
(Lithium Polymer) batteries. Available with RCA, XLR, House, 3P, or 3PS plug
output connector.
Input Power: 100-240VAC
Output Voltage: 42V (42 Volts)
Output Amperage: 2A (2 Amps)
Item # CHR-36V2AL420
|
With RCA Plug $29.95
With XLR Plug$29.95
With House Plug$29.95
With 3PS Plug
$24.95
With 3P Plug $29.95
|
|
42V 2A
|

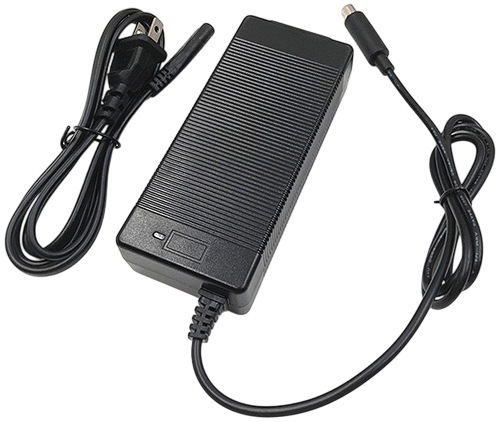

Battery Charger for Bird, Lime, and Xiaomi M365 Electric Scooters, 42V 2A Output
42 Volt 2 Amp battery charger for Bird, Lime, and Xiaomi Mijia (Mi) M365
electric scooters.
Input Power: 100-240VAC
Output Voltage: 42V (42 Volts)
Output Amperage: 2A (2 Amps)
Item # CHR-36V2AL420-BD
 |
$29.95
|
|
42V 2A
|

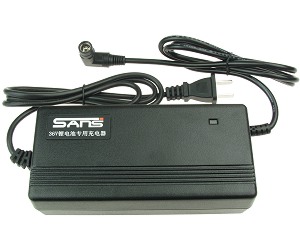

Battery Charger for 36 Volt Li-ion and LiPo Batteries, 42V 2A Output
Battery charger for 36 Volt Li-ion and LiPo batteries.
100-120VAC input power. Available with Coaxial plug, RCA plug, XLR plug, House plug, or 3P plug output
connector. Sans® brand charger.
Input Power: 100-120VAC
Output Voltage: 42V (42 Volts)
Output Amperage: 2A (2 Amps)
Item # CHR-36V2AL420B
|
With Coaxial Plug $49.95
With RCA Plug$49.95
With XLR Plug$49.95
With House Plug$49.95
With 3P Plug$49.95
|
|

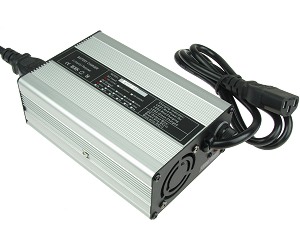

42V 2.5A
|
Battery Charger for 36 Volt Li-ion and LiPo Batteries, 42V 2A Output
Battery charger for 36 Volt Li-ion and LiPo batteries. 100-120VAC input power.
Available with RCA plug, XLR plug, or House plug output connector.
Input Power: 100-120VAC
Output Voltage: 42V (42 Volts)
Output Amperage: 2.5A (2.5 Amps)
Item # CHR-36V2.5AL420
|
With Coaxial Plug $89.95
With RCA Plug$89.95
With XLR Plug$89.95
With House Plug$89.95
With 3P Plug$89.95
|
|
42V 4A
|
Battery Charger for 36 Volt Li-ion and LiPo Batteries, 42V 4A Output
Battery charger for 36 Volt Li-ion and LiPo batteries. 100-120VAC input power.
Available with Coaxial plug, RCA plug, XLR plug, or House plug output connector.Input Power: 100-120VAC
Output Voltage: 42V (42 Volts)
Output Amperage: 4A (4 Amps)
Item # CHR-36V4AL420
|
With Coaxial Plug $99.95
With RCA Plug$99.95
With XLR Plug$99.95
With House Plug$99.95
|
43.8V Output
|
43.8V 2A
|
Battery Charger for 36 Volt LiFePO4 Batteries, 43.8V 2A Output
Battery charger for 36 Volt LiFePO4 batteries. 100-120VAC input power. Available
with Coaxial plug, RCA plug, XLR plug, or House plug output connector.Input Power: 100-240VAC
Output Voltage: 43.8V (43.8 Volts)
Output Amperage: 2A (2 Amps)
Item # CHR-36V2AL438P
|
With Coaxial Plug $59.95
With RCA Plug$59.95
With XLR Plug$59.95
With House Plug$59.95
|
|
43.8V 2A
|
Battery Charger for 36 Volt LiFePO4 Batteries, 43.8V 2A Output
Battery charger for 36 Volt LiFePO4 batteries. 100-120VAC input power. Available
with Coaxial plug, RCA plug, XLR plug, or House plug output connector.Input Power: 100-120VAC
Output Voltage: 43.8V (43.8 Volts)
Output Amperage: 2A (2 Amps)
Item # CHR-36V2AL438
|
With Coaxial Plug $89.95
With RCA Plug$89.95
With XLR Plug$89.95
With House Plug$89.95
|
|
43.8V 4A
|
Battery Charger for 36 Volt LiFePO4 Batteries, 43.8V 4A Output
Battery charger for 36 Volt LiFePO4 batteries.
100-120VAC input power. Available with Coaxial plug, RCA plug, XLR plug, or House
plug output connector.Input Power: 100-120VAC
Output Voltage: 43.8V (43.8 Volts)
Output Amperage: 4A (4 Amps)
Item # CHR-36V4AL438
|
With Coaxial Plug $99.95
With RCA Plug$99.95
With XLR Plug$99.95
With House Plug$99.95
|
|
43.8V 8A
|
Battery Charger for 36 Volt LiFePO4 Batteries, 43.8V 8A Output
Battery charger for 36 Volt LiFePO4 batteries. 100-120VAC input power. Available
with Anderson PP45 and House plug output connectors.Input Power: 100-120VAC
Output Voltage: 43.8V (43.8 Volts)
Output Amperage: 8A (8 Amps)
Item # CHR-36V8AL438
 |
With PP45 Plug $119.95
With House Plug $119.95
|
54.6V Output
|
54.6V 2A
|
Battery Charger for 48 Volt Li-ion and LiPo Batteries, 54.6V 2A Output
Battery charger for 48 Volt Li-ion and LiPo batteries.
100-120VAC input power. Available with RCA plug, XLR plug, or House plug output
connector.
Sans® brand charger.
Input Power:
100-120VAC
Output Voltage: 54.6V (54.6 Volts)
Output
Amperage: 2A (2 Amps)Item # CHR-48V2AL546
|
With Coaxial Plug $59.95
With RCA Plug$59.95
With XLR Plug$59.95
With 3P Plug$59.95
With House Plug$59.95
|
|
54.6V 4A
|
Battery Charger for 48 Volt Li-ion and LiPo Batteries. 54.6V 4A Output
Battery charger for 48 Volt Li-ion and LiPo batteries. 100-120VAC input power.
Available with Coaxial plug, RCA plug, XLR plug, or House plug output connector.
Input Power:
100-120VAC
Output Voltage: 54.6V (54.6 Volts)
Output
Amperage: 4A (4 Amps)
Item # CHR-48V4AL546
|
With Coaxial Plug $99.95
With RCA Plug$99.95
With XLR Plug$99.95
With House Plug$99.95
|
58.4V Output
|
58.4V 2A
|
Battery Charger for 48 Volt LiFePO4 Batteries, 58.4V 2A Output
Battery charger for 48 Volt LiFePO4 batteries. 100-120VAC input power. Available with
Coaxial plug, RCA plug, XLR plug, or House plug output connector.
Input Power: 100-120VAC
Output Voltage: 58.4V (58.4 Volts)
Output Amperage: 2A (2 Amps)
Item # CHR-48V2AL584
|
With Coaxial Plug $99.95
With RCA Plug$89.95
With XLR Plug$89.95
With House Plug$89.95
|
|
58.4V 4A
|
Battery Charger for 48 Volt LiFePO4 Batteries, 58.4V 4A Output
Battery charger for 48 Volt LiFePO4 batteries. 100-120VAC input power. Available
with Coaxial plug, RCA plug, XLR plug, or House plug output connector.
Input Power: 100-120VAC
Output Voltage: 58.4V (58.4 Volts)
Output Amperage: 4A (4 Amps)
Item # CHR-48V4AL584
|
With Coaxial Plug $99.95
With RCA Plug$99.95
With XLR Plug$99.95
With House Plug$99.95
|
|
58.4V 8A
|
Battery Charger for 48 Volt LiFePO4 Batteries, 58.4V 8A Output
Battery charger for 48 Volt LiFePO4 batteries. 100-120VAC input power.
Available with Anderson PP45 and House plug output connectors.
Input Power: 100-120VAC
Output Voltage: 58.4V (58.4 Volts)
Output Amperage: 8A (8 Amps)
Item # CHR-48V8AL584
|
With PP45 Plug $119.95
With House Plug $119.95
|
58.8V Output
|
58.8V 2A
|
Battery Charger for 48 Volt Li-ion and LiPo Batteries, 58.8V 2A Output
Battery charger for 48 Volt Li-ion and LiPo batteries. 100-120VAC input power. Available with
Coaxial plug, RCA plug, XLR plug, or House plug output connector.
Input Power: 100-120VAC
Output Voltage: 58.8V (58.8 Volts)
Output Amperage: 2A (2 Amps)
Item # CHR-48V2AL588
|
With Coaxial Plug $99.95
With RCA Plug$89.95
With XLR Plug$89.95
With House Plug$89.95
With 3P Plug$89.95
|
|
58.8V 4A
|
Battery Charger for 48 Volt Li-ion and LiPo Batteries, 58.8V 4A Output
Battery charger for 48 Volt Li-ion and LiPo batteries. 100-120VAC input power. Available
with Coaxial plug, RCA plug, XLR plug, or House plug output connector.
Input Power: 100-120VAC
Output Voltage: 58.8V (58.8 Volts)
Output Amperage: 4A (4 Amps)
Item # CHR-48V4AL588
|
With Coaxial Plug $99.95
With RCA Plug$99.95
With XLR Plug$99.95
With House Plug$99.95
|
|
58.8V 5A
|
Battery Charger for 48 Volt Li-ion and LiPo Batteries, 58.8V 5A Output
Battery charger for 48 Volt Li-ion and LiPo batteries. 100-120VAC input power. Available
with Coaxial plug, RCA plug, XLR plug, or House plug output connector.
Input Power: 100-120VAC
Output Voltage: 58.8V (58.8 Volts)
Output Amperage: 5A (5 Amps)
Item # CHR-48V5AL588
|
With Coaxial Plug $99.95
With RCA Plug$99.95
With XLR Plug$99.95
With House Plug$99.95
|
63.0V (63V) Output
|
63.0V 1A
|
Battery Charger for 60 Volt Li-ion and LiPo Batteries, 63.0V 1.1A Output
Battery charger for 60 Volt Li-ion and LiPo batteries.
100-240VAC input power. Available with 3PS plug or 4PS plug output
connector.
Input Power: 100-240VAC
Output Voltage: 63.0V (63.0 Volts)
Output Amperage: 1.1A (1.1 Amp) Item # CHR-60V1AL630
 |
With 3PS Plug $29.95
With 4PS Plug$29.95
|
67.2V Output
|
67.2V 2A
|
Battery Charger for 60 Volt Li-ion and LiPo Batteries, 67.2V 2A Output
Battery charger for 60 Volt Li-ion and LiPo batteries.
100-240VAC input power. Available with 3P plug, RCA plug, XLR plug, or House plug output
connector.
Input Power: 100-240VAC
Output Voltage: 67.2V (67.2 Volts)
Output Amperage: 2A (2 Amps) Item # CHR-60V2AL672
|
With Coaxial Plug $49.95
With RCA Plug$49.95
With XLR Plug$49.95
With House Plug$49.95
With 3P Plug$49.95
|
Chargers for Self Balancing Two Wheel Scooters
These type of scooters are often called a Smart Balance Wheel, Self Balancing
Electric Scooter, Self Balancing 2-Wheel Scooter, or Hoverboard.
|
Battery Charger for Self Balancing Two Wheel Scooters
Battery charger for self balancing two wheel electric scooters. 100-240VAC input
power. Output: 42V 2000mA
Voltage: 42V Output
Amperage: 2 Amps (2000mA)
Item # CHR-42V2A-LI-3PS |
With 3PS Plug
$24.95
|
Other LiFePO4 and Li-ion Battery Chargers
|

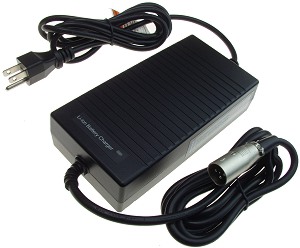

Battery Charger with XLR Plug for Diamondback Trace Electric Bicycle, 48V 2A Lithium
OEM battery charger for the Diamondback Trace electric bicycle. For Lithium
battery packs. 48V 2A output. 4-pin XLR plug with 3 thick outer pins and one
thin center pin.
Item # CHR-DBT-48V2A-LI-XLR |
$139.95
|
LiFePO4 and Li-ion Battery Charger Ports
|
|
3 Pin House Port with Dust Cover
House shaped (pc computer style) electric scooter and bike battery charger port with three pins and built-in rubber dust cover.
Three .187" quick connector or solder connection posts on back side of port.
Item # CNX-607 |
$4.95
|
|
|
3 Pin House
Charger Port with Dust Cover and Wiring Connector
House shaped (pc computer style) electric scooter and bike battery charger port with three pins and built-in protective dust cover. Wired with
two pin white wiring connector. Matching white wiring connector item #
CNX-50.
Item # CNX-611 |
$6.95
|
|
|

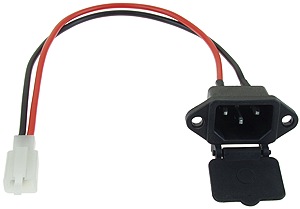

3 Pin House
Charger Port with Spring-Loaded Dust Cover and Wiring Connector
House shaped (pc computer style) electric scooter, moped, and bike battery charger port with three
vertical pins and spring-loaded protective dust cover. 10" long wires with
two pin white wiring connector. Matching wiring connector set item #
CNX-51.
Item # CNX-612 |
$6.95
|
|
|
3 Pin XLR
Charger Port with Dust Cover
Black nylon 3 pin XLR electric scooter/bike battery charger port
with dust cover. Cover swings out of the way for charging and covers port when
charging is complete. Solder connection posts on back side of connector.
Item # CNX-XLR05 |
$3.95
|
|
|
3 Pin XLR
Charger Port with Dust Cover
and Wires
Black nylon 3 pin XLR electric scooter/bike battery charger port
with dust cover and 12" of attached wire and two crimp connectors. Cover swings
out of the way for charging and covers port when charging is complete.
Item # CNX-XLR05W |
$6.95
|
|
|
RCA Battery Charger Port with
Dust Cover
RCA electric scooter/bike battery charger port
with dust cover. Commonly used for lithium battery powered electric scooters and
bikes. Cover swings out of the way for charging and covers port when
charging is complete. Solder connection posts on back side of connector.
Item # CNX-705 |
$3.95
|
|
|

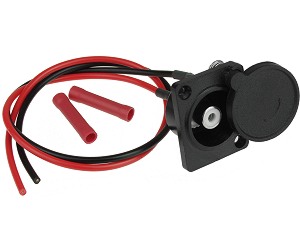

RCA Battery Charger Port with
Dust Cover
and Wires
RCA electric scooter/bike battery charger port
with dust cover and 12" of attached wire and two crimp connectors. Commonly used
for lithium battery powered electric scooters and bikes. Cover swings out of the
way for charging and covers port when charging is complete.
Item # CNX-705W |
$6.95
|
Battery Charger Connectors
 |
|
|
 |
2-Port Inline
Port 1 = Positive
Port 2 = Negative |
3-Port Inline
Port 1 = Positive
Port 3 = Negative |
3-Pin XLR
Pin 1 = Positive
Pin 2 = Negative |
4-Pin XLR
Pin 1 = Positive
Pin 2 = Negative |
|
|
|
 |
 |
3-Port House
Port N = Positive
Port L = Negative |
3-Port House for Panterra and Gio
Port N = Negative
Port L = Positive |
3-Pin House
Pin N = Positive
Pin L = Negative |
Polarized C7
Round = Positive
Square = Negative |
 |
|
 |
|
Coaxial
Inside = Positive
Outside = Negative |
RCA
Inside = Positive
Outside = Negative |
Polarized
Port = Positive
Pin = Negative |
|
Port and Pin Numbers: The port and
pin numbers are usually embossed or imprinted on the plug-in end of the battery charger connector. 2-Port Inline - 2-port inline connectors are used on some versions of Rad-2-Go and Zappy
scooters plus a handful of other Chinese-made electric scooter brands. 3-Port Inline - 3-port inline connectors are by far the most common type of battery
charger connectors used on electric scooters. They are used on most Chinese-made electric scooters and bikes including the
following brands: Razor, Rad-2-Go, Boreem, E-Scooter, Scoot-N-Go, Sunl, Terminator, X-Treme, plus many others. 3-Pin XLR - 3-pin XLR connectors are commonly used on 12 Volt, 24 Volt, and 36 Volt
electric scooters. They are used on the following scooter brands: eZip, IZIP, Currie, Schwinn, GT, Mongoose,
Lashout, Xcaliber, Bladez, E-Boarder, Tomb Raider plus many others. 4-Pin XLR - 4-pin XLR connectors are used on newer models of eZip and IZIP 24 Volt and
36 Volt electric scooters and bicycles. -
3-Port House - 3-port house connectors are used on a large number of 36 Volt, 48 Volt,
and 60 Volts electric scooters including Electra® Voy, Tao Tao, Baja, X-Treme, Rad-2-Go, EVT, and E-Road plus many other brands.
-
3-Port House for Panterra and Gio - 3-port house connectors for Panterra and Gio electric scooters have reverse
polarity from standard electric scooters.
-
3-Pin House - 3-pin house connectors are used on HCF Cute 002, Cute 301, and Cute 302 and electric scooters.
-
Polarized C7 - Polarized C7 connectors are used on the City Bug E2 and Razor 132E electric scooters.
-
Coaxial - Coaxial connectors are most commonly used on smaller child-sized 12 Volt and
24 Volt scooters including Pulse, Razor, E-Scooter plus many others.
-
RCA - RCA connectors are commonly used on 24
Volt, 36 Volt, and 48 Volt electric scooters and bicycles. They are used on both
lead acid battery and lithium battery chargers however the trend is for them to be used primarily on lithium battery charger.
-
Polarized - Polarized connectors are used on
some older model 12 Volt electric scooters. They are used on Zappy (Zap)
Classic electric scooters and bikes and Sunpex E-Boarder electric scooters.
|
|
