GT Scooter Parts > GT GT-500 Electric Scooter Parts

GT® GT-500 Electric Scooter Parts


GT GT-500 Electric Scooter

Battery Set for GT® GT-500 Electric Scooter
Set of two batteries for the GT ® GT-500 electric scooter. Includes 12 month battery replacement warranty.

Warranty Details
Item # GT-BATTERIES

$71.90

BAT-2410PK

CTE-B2410

CNX-BA0574

CNX-BA075

CHR-24V1.6AXLR

CHR-C24V1.5AXLR

CHR-C24V4AXLR

Main Wiring Harness for GT® GT-500 Electric Scooter
Main wiring harness with fuse for the GT® GT-500 electric scooter. Compatible with charger ports that have two wires. If your scooter has a charger port with three wires then purchase the CNX-XLR14 charger port sold below to use with this wiring harness.
Installation Directions
Item # CNX-BA05604

 $39.95


Charger Port for GT® GT-500 Electric Scooter
Battery charger port with two wires and two terminal connector for the GT® GT-500 electric scooter.
Item # CNX-XLR14

 $7.95


Charger Port for GT® GT-500 Electric Scooter
Black nylon 3 pin battery charger port with three wires and three terminal connector for the GT® GT-500 electric scooter.
Item # CNX-XLR16		 $7.95


Power Switch for GT® GT-500 Electric Scooter
On/Off power switch for the GT® GT-500 electric scooter.
Item # SWT-156		 $5.95


Power Switch for GT® GT-500 Electric Scooter
I/O power switch for the GT® GT-500 electric scooter.
Item # SWT-160		 $5.95

Fuse for GT® GT-500 Electric Scooter
Fuse for the GT® GT-500 electric scooter. Fuse rating: 40 Amp
Item # FUS-ATO40		 $.95


3 Wire Throttle with Female Connector for GT® GT-500 Electric Scooter
3 wire twist throttle with female connector for the GT® GT-500 electric scooters.
Item # THR-300
If the original throttle has a male connector then item # CTE-ADAPTER2 listed below will need to be purchased along with this throttle.
 $19.95


3 Wire Female to Male Throttle Connector Adapter for GT® GT-500 Electric Scooter
Throttle connector adapter for the GT® GT-500 electric scooter. Adapts 3-wire female throttle connector to fit 3-wire female speed controller connector.
Item # CTE-ADAPTER2		 $5.95


3 Wire Male to Female Throttle Connector Adapter for GT® GT-500 Electric Scooter
Throttle connector adapter for the GT® GT-500 electric scooter. Adapts 3-wire male throttle connector to fit 3-wire male speed controller connector.
Item # CTE-ADAPTER1		 $5.95


Speed Controller for GT® GT-500 Electric Scooter (For 3 Wire Throttle)
Replacement speed controller for GT® GT-500 electric scooters. 3 wire throttle connector. For throttles with female connector. If you have a throttle with male connector order item # SPD-SD300F sold below.
Item # SPD-SD300
Some scooters have controllers with 3 or 4 plugs instead of 5 plugs. This controller has 5 plugs however it replaces controllers with 3 or 4 plugs. The white plug with a single red wire and white plug with white and black wires going to it do not need to be plugged into anything in order for the controller to operate.
 $64.95


Speed Controller for GT® GT-500 Electric Scooter (For 3 Wire Throttle)
Replacement speed controller for GT® GT-500 electric scooters. 3 wire throttle connector. Includes adapter for throttles with male connector. Replaces CT-102C3 controllers.
Item # SPD-SD300F
Some scooters have controllers with 3 or 4 plugs instead of 5 plugs. This controller has 5 plugs however it replaces controllers with 3 or 4 plugs. The white plug with a single red wire and white plug with white and black wires going to it do not need to be plugged into anything in order for the controller to operate.
 $71.95


5-Wire Throttle for GT® GT-500 Electric Scooter
5-wire twist throttle with battery status indicator lights for GT® GT-500 electric scooter.
Item # THR-500		 $34.95




Speed Controller for GT® GT-500 Electric Scooter (For 5 Wire Throttle)
Speed controller with 5-wire throttle connector for the GT® GT-500 electric scooter.
Item # SPD-SD500		 $56.95




6-Wire Throttle for GT® GT-500 Electric Scooter
6-wire twist throttle with battery status indicator lights for GT® GT-500 electric scooter.
Item # THR-600		 $44.95


Thumb Throttle for GT® GT-500 Electric Scooter (No Indicator Lights)
Conversion thumb throttle with no battery status indicator lights for GT® GT-500 electric scooters. Converts twist throttle to thumb throttle. For controllers with 6-wire throttle connector.
Item # THR-600-3		 $34.95


Speed Controller for GT® GT-500 Electric Scooter (For 6 Wire Throttle)
Speed controller with 6-wire throttle connector for the GT® GT-500 electric scooter
Item # SPD-SD500-6		 $59.95


Motor with 11 Tooth Sprocket for GT® GT-500 Electric Scooter
Motor with 11 tooth sprocket for the GT® GT-500 electric scooter.
Item # MOT-SD156
Compare the shape or count the number of the teeth of the original motor's sprocket to determine if it has an 11 or 15 tooth sprocket.
 $99.95


Motor with 15 Tooth Freewheel Sprocket for GT® GT-500 Electric Scooter
Motor with 15 tooth freewheel sprocket for the GT® GT-500 electric scooter.

Item # MOT-SD156FW

Compare the shape or count the number of the teeth of the original motor's sprocket to determine if it has an 11 or 15 tooth sprocket.
 $99.95


12-1/2x3.0 V-Tread Tire for GT® GT-500 Electric Scooter
12-1/2"x 3.0" V-style tread pattern street tread tire for the GT® GT-500 electric scooter.
Item # TIR-1253		 $16.95


12-1/2x3.0 Knobby Tread Tire for GT® GT-500 Electric Scooter
12-1/2"x 3.0" knobby tread all-terrain tire for the GT® GT-500 electric scooter.
Item # TIR-1255		 $16.95


12-1/2x3.0 Tube With Bent Valve Stem for GT® GT-500 Electric Scooter
Inner tube with bent valve stem for the GT® GT-500 electric scooter.
Item # TUB-12.5X3.00		 $9.95


Fixed Motor Sprocket for GT® GT-500 Electric Scooter
11 tooth fixed motor sprocket for the GT® GT-500 electric scooter.
Item # SPR-2511PP
11 tooth fixed and 15 tooth freewheel motor sprockets are not interchangeable with each other. The motor sprocket must be replaced with the same one that is on the motor.
 $10.95


Freewheel Motor Sprocket for GT® GT-500 Electric Scooter
15 tooth freewheel motor sprocket for the GT® GT-500 electric scooter.
Item # SPR-2515F
15 tooth freewheel and 11 tooth fixed motor sprockets are not interchangeable with each other. The motor sprocket must be replaced with the same one that is on the motor.
 $24.95

98-LINK-25-CHAINS

SPR-2589F

SPR-2590

Brake Lever for GT® GT-500 Electric Scooter
Original style brake lever for the GT® GT-500 electric scooter.
Item # LEV-32		 $14.95

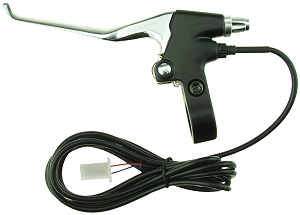

Brake Lever for GT® GT-500 Electric Scooter
Aluminum alloy brake lever for the GT® GT-500 electric scooter.
Item # LEV-23L		 $17.95


Rear Brake Cable for GT® GT-500 Electric Scooter
 Rear brake cable for the GT® GT-500 electric scooter.
Item # CBL-101		 $3.95


Rear Brake for GT® GT-500 Electric Scooter
Rear band brake for the GT® GT-500 electric scooter. Chrome plated finish.
Item # BRK-90C		 $13.95


Rear Brake for GT® GT-500 Electric Scooter
Rear band brake for the GT® GT-500 electric scooter. Black enamel finish.
Item # BRK-90B		 $13.95


Band Brake Mounting Hardware for GT® GT-500 Electric Scooter
Band brake mounting hardware for GT® GT-500 electric scooter.
Item # HDW-188		 $3.95


Brake Cable Pinch Bolt for GT® GT-500 Electric Scooter
Brake cable pinch bolt for GT® GT-500 electric scooter.
Item # BRK-226		 $.95


Wheel Bearing for GT® GT-500 Electric Scooter
Wheel bearing for GT® GT-500 front and rear wheels.
Size: 12mm ID, 28mm OD, 8mm wide.
Item # BRG-6000Z		 $2.95

CURRIE-AXLEHARDWARE

CURRIE-SEATPOSTS

CURRIE-SEATS

Folding Handlebars for GT® GT-500 Electric Scooter
Folding handlebars with mounting hardware for the GT® GT-500 electric scooter.
Item # CTE-HANDLEBARS		 $39.95


Handlebar Tightening Bolt And Wedge for GT® GT-500 Electric Scooter
Handlebar tightening bolt and wedge for the GT® GT-500 electric scooter.
Item # HDW-350		 $10.95


Handlebar Quick-Release Mechanism for GT® GT-500 Electric Scooter
Folding handlebar quick-release mechanism for the GT® GT-500 electric scooter.
Item # CTE-QRM		 $6.95


Motor Guard for GT® GT-500 Electric Scooter
Motor guard protector for GT® GT-500 electric scooter.
Item # CTE-MOTORGUARD		 $14.95

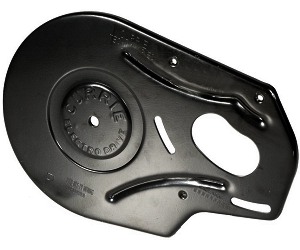

Motor Plate for GT® GT-500 Electric Scooter
Motor plate for GT® GT-500 electric scooter.
Item # CTE-MOTORPLATE		 $32.95


Handlebar Grip Set for GT® GT-500 Electric Scooter
Handlebar grip set for the GT® GT-500 electric scooter.
Item # GRP-55SET		 $4.95


Front Wheel for GT® GT-500 Electric Scooter
Front wheel with bearings and axle for the GT® GT-500 electric scooter.
Item # WHL-WH12F003A		 $29.95


Rear Wheel for GT® GT-500 Electric Scooter
Rear wheel with bearings and axle for the GT® GT-500 electric scooter.
Item # WHL-1048		 $49.95




Rear Wheel Assembly for GT® GT-500 Electric Scooter
Rear wheel with tire, tube, sprocket, brake, bearings, and axle for the GT® GT-500 electric scooter.
Item # WHL-WH91611		 $59.95

LIT-140

LIT-53LED

LIT-600

REF-150

REF-155

REF-160

BEL-300

BEL-360

VXT-160

VXT-714

GSL-4OZ

TIR-SL8


"When you need Electric Scooter Parts, go to: ElectricScooterParts.com"



Store Polices | Electric Scooter Repair Help | Dealer Discounts | Feedback | About Us



Electric Scooter Parts has a large variety of scooter parts and accessories available for the Currie GT GT-500 electric scooter. The GT-500 electric scooter is a 24 Volt electric scooter which uses two 12 Volt sealed lead-acid batteries to produce 24 Volts. The Gt-500 is a full sized stand up or sit down electric scooter with 12-1/2" wheels and a large stand-on deck. the Currie GT GT-500 electric scooter has folding handlebars and the battery pack is removable for winter storage or off-scooter battery charging. During wintertime when the scooter is not in use we recommend charging the battery pack every month to prevent battery damage. For more information on proper battery care go please visit our batteries page. We stock a wide variety of parts for the GT-500 electric scooter such as battery packs, batteries, battery chargers, switches, fuses, throttles, speed controllers/control modules, tires, tubes, chain, sprockets, seats, seat posts, and more. If you need help diagnosing a problem with your GT GT-500 electric scooter we recommend visiting our troubleshooting page.
