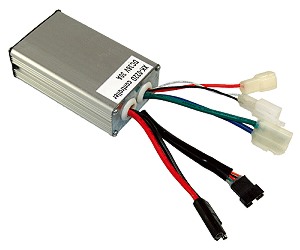

Speed Controller SPD-36750A Installation and Wiring

Rated Voltage   36 Volts
Rated For Motors   Up To 750 Watts
Maximum Current   30 Amps
Rated For Chargers   Up To 3 Amps
Conversion Efficiency   95%
Under Voltage Protection   31 Volts
Recommended Fuse Size  35 Amps
Under Voltage Battery Protection: When the battery pack falls below a specific Voltage the controller turns the motor off preventing over discharging of the battery pack which extends the battery packs lifespan. (The cutoff value is approximately 31.0 Volts ± 1.0 Volts)
Motor Cut-Off During Braking: When the brakes are applied the brake switch signals the controller to turn off the motor. This feature is optional. To disable leave brake lever switch connector unplugged.

*Power Connector
Red = Positive
Black = Negative

Mating Connector Item # CNX-2PX2


Required Connection

Motor Connector
Blue = Positive
Green = Negative
Mating Connector Item # CNX-50

Required Connection

Throttle/Battery Gauge Connector
Throttle = Red, Black, Green
Battery Gauge = Orange, Grey

Mating Connector Item # CNX-65


Throttle is Required Connection
~Battery Gauge is Optional Connection

Brake Lever Switch Connector

Mating Connector Item # CNX-51


~Optional Connection
Battery Charger Connector

Connects to positive lead of battery charger port and disables motor when the battery pack is being recharged.

Mating Connector Item # CNX-45


~Optional Connection
*The power connector should be the last connection made.
*Fuse or circuit breaker protection is required between speed controller and battery pack.
~Optional Connections do not need to be hooked up for the speed controller to operate.
