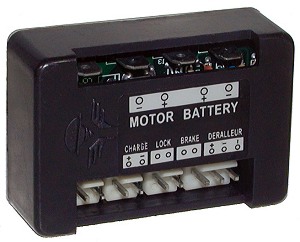

Speed Controller SPD-24180 Installation and Wiring

Rated Voltage  24 Volts
Rated For Motors  Up To 180 Watts
Maximum Current  15 Amps
Rated For Chargers  Up To 1.6 Amps
Conversion Efficiency  95%
Under Voltage Protection  20.5 Volts
Recommended Fuse Size  20 Amps
Under Voltage Battery Protection: When the battery pack falls below a specific Voltage the controller turns the motor off preventing over discharging of the battery pack which extends the battery packs lifespan. (The cutoff value is approximately 20.5 Volts ± 1.0 Volts)
Motor Cut-Off During Braking: When the brakes are engaged the brake switch signals the controller to turn off the motor.

*The battery pack should be the last connection made.
*Fuse or circuit breaker protection is required between the speed controller and the battery pack.
