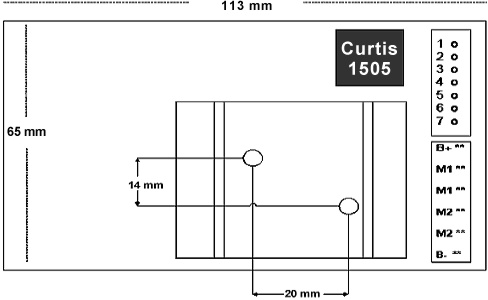

Curtis 1505 Speed Controller Installation and Wiring

CURTIS MODEL

VOLTAGE

1 MIN. RATING

CONTINUOUS RATING

TYPICAL VOLTAGE DROP AT 20A

UNDER VOLTAGE

1505

24 Volts

80 Amps

20 Amps

.40 Volts

18 Volts


- Controls the speed of one or two electric motors.
- Requires a minimum of 18 Volts DC to operate.
- Requires a 5k Ohm throttle or potentiometer.
- Complete all wiring connections before to hooking up the battery pack.
- The key switch circuit must be "on" for controller to operate.
- The EPO circuit is optional. If installed the EPO circuit must be "off" for the controller to operate.

The Curtis 1505 has been unavailable since 2006 and it is no longer in production.
