Battery Charger Connectors > House Battery Charger Connectors

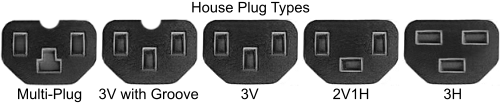

Inline XLR House Clover Coaxial RCA

House Battery Charger Connectors



3 Port House Charger Plug
House shaped battery charger plug with three vertical ports and groove (3V with Groove). Replaces plugs that have a groove and which do not have a groove (example). Ring terminal crimp connectors or solder post connectors inside of plug.
Item # CNX-601

$4.95


3 Pin House Charger Plug
House shaped battery charger plug with three vertical pins (3V). Ring terminal crimp connector or solder posts inside of plug.
Item # CNX-602

$4.95


3 Port House Charger Plug with Cable
House shaped battery charger plug with three ports. Works with house plug charger ports that have three vertical pins (3V) or two vertical pins and one horizontal pin (2V1H) plus replaces plugs that do not have a groove (example). 32" long cable with strain relief and two 22 gauge wires.
Item # CNX-603

$4.95


3 Port House Charger Plug with Cable
House shaped battery charger plug with three ports. Works with house plug charger ports that have three horizontal pins (3H). 32" long cable with strain relief and two 22 gauge wires.
Item # CNX-631

$4.95


2 Pin House Charger Plug with Cable
House shaped battery charger plug with two vertical pins. Works with house plug charger ports that have three vertical pins (3V) or two vertical pins and one horizontal pin (2V1H). Replaces most 3 pin house charger plugs because the middle pin is rarely used. 32" long cable with strain relief and two 22 gauge wires.
Item # CNX-604

$4.95


3 Pin House Charger Port Cover
Rubber cover for house charger ports. Protects charger ports from dust, dirt, and moisture intrusion.
Item # CNX-600

$1.95




3 Pin House Charger Port
House shaped battery charger port with three vertical pins (3V). Three .187" (3/16") wide blade terminals on back side of charger port can be used with push-on connectors or wires can be soldered directly onto them.
Item # CNX-605

$4.95




3 Pin House Charger Port with Dust Cover
House shaped battery charger port with three vertical pins (3V). Includes attached rubber dust cover that covers the port when it is not in use. Three .187" (3/16") blade terminals on back side of charger port can be used with push-on connectors or the wires can be soldered directly onto them.
Item # CNX-607

$4.95



3 Pin House Port with Spring-Loaded Dust Cover
House shaped battery charger port with three vertical pins (3V). Built-in spring-loaded dust cover. Dust cover automatically closes when charger plug is removed. Three .187" (3/16") blade terminals on back side of charger port can be used with push-on connectors or the wires can be soldered directly onto them.
Item # CNX-609

$4.95




3 Pin House Charger Port with 2 Vertical and 1 Horizontal Pins
House shaped battery charger port with two vertical and one horizontal pins (2V1H). Three .187" (3/16") blade terminals on back side of charger port can be used with push-on connectors or the wires can be soldered directly onto them.
Item # CNX-620

$4.95




3 Pin House Charger Port
House shaped battery charger port with three horizontal pins (3H). Three .187" (3/16") wide blade terminals on back side of charger port can be used with push-on connectors or wires can be soldered directly onto them.
Item # CNX-635

$4.95



3 Port House Charger Port
House shaped battery charger port with three vertical ports (3V). Three .187" (3/16") blade terminals on back side of charger port can be used with push-on connectors or the wires can be soldered directly onto them.
Item # CNX-641

$4.95


3 Pin House Charger Port with Rubber Dust Cover and Wiring Connector
House shaped battery charger port with three vertical pins (3V) and attached rubber dust cover. 10" long wires with two 6.3mm female terminal white wiring connector. Matching wire connector set item # CNX-50.
Item # CNX-610

$6.95

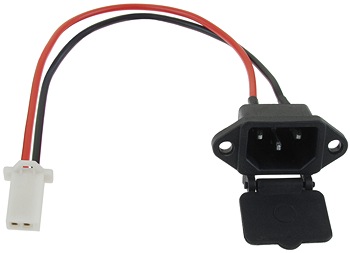

3 Pin House Charger Port with Spring-Loaded Dust Cover and Wiring Connector
House shaped battery charger port with three vertical pins (3V). Built-in spring-loaded protective dust cover. 10" long wires with two 2.8mm female terminal white wire connector. Matching wiring connector set item # CNX-51.
Item # CNX-611

$6.95

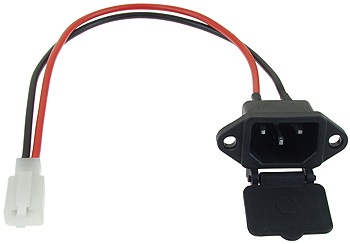

3 Pin House Charger Port with Spring-Loaded Dust Cover and Wiring Connector
House shaped battery charger port with three vertical pins (3V). Built-in spring-loaded protective dust cover. 10" long wires with two 2.8mm male terminal white wire connector. Matching wiring connector set item # CNX-51.
Item # CNX-612

$6.95

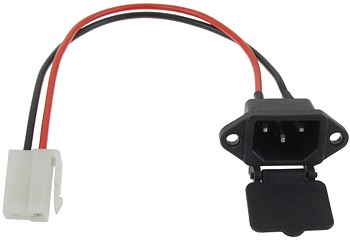

3 Pin House Charger Port with Spring-Loaded Dust Cover and Wiring Connector
House shaped battery charger port with three vertical pins (3V). Built-in spring-loaded protective dust cover. 10" long wires with two 6.3mm female terminal white wire connector. Matching wiring connector set item # CNX-50.
Item # CNX-613

$6.95


3 Pin House Charger Port with Spring-Loaded Dust Cover and Wiring Connector
House shaped battery charger port with three vertical pins (3V). Built-in spring-loaded protective dust cover. 10" long wires with two 6.3mm male terminal white wire connector. Matching wiring connector set item # CNX-50.
Item # CNX-614

$6.95


3 Pin House Charger Port or Power Port with Wires and Ring Terminals
House shaped battery charger or power port with three vertical pins (3V). Two 7" long 14 AWG wires with 5.3mm ID ring terminals. Due to its heavy-gauge wires this port is suitable as a power port and/or a charger port.
Item # CNX-615

$6.95


3 Pin House Charger Port or Power Port with 2 Vertical and 1 Horizontal Pins plus Wires and Ring Terminals
House shaped battery charger or power port with two vertical and one horizontal pins (2V1H). Two 7" long 14 AWG wires with 5.3mm ID ring terminals. Due to its heavy-gauge wires this port is suitable as a power port and/or a charger port.
Item # CNX-625

$6.95


3 Pin House Charger Port or Power Port with Wires, Fuse Holder, and Ring Terminals
House shaped battery charger or power port with three vertical pins (3V). 14 AWG wire with 5.2mm ID ring terminals. Fuse holder for ATO fuses (30A fuse included). Red wire is 500mm (19.6") long and black wire is 300mm (11.8") long. Due to its 14 gauge wires this port is suitable as a power port and/or a charger port for many vehicle makes and models.
Item # CNX-618

$10.95


3 Prong XLR Charger Plug to 3 Port House Plug Battery Charger Adapter
Battery charger plug adapter. Converts standard 3 prong XLR plug into a standard 3 vertical port (3V) House plug.
Item # CNX-24505

$9.95


House Charger Plug to 3P Plug Battery Charger Adapter
Battery charger plug adapter for electric scooters and bicycles. Converts standard 3 port house plug into a standard 3 port 3P plug.
Item # CNX-24520

$9.95


House Charger Plug to XLR Plug Battery Charger Adapter
Battery charger plug adapter for electric scooters and bicycles. Converts standard 3 port house plug into a standard 3 prong XLR plug.
Item # CNX-24521

$9.95


2 Port or 3 Port House Charger Plug to 3 Port Clover Plug Battery Charger Adapter
Battery charger plug adapter. Converts 2 vertical port (2V). 3 vertical port (3V), or 2 vertical and 1 horizontal port (2V1H) House plug into a 3 port Clover plug.
Item # CNX-24523

$9.95


2 Port or 3 Port House Charger Plug to 3 Horizontal Port House Plug Battery Charger Adapter
Battery charger plug adapter. Converts 2 vertical port (2V). 3 vertical port (3V), or 2 vertical and 1 horizontal port (2V1H) House plug into a 3 horizontal port House plug.
Item # CNX-24526

$9.95


3 Port House Charger Plug to RCA Plug Battery Charger Adapter
Battery charger plug adapter. Converts 3 vertical port House plug into an RCA plug.
Item # CNX-24527

$9.95


2 Port or 3 Port House Charger Plug to 5.5mm x 2.1mm Coaxial Plug Battery Charger Adapter
Battery charger plug adapter. Converts 2 vertical port (2V). 3 vertical port (3V), or 2 vertical and 1 horizontal port (2V1H) House plug into a 5.5mm x 2.1mm coaxial plug.
Item # CNX-24530

$9.95


2 Port or 3 Port House Charger Plug to 5.5mm x 2.5mm Coaxial Plug Battery Charger Adapter
Battery charger plug adapter. Converts 2 vertical port (2V). 3 vertical port (3V), or 2 vertical and 1 horizontal port (2V1H) House plug into a 5.5mm x 2.5mm coaxial plug.
Item # CNX-24532

$9.95


2 Port or 3 Port House Charger Plug to R3 Plug Battery Charger Adapter
Battery charger plug adapter. Converts 2 vertical port (2V). 3 vertical port (3V), or 2 vertical and 1 horizontal port (2V1H) House plug into an R3 plug.
Item # CNX-24605

$9.95


3 Port House Plug (Multi-Plug) to 3 Pin House Plug (Multi-Plug) Battery Charger Adapter
Converts multiple styles of house plugs with ports to multiple styles of house plugs with pins. See photo of adapter for the plug terminal wiring polarity.
Item # CNX-24514

$9.95

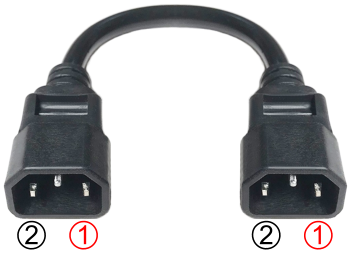

3 Port House Plug to 3 Pin House Plug Battery Charger Adapter
Battery charger plug adapter. Converts 3 vertical port (3V) House plug into a 3 vertical pin (3V)House plug.
Item # CNX-24515

$9.95


3 Pin House Plug to 3 Pin House Plug Reverse Polarity Battery Charger Adapter
Battery charger output plug polarity reversing adapter. Reverses battery charger plug polarity of 3 vertical port (3V) House plugs.
Item # CNX-24516

$9.95
