Relays > Power Contactors

Power Contactors

A power contactor is a large and powerful high current relay. Power contactors are often referred to simply as contactors.



24 Volt 150 Amp Power Contactor
24V DC 150A continuous duty SPST power contactor. Normally open contacts rated at 150 Amps continuous duty. Coil power consumption 8 Watts. Two 6mm contacts mounting posts work with 1/4" ring terminals and two 4mm coil mounting posts work with #8 ring terminals. Mounting posts include flat washers, lock washers, and nuts. 2-7/16" wide steel mounting plate on back of solenoid with two 6mm (1/4") diameter mounting holes spaced 1-13/16" apart from center to center. All of our key switches, power switches, and handlebar switches can operate the coil of this contactor. Dimensions: 3-1/4" high x 2-9/16" wide x 2" deep
Item # RLY-24150
Wiring Diagram:
PDF
$19.95

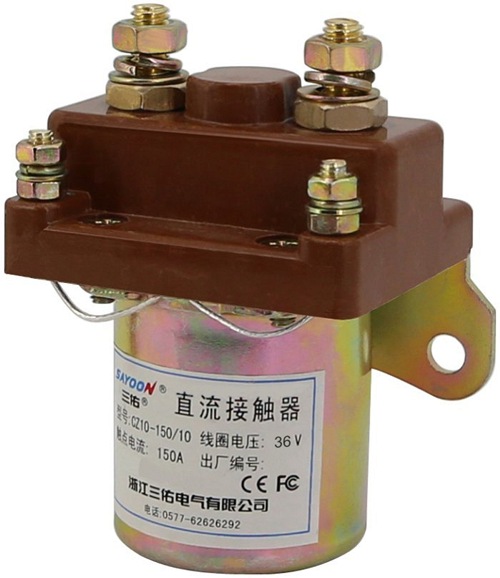

36 Volt 150 Amp Power Contactor
36V DC 150A continuous duty SPST power contactor. Normally open contacts rated at 150 Amps continuous duty. Coil power consumption 8 Watts. Two 6mm contacts mounting posts work with 1/4" ring terminals and two 4mm coil mounting posts work with #8 ring terminals. Mounting posts include flat washers, lock washers, and nuts. 2-7/16" wide steel mounting plate on back of solenoid with two 6mm (1/4") diameter mounting holes spaced 1-13/16" apart from center to center. All of our key switches, power switches, and handlebar switches can operate the coil of this contactor. Dimensions: 3-1/4" high x 2-9/16" wide x 2" deep
Item # RLY-36150
Wiring Diagram:
PDF
$19.95

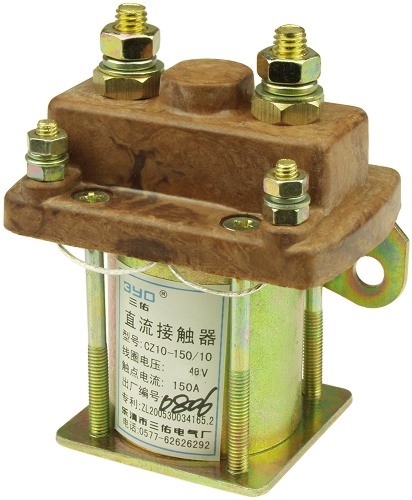

48 Volt 150 Amp Power Contactor
48V DC 150A continuous duty SPST power contactor. Normally open contacts rated at 150 Amps continuous duty. Coil power consumption 8 Watts. Two 6mm contacts mounting posts work with 1/4" ring terminals and two 4mm coil mounting posts work with #8 ring terminals. Mounting posts include flat washers, lock washers, and nuts. 2-7/16" wide steel mounting plate on back of solenoid with two 6mm (1/4") diameter mounting holes spaced 1-13/16" apart from center to center. All of our key switches, power switches, and handlebar switches can operate the coil of this contactor. Dimensions: 3-1/4" high x 2-9/16" wide x 2" deep
Item # RLY-48150
Wiring Diagram:
PDF
$19.95


60 Volt 150 Amp Power Contactor
60V DC 150A continuous duty SPST power contactor. Normally open contacts rated at 150 Amps continuous duty. Coil power consumption 8 Watts. Two 6mm contacts mounting posts work with 1/4" ring terminals and two 4mm coil mounting posts work with #8 ring terminals. Mounting posts include flat washers, lock washers, and nuts. 2-7/16" wide steel mounting plate on back of solenoid with two 6mm (1/4") diameter mounting holes spaced 1-13/16" apart from center to center. All of our key switches, power switches, and handlebar switches can operate the coil of this contactor. Dimensions: 3-1/4" high x 2-9/16" wide x 2" deep
Item # RLY-60150
Wiring Diagram:
PDF
$19.95

Order Online or Phone Toll-Free

1-800-908-8082





"When you need Electric Scooter Parts, go to: ElectricScooterParts.com"



Store Polices | Electric Scooter Repair Help | Dealer Discounts | Feedback | About Us



We carry power contactors for electric scooters, electric mopeds, electric bicycles, electric pocket bikes, electric go karts and all other types of small electric vehicles.
