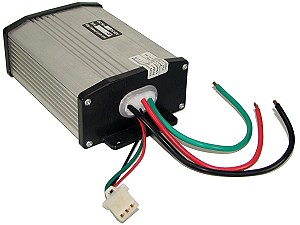

Speed Controller SPD-361000 Installation and Wiring

Rated Voltage   36 Volts
Rated For Motors   Up To 1000 Watts
Maximum Current   40 Amps
Conversion Efficiency   95%
Under Voltage Protection   30.5 Volts
Recommended Fuse/Circuit Breaker Size   50 Amps
Dimensions   6" x 4" x 2"

*Power Connector
Red = Positive
Black = Negative


10 Gauge Stranded Copper Wire


Required Connection

Motor Connector
Red = Positive
Blue = Negative


10 Gauge Stranded Copper Wire


Required Connection

Throttle Connector
 Red = + 5 Volts Output
Black = Negative
Green = 1-4 Volts Input


Mating Connector Item # CNX-52
Required Connection
Brake Lever Connector
Wires Disconnected = Motor On
Wires Connected = Motor Off


Mating Connector Item # CNX-51
Optional Connection
*The battery pack should be the last connection made.
*Fuse or circuit breaker protection and power switch or power relay are required to be installed between the speed controller and the battery pack.
*Power switch/relay and fuse/circuit breaker connects to the red wire between the speed controller and battery pack. The fuse/circuit breaker should be as close to the battery pack as possible.
*The two thick red wires are connected together inside of the controller so it does not matter which thick red wires go to the battery pack or motor.
**Requires standard 3-wire throttle to operate.
