Bearings > Headset Bearings

Headset Bearings

Browse for headset bearings by vehicle make and model.

Headset inch measurements are rounded to the nearest fraction and millimeter measurements are exact.

1-5/8" OD Headset Cup and Bearing Sets


1-5/8" OD Headset Cup and Bearing Set
Electric scooter and bicycle front forks headset bearing set with black enamel finish.
For 13/16" (21.15mm) OD handlebar quill stem.
For 7/8" (22.2mm) ID handlebar steering column.
For 7/8" (22.2mm) OD front fork steerer tube.
Cup Seats: 1-3/16" (30mm) OD
Top and Bottom Cups:1-5/8" (41mm) OD, 1-1/2" (38mm) ID
More Information

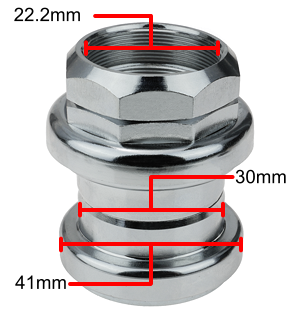

Bearing Dimensions
Item # BRG-158B
$9.95


1-5/8" OD Headset Cup and Bearing Set
Electric scooter and bicycle front forks headset bearing set with chrome plated finish.
For 13/16" (21.15mm) OD handlebar quill stem.
For 7/8" (22.2mm) ID handlebar steering column.

For 7/8" (22.2mm) OD front fork steerer tube.
Cup Seats: 1-3/16" (30mm) OD
Top and Bottom Cups: 1-5/8" (41mm) OD, 1-1/2" (38mm) ID
More Information
Bearing Dimensions
Item # BRG-158C

$11.95


1-1/2" OD Headset Bearing
Electric scooter and bicycle front forks headset bearing. Replacement headset bearing for 1-5/8" OD headset cups.
For 1-5/8" OD headset cups.
Outside Diameter: 1-1/2" (38mm)
Inside Diameter: 1-3/16" (30mm)
Item # BRG-158
$2.95

1-3/4" OD Headset Cup and Bearing Sets


1-3/4" OD Headset Cup and Bearing Set
Electric scooter and bicycle front forks headset bearing set with chrome plated finish.
For 1" (25.4mm) OD handlebar quill stem.
For 1-1/8" (28.6mm) ID handlebar steering column.
For 1-1/8" (28.6mm) OD front fork steerer tube.
Cup Seats: 1-3/8" (34mm) OD
Top and Bottom Cups: 1-3/4" (44mm) OD, 1-9/16" (40mm) ID
More Information

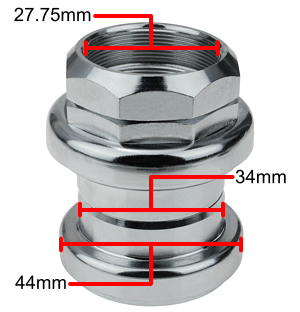

Bearing Dimensions
Item # BRG-134C
$11.95


1-9/16" OD Headset Bearing
Electric scooter and bicycle front forks headset bearing. Replacement bearing for 1-3/4" OD headset cups.
For 1-3/4" OD headset cups.
Outside Diameter: 1-9/16" (40mm)
Inside Diameter: 1-3/8" (34mm)
Item # BRG-134
$2.95

1-7/8" OD Headset Cup and Bearing Sets

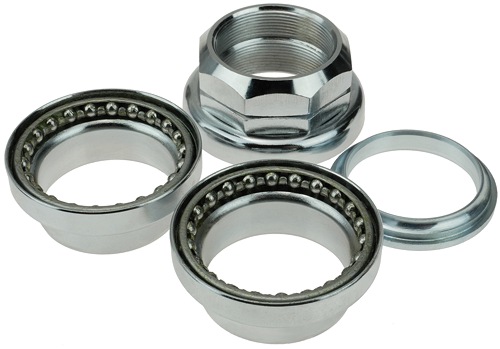

1-7/8" OD Headset Cup and Bearing Set
Electric scooter, bike, and moped front forks headset bearing set with chrome plated finish.
For 1-1/8" (28.6mm) OD handlebar quill stem.
For 1-1/4" (31.8mm) ID handlebar steering column.
For 1-1/4" (31.8mm) OD front fork steerer tube.
Cup Seats: 1-7/16" (36.8mm) OD
Top and Bottom Cups: 1-7/8" (47mm) OD, 1-11/16" (43mm) ID
More Information

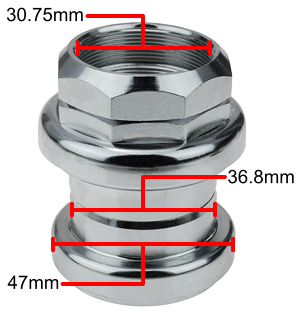

Bearing Dimensions
Item # BRG-178C
$15.95
